760250808 | 20" 4G and mmWave base - 68" Tall Base

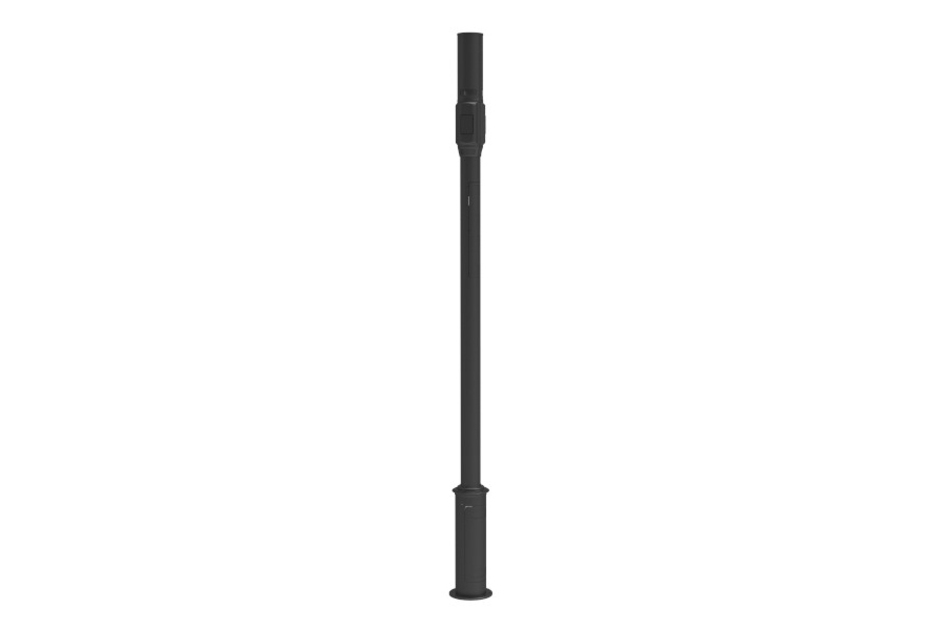

Round 20 inch diameter by 68" Tall, Integrated Pole Base Concealment Pole for 4G/5G deployments, to house and conceal multiple radios and any other wireless infrastructure equipment in the base of the pole.
Features and benefits
Meets City of Denver and surrounding area standards
Available with:
-Round Straight 10.75" shaft (default configuration)
-Round Straight 12.75" Integrated Shaft with space for additional equipment
Utilizes Milbank meter can "U4801-XC-5T9"
Available with:
-Round Straight 10.75" shaft (default configuration)
-Round Straight 12.75" Integrated Shaft with space for additional equipment
Utilizes Milbank meter can "U4801-XC-5T9"
- Intended to house and conceal multiple radios and any other wireless infrastructure equipment in a cabinet at the base of the pole
- Includes everything needed for a low to mid power 4G/5G outdoor small cell site
- Concealment integrates AC load load center/OVP and disconnect
Specifications
Product classification
| Product Type | Integrated pole |
| Product Brand | Metro Cell |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Antenna Compatibility, ANDREW | ANDREW Canister Antennas |
| Antenna Compatibility, Other Vendors | ACE | AMPHENOL | GALTRONICS | GAMMA NU | JMA | KATHREIN | KMW | ROSENBERGER | mmWave active antennas |
| Antennas Included | None |
| Color | Light Gray (RAL 7035) |
| Color Options | Beige-Grey (RAL 7006) | Black (RAL 9005) | Black Green (RAL 6012) | Brown (RAL 8014) | Faux Concrete | Green (RAL 6005) | Metallic Silver | Umbra Grey (RAL 7022) |
| Compatible Foundation Type | Poured Concrete | Pre-Cast Concrete |
| Compatible Smart Devices | Cameras | Digital Signage | Emergency Call Station | Environmental Monitoring | Security Lighting | WIFI |
| Cooling | Fan Cooling |
| Power Supply Compatibility | ABB CC1600 | DELTA 2.0 | FPAE | PSU-AC-08 |
| Radio Compatibility, Ericsson | 1281 | 220x | 440x | 4449 | 4455 | 6701 | 8843 | Diplexer | Power Distribution |
| Radio Compatibility, Nokia | AHFIA | AHFIB | AHIA | AHIB | AHLBA | AHLBBA | AZRB | Airscale micro | Diplexer | Power Distribution | Up to (4) AirScale micro radios |
| Radios Included | None |
Dimensions
| Height | 1727.200 mm | 68 in |
| Pole Height Options | 6.096 m | 20 ft | 7.62 m | 25 ft | 9.144 m | 30 ft | 10.668 m | 35 ft | 12.192 m | 40 ft |
| Width | 508.000 mm | 20 in |
| Depth | 508.000 mm | 20 in |
| Depth Note | Round |
Electrical specifications
| Power/Fiber Input | AC load center with OVP and disconnect |
| Voltage | 120 Vac | 240 Vac |
Material specifications
| Finish Aluminum | Chromate |
| Finish Concealment Covers | Powder coated |
| Material Type | Galvanized steel | Steel |
Environmental specifications
| Thermal Compliance | GR-487 |
Product classification
| Product Type | Integrated pole |
| Product Brand | Metro Cell |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Antenna Compatibility, ANDREW | ANDREW Canister Antennas |
| Antenna Compatibility, Other Vendors | ACE | AMPHENOL | GALTRONICS | GAMMA NU | JMA | KATHREIN | KMW | ROSENBERGER | mmWave active antennas |
| Antennas Included | None |
| Color | Light Gray (RAL 7035) |
| Color Options | Beige-Grey (RAL 7006) | Black (RAL 9005) | Black Green (RAL 6012) | Brown (RAL 8014) | Faux Concrete | Green (RAL 6005) | Metallic Silver | Umbra Grey (RAL 7022) |
| Compatible Foundation Type | Poured Concrete | Pre-Cast Concrete |
| Compatible Smart Devices | Cameras | Digital Signage | Emergency Call Station | Environmental Monitoring | Security Lighting | WIFI |
| Cooling | Fan Cooling |
| Power Supply Compatibility | ABB CC1600 | DELTA 2.0 | FPAE | PSU-AC-08 |
| Radio Compatibility, Ericsson | 1281 | 220x | 440x | 4449 | 4455 | 6701 | 8843 | Diplexer | Power Distribution |
| Radio Compatibility, Nokia | AHFIA | AHFIB | AHIA | AHIB | AHLBA | AHLBBA | AZRB | Airscale micro | Diplexer | Power Distribution | Up to (4) AirScale micro radios |
| Radios Included | None |
Dimensions
| Height | 1727.200 mm | 68 in |
| Pole Height Options | 6.096 m | 20 ft | 7.62 m | 25 ft | 9.144 m | 30 ft | 10.668 m | 35 ft | 12.192 m | 40 ft |
| Width | 508.000 mm | 20 in |
| Depth | 508.000 mm | 20 in |
| Depth Note | Round |
Electrical specifications
| Power/Fiber Input | AC load center with OVP and disconnect |
| Voltage | 120 Vac | 240 Vac |
Material specifications
| Finish Aluminum | Chromate |
| Finish Concealment Covers | Powder coated |
| Material Type | Galvanized steel | Steel |
Environmental specifications
| Thermal Compliance | GR-487 |
