BSAMNT-SBS-3-3

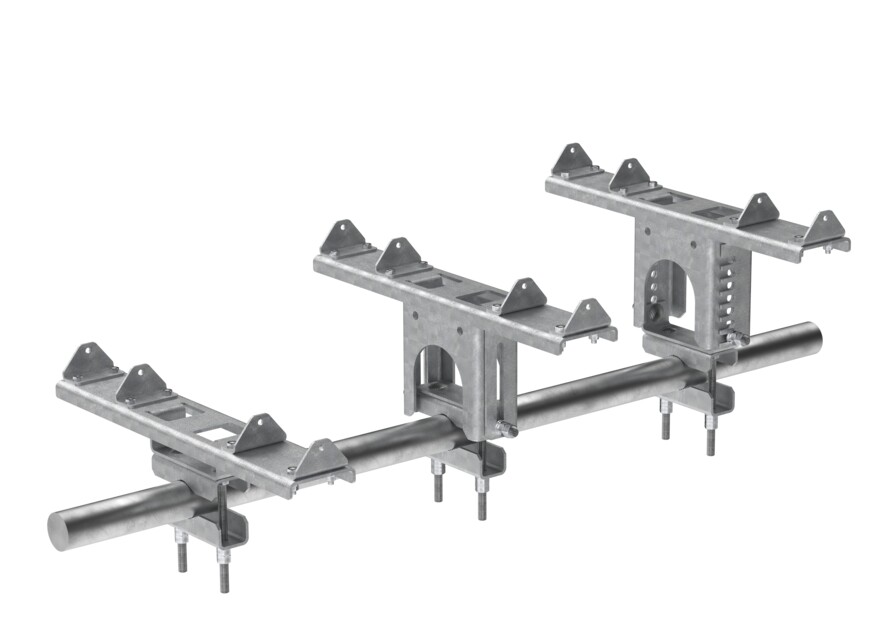

Side-By-Side Mounting Kit to mount two 498mm (19.6inch) or 498mm (19.6inch) with 457mm (18inch) platform antennas on a pipe with 60 – 115 mm (2.375 - 4.5 inch) diameter Ensures consistent distance of 2.4 inches/
Features and benefits
- Ensures consistent distance of 2.4 inches/60mm between the two 498mm antennas radomes while 3.2 inches/80mm between 498+457mm antennas radomes for each site
- Forces both antennas to point to the same boresight direction
Specifications
Product classification
| Product Type | Side mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 115 mm | 4.528 in |
| Compatible Diameter, minimum | 60 mm | 2.362 in |
| Weight, net | 49.9 kg | 110.011 lb |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, gross | 52.4 kg | 115.522 lb |
Regulatory compliance/certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Side mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 115 mm | 4.528 in |
| Compatible Diameter, minimum | 60 mm | 2.362 in |
| Weight, net | 49.9 kg | 110.011 lb |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, gross | 52.4 kg | 115.522 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
