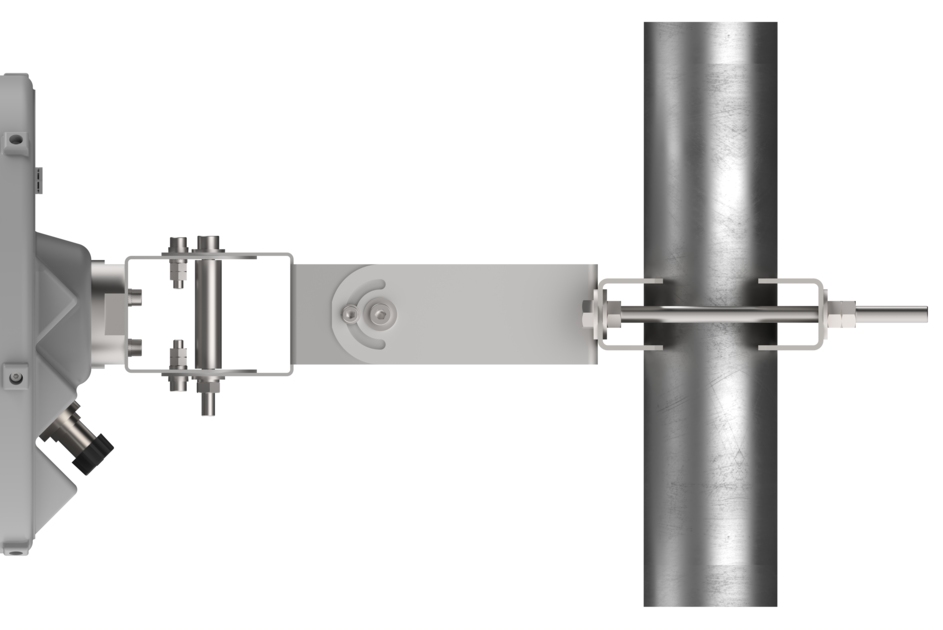

APM40-AZM
Elevation and Azimuth Tilt Mounting Kit for 2.0-4.3 in (50-110 mm) OD round members.
Features and benefits
- Allows for adjustment of pointing angle in both azimuth and elevation
Specifications
Product classification
| Product Type | Downtilt and uptilt mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 110 mm | 4.331 in |
| Compatible Diameter, minimum | 50 mm | 1.969 in |
| Weight, net | 2.6 kg | 5.732 lb |
Packaging and weights
| Packaging quantity | 1 |
| Weight, gross | 3.1 kg | 6.834 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Downtilt and uptilt mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 110 mm | 4.331 in |
| Compatible Diameter, minimum | 50 mm | 1.969 in |
| Weight, net | 2.6 kg | 5.732 lb |
Packaging and weights
| Packaging quantity | 1 |
| Weight, gross | 3.1 kg | 6.834 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
