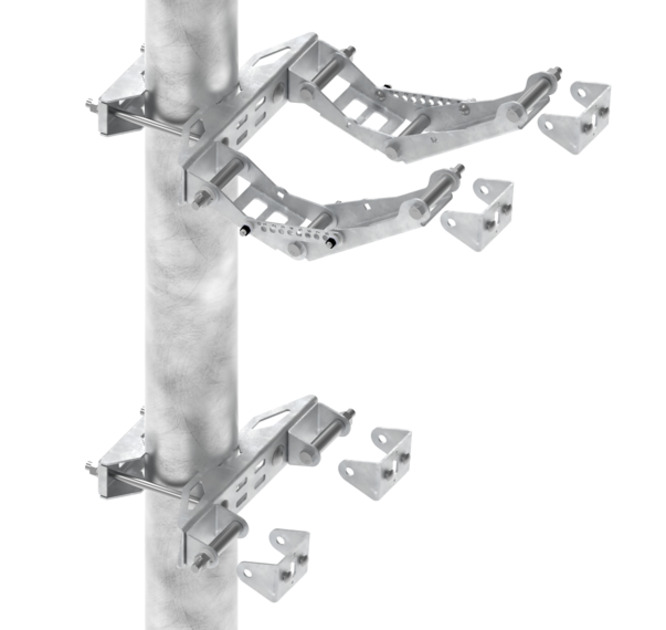

APM40-5E-E10F
Wide Profile Antenna Downtilt Mounting Kit for 2.4 - 4.7 in (60 - 120 mm) OD round members. Kit contains two scissor top bracket set and two bottom brackets set and four mount interfaces.
Specifications
Product classification
| Product Type | Downtilt and uptilt mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 120 mm | 4.724 in |
| Compatible Diameter, minimum | 60 mm | 2.362 in |
Packaging and weights
| Packaging quantity | 1 |
| Weight, gross | 8.5 kg | 18.739 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Downtilt and uptilt mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 120 mm | 4.724 in |
| Compatible Diameter, minimum | 60 mm | 2.362 in |
Packaging and weights
| Packaging quantity | 1 |
| Weight, gross | 8.5 kg | 18.739 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
