VV-65A-R1B-KTE
Kit with one 4-port sector antenna model VV-65A-R1 (4x 1695–2690 MHz, 65° HPBW, 1x RET，The two high band arrays utilize a common tilt.)
Features and benefits
- 1 x ATCB-B01-003 Cable 3m, RET to RRU
- The RET interface comprises one pair of AISG input/output ports
Specifications
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | PVC, UV resistant |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (1) |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 10 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 307 mm | 12.087 in |
| Depth | 118 mm | 4.646 in |
| Length | 1390 mm | 54.724 in |
| Net Weight, without mounting kit | 10.8 kg | 23.810 lb |

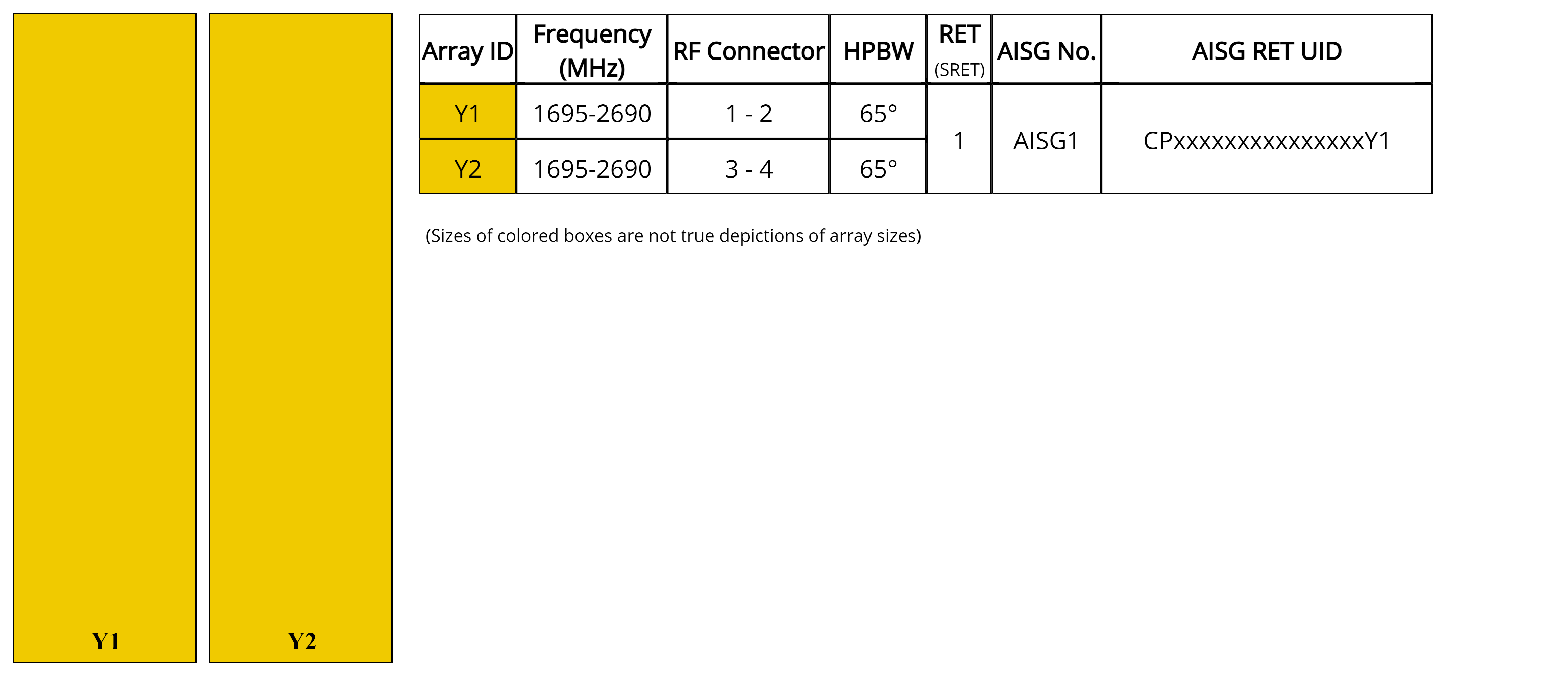

Array layout
| Click on image to enlarge. |

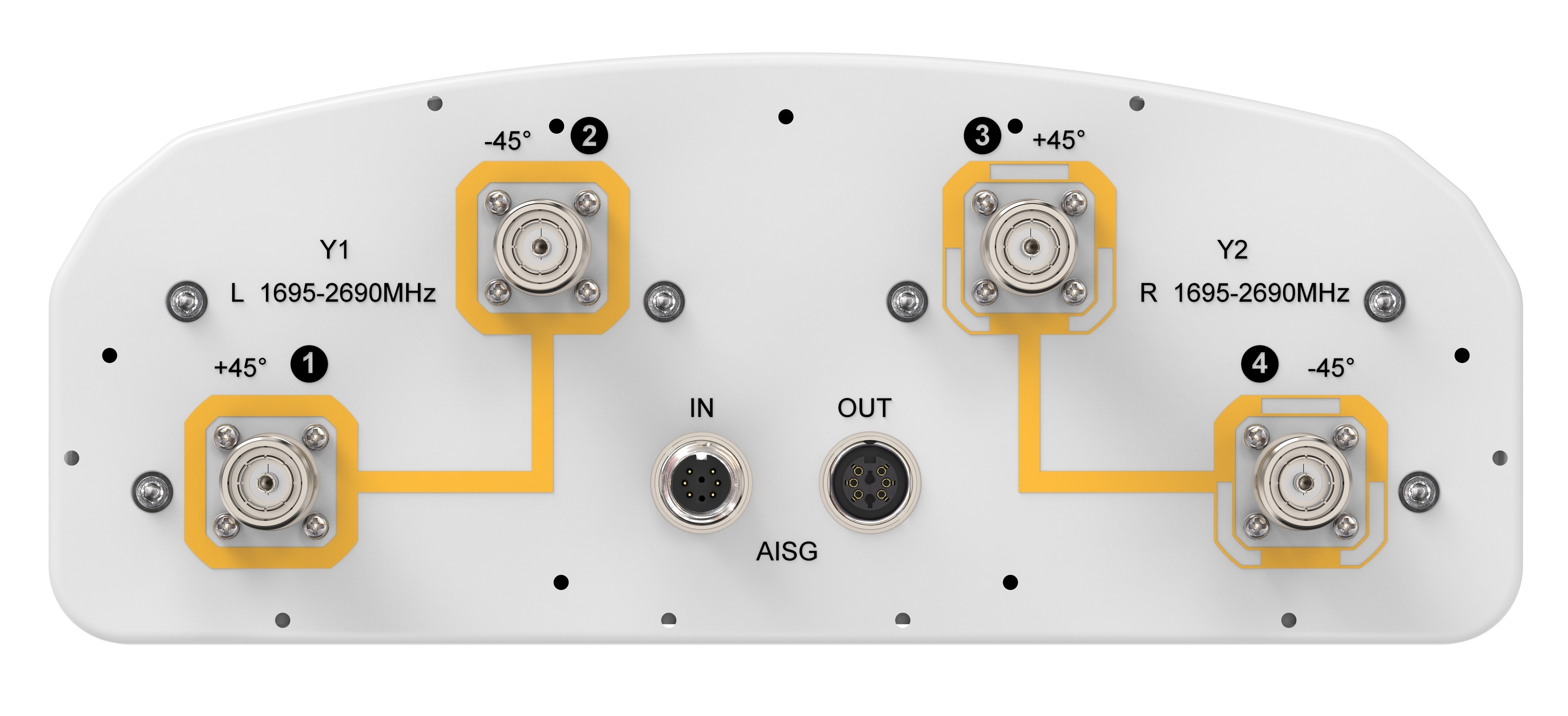

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 400 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2500 | 2490–2690 |
| Gain, dBi | 17.5 | 17.7 | 18.2 | 18.5 | 18.6 |
| Beamwidth, Horizontal, degrees | 66 | 65 | 66 | 63 | 62 |
| Beamwidth, Vertical, degrees | 6.9 | 6.5 | 6.1 | 5.4 | 5.2 |
| Beam Tilt, degrees | 0–12 | 0–12 | 0–12 | 0–12 | 0–12 |
| USLS (First Lobe), dB | 17 | 18 | 18 | 21 | 21 |
| Front-to-Back Ratio at 180°, dB | 30 | 31 | 32 | 29 | 30 |
| Isolation, Cross Polarization, dB | 30 | 30 | 30 | 30 | 30 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 300 | 250 |
Electrical specifications, basta
| Frequency Band, MHz | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2500 | 2490–2690 |
| Gain by all Beam Tilts, average, dBi | 17.1 | 17.5 | 17.9 | 18.3 | 18.2 |
| Gain by all Beam Tilts Tolerance, dB | ±0.5 | ±0.4 | ±0.4 | ±0.4 | ±0.5 |
| Beamwidth, Horizontal Tolerance, degrees | ±4.5 | ±3.5 | ±2.7 | ±2.5 | ±3.2 |
| Beamwidth, Vertical Tolerance, degrees | ±0.4 | ±0.3 | ±0.5 | ±0.2 | ±0.2 |
| USLS, beampeak to 20° above beampeak, dB | 16 | 17 | 17 | 18 | 16 |
| Front-to-Back Total Power at 180° ± 30°, dB | 24 | 26 | 27 | 26 | 26 |
| CPR at Boresight, dB | 16 | 17 | 17 | 20 | 19 |
| CPR at Sector, dB | 15 | 14 | 13 | 7 | 9 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 494.0 N @ 150 km/h (111.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 102.0 N @ 150 km/h (22.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 598.0 N @ 150 km/h (134.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 404 mm | 15.906 in |
| Depth, packed | 278 mm | 10.945 in |
| Length, packed | 1527 mm | 60.118 in |
| Weight, gross | 19.8 kg | 43.651 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | PVC, UV resistant |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (1) |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 10 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 307 mm | 12.087 in |
| Depth | 118 mm | 4.646 in |
| Length | 1390 mm | 54.724 in |
| Net Weight, without mounting kit | 10.8 kg | 23.810 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 400 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2500 | 2490–2690 |
| Gain, dBi | 17.5 | 17.7 | 18.2 | 18.5 | 18.6 |
| Beamwidth, Horizontal, degrees | 66 | 65 | 66 | 63 | 62 |
| Beamwidth, Vertical, degrees | 6.9 | 6.5 | 6.1 | 5.4 | 5.2 |
| Beam Tilt, degrees | 0–12 | 0–12 | 0–12 | 0–12 | 0–12 |
| USLS (First Lobe), dB | 17 | 18 | 18 | 21 | 21 |
| Front-to-Back Ratio at 180°, dB | 30 | 31 | 32 | 29 | 30 |
| Isolation, Cross Polarization, dB | 30 | 30 | 30 | 30 | 30 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 300 | 250 |
Electrical specifications, basta
| Frequency Band, MHz | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2500 | 2490–2690 |
| Gain by all Beam Tilts, average, dBi | 17.1 | 17.5 | 17.9 | 18.3 | 18.2 |
| Gain by all Beam Tilts Tolerance, dB | ±0.5 | ±0.4 | ±0.4 | ±0.4 | ±0.5 |
| Beamwidth, Horizontal Tolerance, degrees | ±4.5 | ±3.5 | ±2.7 | ±2.5 | ±3.2 |
| Beamwidth, Vertical Tolerance, degrees | ±0.4 | ±0.3 | ±0.5 | ±0.2 | ±0.2 |
| USLS, beampeak to 20° above beampeak, dB | 16 | 17 | 17 | 18 | 16 |
| Front-to-Back Total Power at 180° ± 30°, dB | 24 | 26 | 27 | 26 | 26 |
| CPR at Boresight, dB | 16 | 17 | 17 | 20 | 19 |
| CPR at Sector, dB | 15 | 14 | 13 | 7 | 9 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 494.0 N @ 150 km/h (111.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 102.0 N @ 150 km/h (22.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 598.0 N @ 150 km/h (134.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 404 mm | 15.906 in |
| Depth, packed | 278 mm | 10.945 in |
| Length, packed | 1527 mm | 60.118 in |
| Weight, gross | 19.8 kg | 43.651 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
