V4-65D-R4-V2
8-port sector antenna, 8x 1710–2690 MHz, 65° HPBW, 4x RET with manual override. Antenna rear wind loading 445N @ 150km/h
Features and benefits
- Integrated Internal Remote Electrical Tilt (RET), with independent control of electrical tilt with manual override on all arrays
- Employs state-of-the-art ultra wideband technology providing excellent RF performance in all bands
- Wind Loading; Frontal / Lateral / Rear – 439 / 372 / 445 N @ 150km/h
Specifications
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (4) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 8 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 301 mm | 11.85 in |
| Depth | 180 mm | 7.087 in |
| Length | 2675 mm | 105.315 in |
| Net Weight, without mounting kit | 29.5 kg | 65.036 lb |

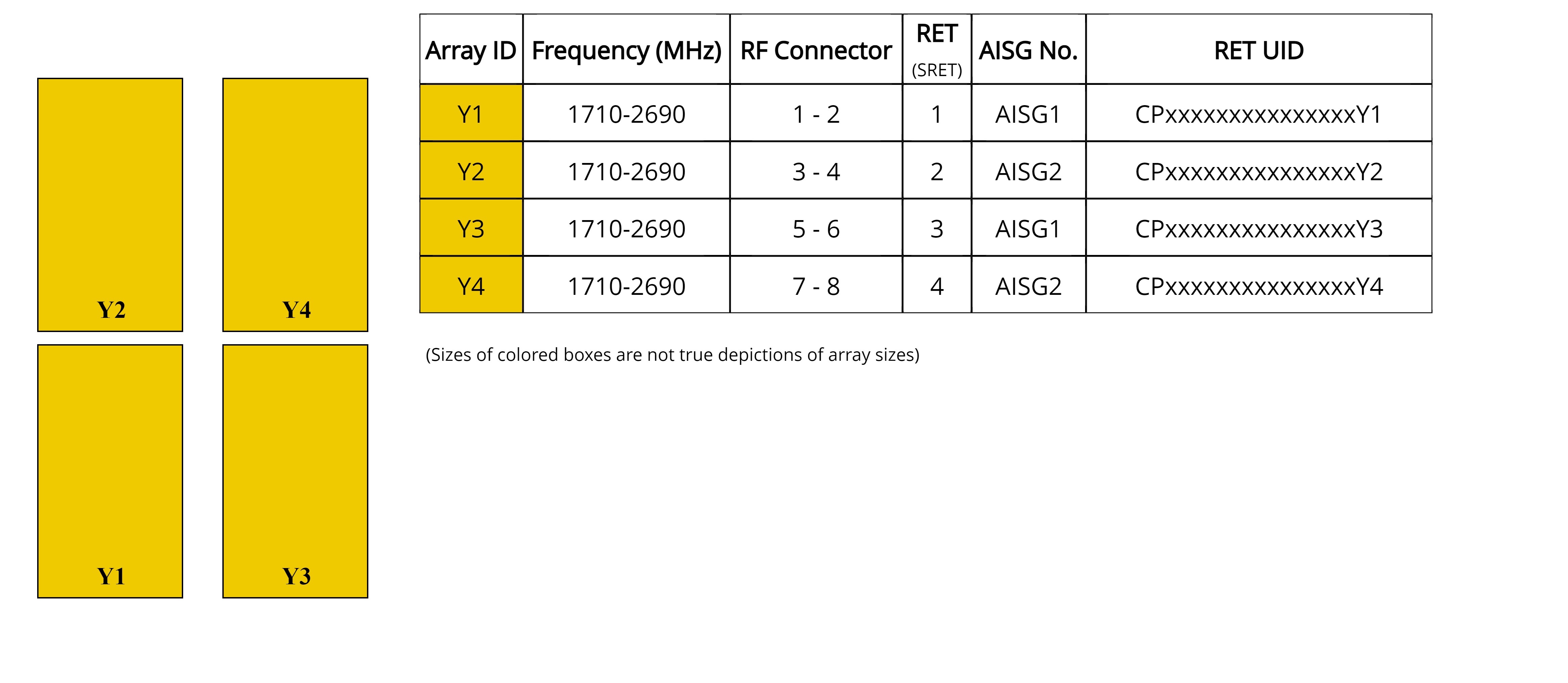

Array layout
| Click on image to enlarge. |

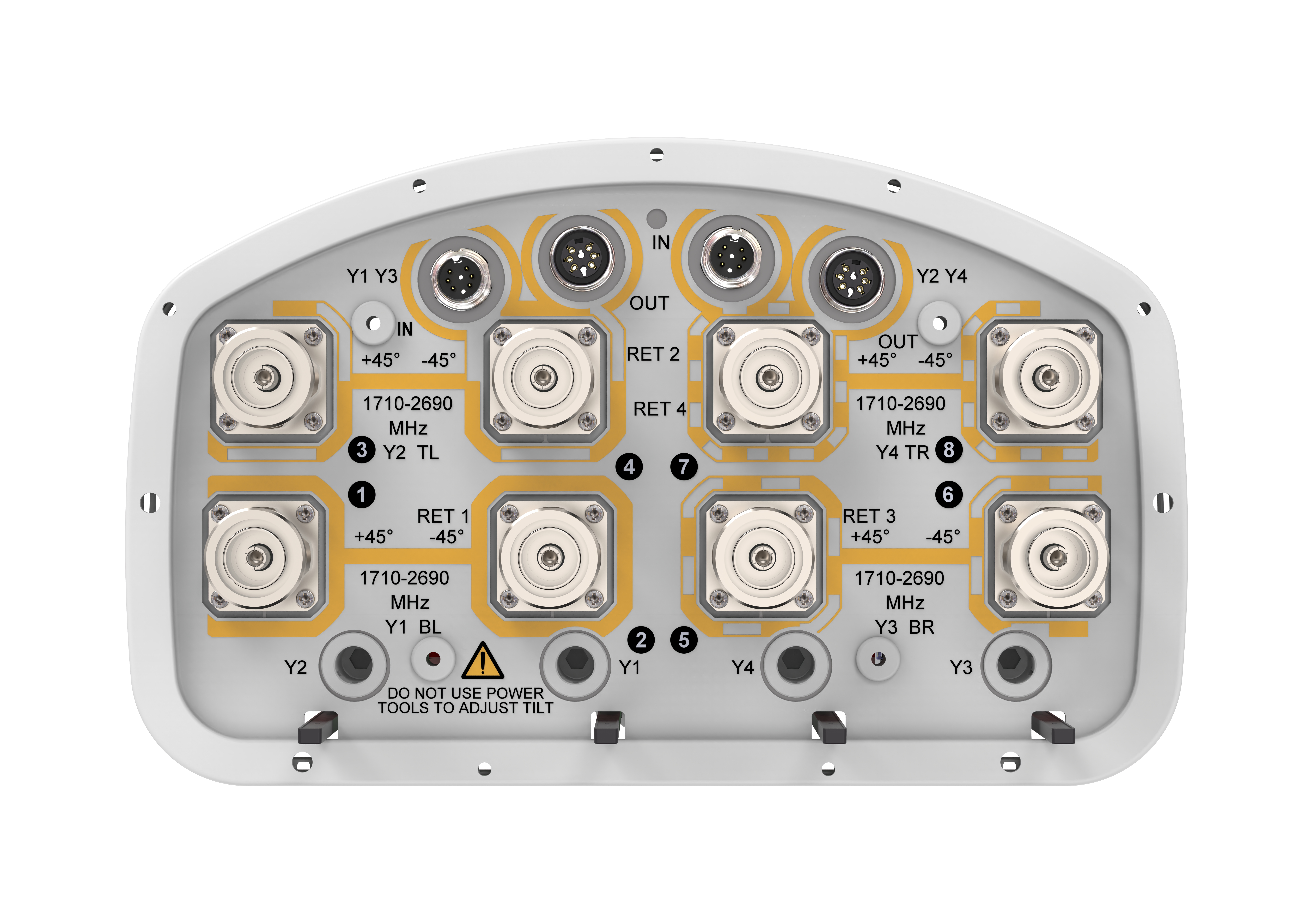

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 1710–1880 | 1920–2200 | 2300–2500 | 2500–2690 |
| Gain, dBi | 16.9 | 17.8 | 18.3 | 18.9 |
| Beamwidth, Horizontal, degrees | 70 | 67 | 60 | 54 |
| Beamwidth, Vertical, degrees | 6.9 | 6.3 | 5.5 | 5.2 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 16 | 17 | 20 | 20 |
| Front-to-Back Ratio at 180°, dB | 35 | 37 | 40 | 39 |
| CPR at Boresight, dB | 15 | 16 | 16 | 15 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 439.0 N @ 150 km/h (98.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 372.0 N @ 150 km/h (83.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 845.0 N @ 150 km/h (190.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 445.0 N @ 150 km/h (100.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 409 mm | 16.102 in |
| Depth, packed | 309 mm | 12.165 in |
| Length, packed | 2924 mm | 115.118 in |
| Weight, gross | 48 kg | 105.822 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (4) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 8 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 301 mm | 11.85 in |
| Depth | 180 mm | 7.087 in |
| Length | 2675 mm | 105.315 in |
| Net Weight, without mounting kit | 29.5 kg | 65.036 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 1710–1880 | 1920–2200 | 2300–2500 | 2500–2690 |
| Gain, dBi | 16.9 | 17.8 | 18.3 | 18.9 |
| Beamwidth, Horizontal, degrees | 70 | 67 | 60 | 54 |
| Beamwidth, Vertical, degrees | 6.9 | 6.3 | 5.5 | 5.2 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 16 | 17 | 20 | 20 |
| Front-to-Back Ratio at 180°, dB | 35 | 37 | 40 | 39 |
| CPR at Boresight, dB | 15 | 16 | 16 | 15 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 439.0 N @ 150 km/h (98.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 372.0 N @ 150 km/h (83.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 845.0 N @ 150 km/h (190.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 445.0 N @ 150 km/h (100.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 409 mm | 16.102 in |
| Depth, packed | 309 mm | 12.165 in |
| Length, packed | 2924 mm | 115.118 in |
| Weight, gross | 48 kg | 105.822 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
