V17-001-01-A0-E

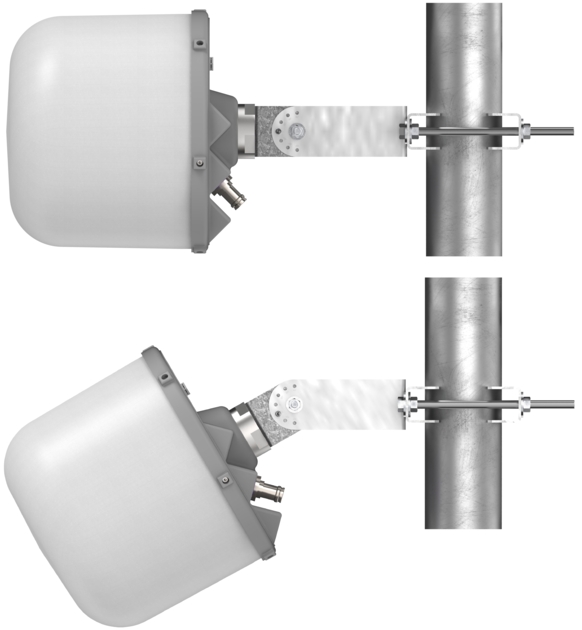

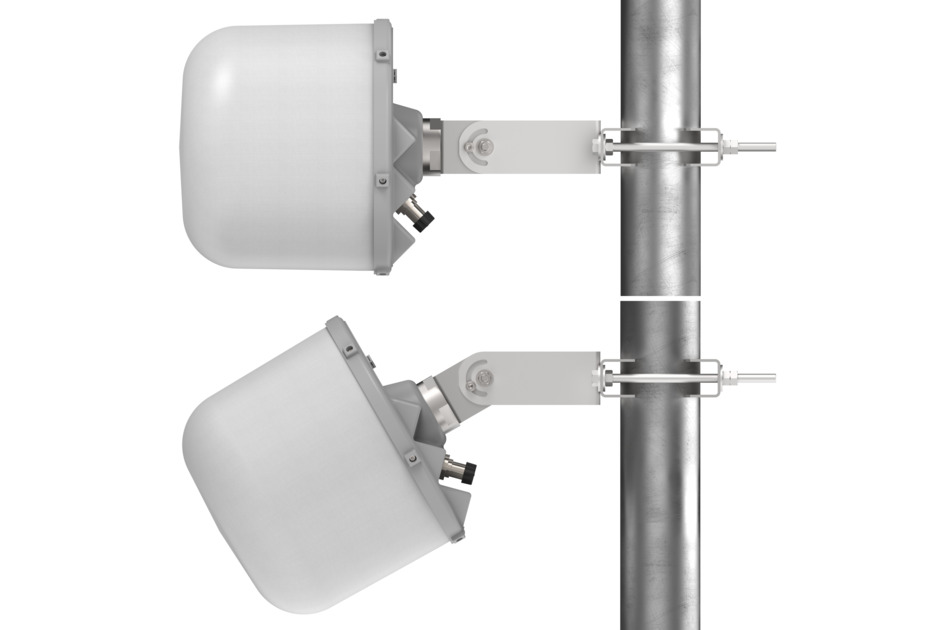

2-port Venue Antenna, 3300-4000 MHz, 17° HPBW, Fixed Tilt
Features and benefits
- 17° Azimuth and Elevation Beamwidth
- Designed with CleanBeam™ technology
- Supports 2x2 MIMO
- 2T2R MetaLens™ antenna
Specifications
General specifications
| Color | White |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Radome Material | FRP, UV resistant |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Quantity, total | 2 |
Dimensions
| Width | 299 mm | 11.772 in |
| Depth | 294 mm | 11.575 in |
| Length | 299 mm | 11.772 in |
| Net Weight, without mounting kit | 3.6 kg | 7.937 lb |

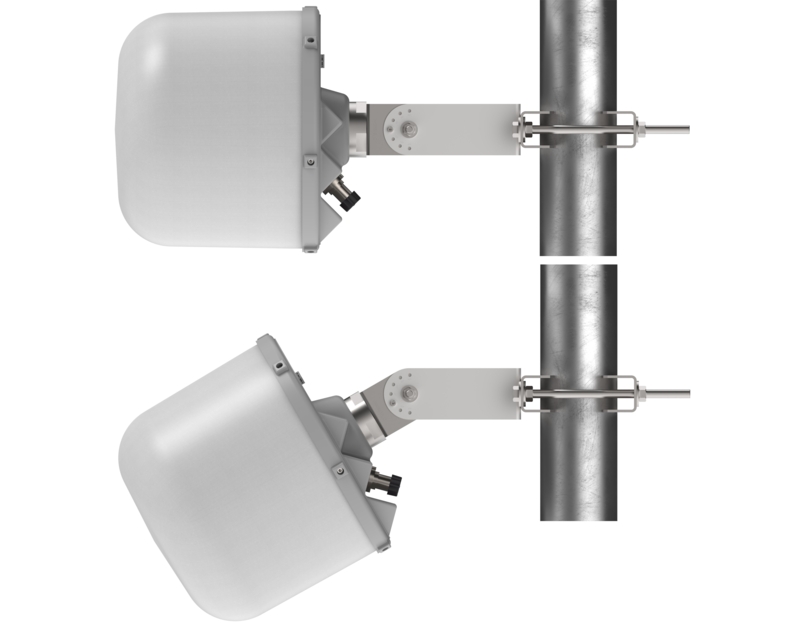

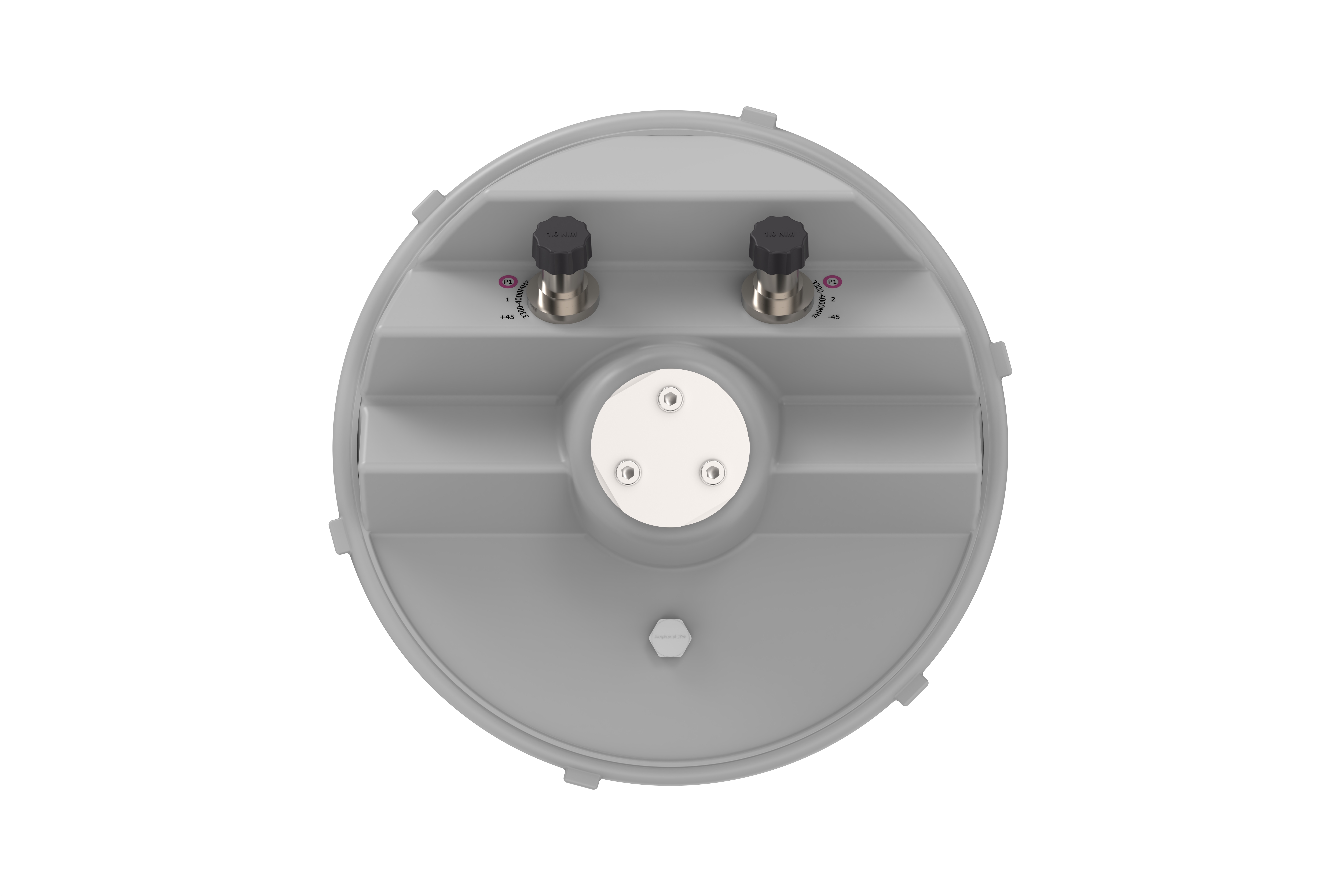

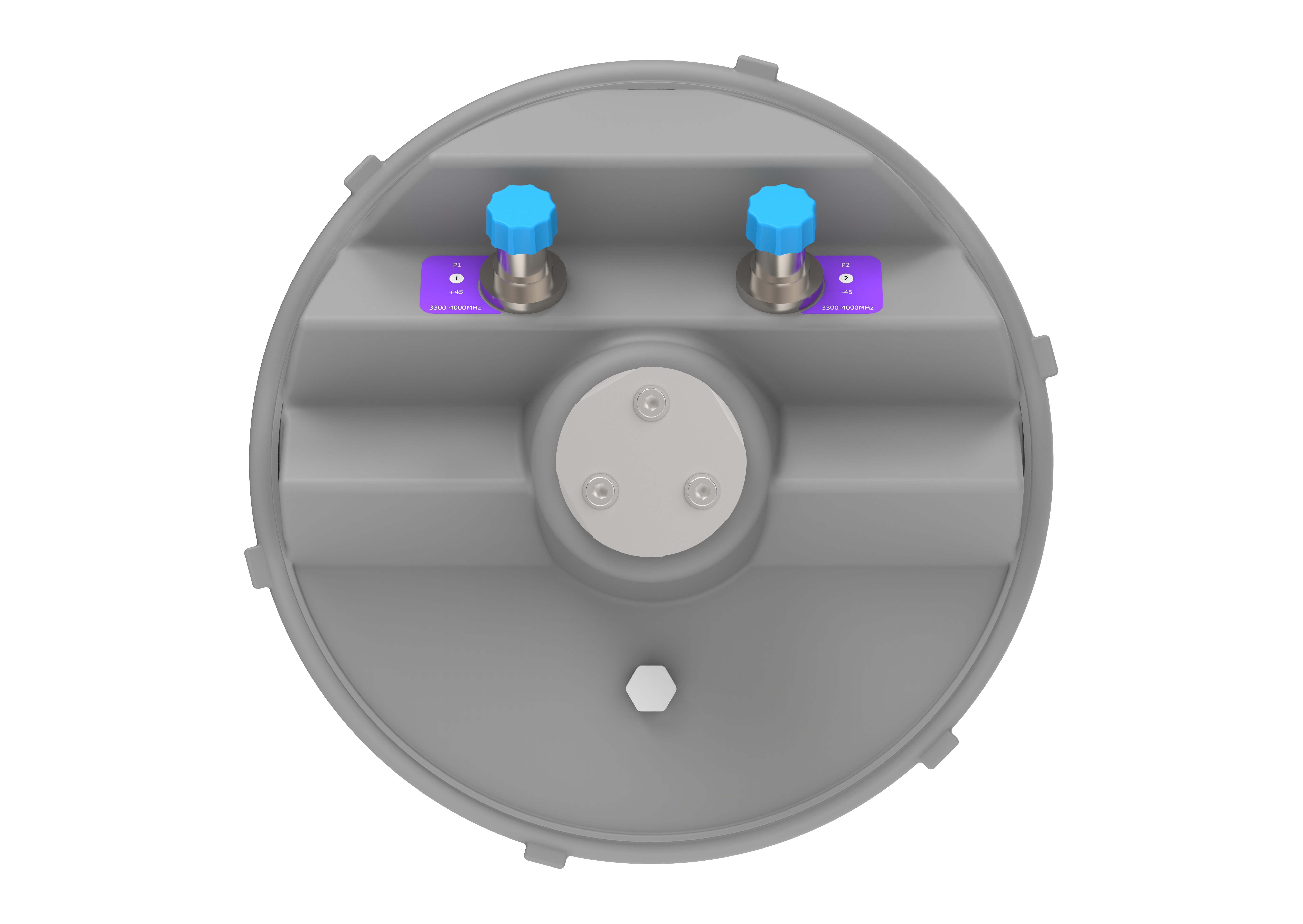

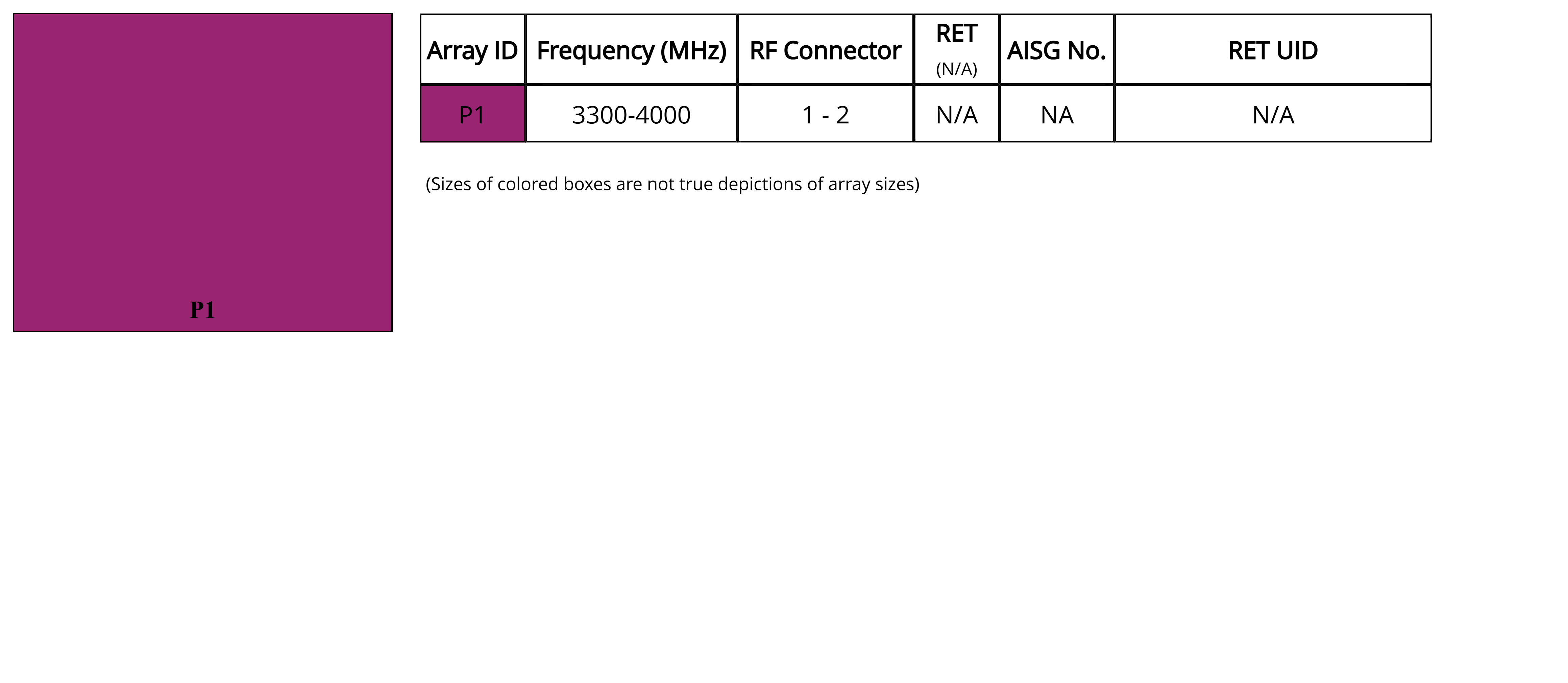

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Operating Frequency Band | 3300 – 4000 MHz |
| Polarization | ±45° |
Electrical specifications
| P1,P2 | P1,P2 | P1,P2 | |
| Frequency Band, MHz | 3300–3800 | 3550–3700 | 3700–4000 |
| RF Port | 1,2 | 1,2 | 1,2 |
| Gain, dBi | 19.0 | 18.9 | 19.3 |
| Beamwidth, Horizontal, degrees | 17 | 17 | 16 |
| Beamwidth, Vertical, degrees | 17 | 16 | 16 |
| USLS (First Lobe), dB | 18 | 18 | 20 |
| Front-to-Back Ratio at 180°, dB | 40 | 41 | 37 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 33 | 35 | 33 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 80 | 80 | 80 |
Packaging and weights
| Width, packed | 390 mm | 15.354 in |
| Depth, packed | 510 mm | 20.079 in |
| Length, packed | 395 mm | 15.551 in |
| Weight, gross | 7.8 kg | 17.196 lb |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
General specifications
| Color | White |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Radome Material | FRP, UV resistant |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Quantity, total | 2 |
Dimensions
| Width | 299 mm | 11.772 in |
| Depth | 294 mm | 11.575 in |
| Length | 299 mm | 11.772 in |
| Net Weight, without mounting kit | 3.6 kg | 7.937 lb |
Electrical specifications
| Operating Frequency Band | 3300 – 4000 MHz |
| Polarization | ±45° |
Electrical specifications
| P1,P2 | P1,P2 | P1,P2 | |
| Frequency Band, MHz | 3300–3800 | 3550–3700 | 3700–4000 |
| RF Port | 1,2 | 1,2 | 1,2 |
| Gain, dBi | 19.0 | 18.9 | 19.3 |
| Beamwidth, Horizontal, degrees | 17 | 17 | 16 |
| Beamwidth, Vertical, degrees | 17 | 16 | 16 |
| USLS (First Lobe), dB | 18 | 18 | 20 |
| Front-to-Back Ratio at 180°, dB | 40 | 41 | 37 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 33 | 35 | 33 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 80 | 80 | 80 |
Packaging and weights
| Width, packed | 390 mm | 15.354 in |
| Depth, packed | 510 mm | 20.079 in |
| Length, packed | 395 mm | 15.551 in |
| Weight, gross | 7.8 kg | 17.196 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
