UU-65M-R2

4-port sector antenna, 4x 4400-5000 MHz, 65°HPBW, 2x RET

Finish making your selections or clear them to view relevant specifications.

Find a partner

Features and benefits

Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector
With tilt indicators and internal RET

Specifications

General specifications

Antenna Type	Sector
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	PVC, UV resistant
Radiator Material	Low loss circuit board
Reflector Material	Aluminum

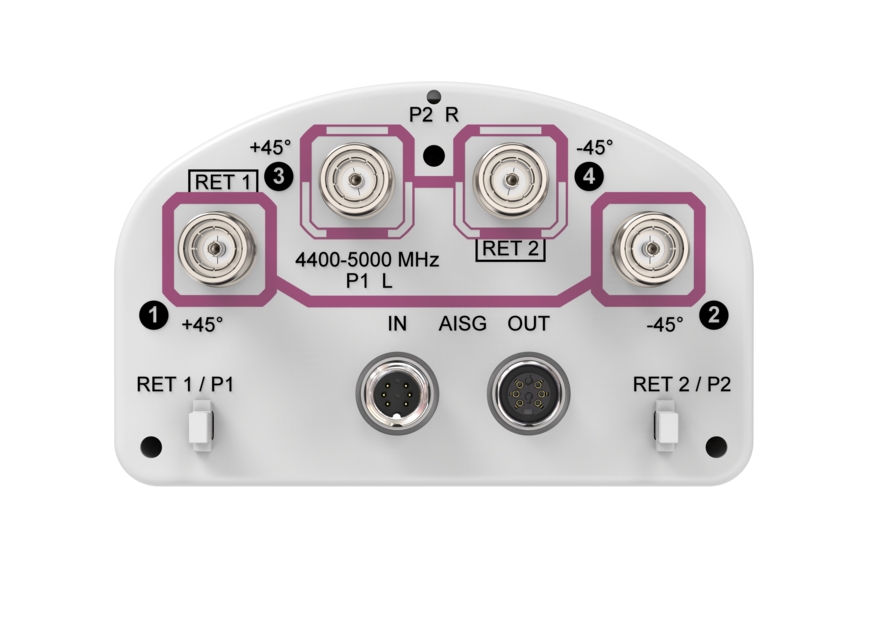

RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, high band	4
RF Connector Quantity, total	4

RET Hardware	CommRET v2
RET Interface	2x 8 pin connector as per IEC 60130-9 Daisy chain in: Male / Daisy chain out: Female Pin3: RS485A(AISG_B), Pin5: RS485B(AISG_A), Pin6: DC 10~30V, Pin7: DC_ Return
RET Interface, quantity	1 female \| 1 male
Input Voltage	10–30 Vdc
Internal RET	High band (2)
Power Consumption, active state, maximum	10 W
Power Consumption, idle state, maximum	2 W
Protocol	3GPP/AISG 2.0 (Single RET)

Width	170 mm \| 6.693 in
Depth	105 mm \| 4.134 in
Length	998 mm \| 39.291 in
Net Weight, without mounting kit	6.5 kg \| 14.330 lb

Click on image to enlarge.

Click on image to enlarge.

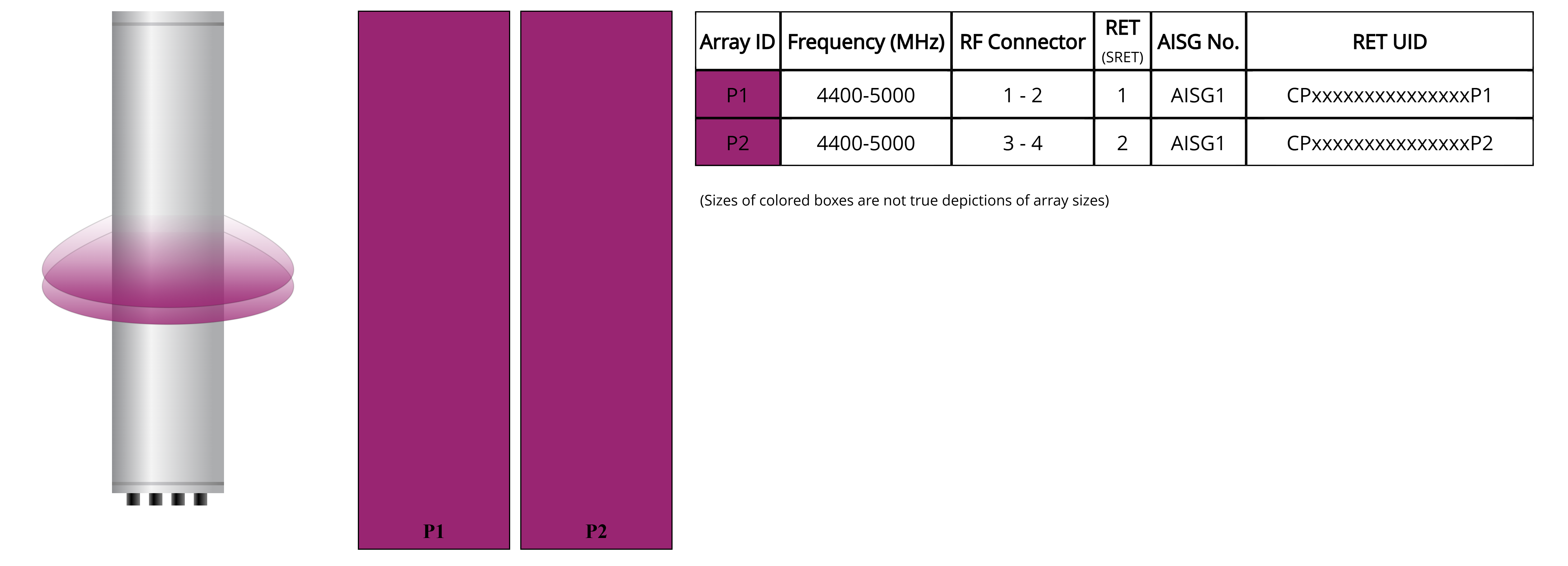

	P1,P2
Frequency Band, MHz	4400–5000
RF Port	1-4
Gain, dBi	17.1
Beamwidth, Horizontal, degrees	60
Beamwidth, Vertical, degrees	5.5
Beam Tilt, degrees	0–10
USLS (First Lobe), dB	15
Front-to-Back Ratio at 180°, dB	29
CPR at Boresight, dB	18
Isolation, Cross Polarization, dB	25
Isolation, Inter-band, dB	25
VSWR \| Return loss, dB	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-150
Input Power per Port, maximum, watts	150

Wind Loading @ Velocity, frontal	163.0 N @ 150 km/h (36.6 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	124.0 N @ 150 km/h (27.9 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	271.0 N @ 150 km/h (60.9 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Agency	Classification
UK-ROHS	Compliant

Antenna Type	Sector
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	PVC, UV resistant
Radiator Material	Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, high band	4
RF Connector Quantity, total	4

RET Hardware	CommRET v2
RET Interface	2x 8 pin connector as per IEC 60130-9 Daisy chain in: Male / Daisy chain out: Female Pin3: RS485A(AISG_B), Pin5: RS485B(AISG_A), Pin6: DC 10~30V, Pin7: DC_ Return
RET Interface, quantity	1 female \| 1 male
Input Voltage	10–30 Vdc
Internal RET	High band (2)
Power Consumption, active state, maximum	10 W
Power Consumption, idle state, maximum	2 W
Protocol	3GPP/AISG 2.0 (Single RET)

Width	170 mm \| 6.693 in
Depth	105 mm \| 4.134 in
Length	998 mm \| 39.291 in
Net Weight, without mounting kit	6.5 kg \| 14.330 lb

	P1,P2
Frequency Band, MHz	4400–5000
RF Port	1-4
Gain, dBi	17.1
Beamwidth, Horizontal, degrees	60
Beamwidth, Vertical, degrees	5.5
Beam Tilt, degrees	0–10
USLS (First Lobe), dB	15
Front-to-Back Ratio at 180°, dB	29
CPR at Boresight, dB	18
Isolation, Cross Polarization, dB	25
Isolation, Inter-band, dB	25
VSWR \| Return loss, dB	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-150
Input Power per Port, maximum, watts	150

Wind Loading @ Velocity, frontal	163.0 N @ 150 km/h (36.6 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	124.0 N @ 150 km/h (27.9 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	271.0 N @ 150 km/h (60.9 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)
