UNX001U-2P
2-port omni antenna, 2x 713-803 MHz, 360° horizontal beamwidth.
Specifications
General specifications
| Antenna Type | Omni |
| Band | Single band |
| Grounding Type | RF connector body grounded to mounting interface |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Brass | Copper |

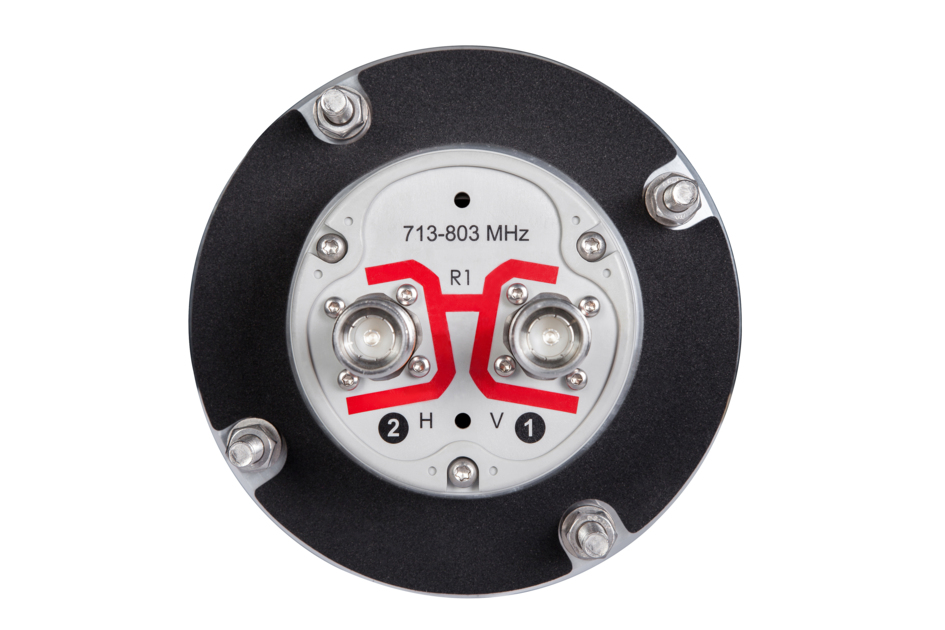

| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 2 |
Dimensions
| Length | 978 mm | 38.504 in |
| Net Weight, without mounting kit | 5 kg | 11.023 lb |
| Outer Diameter | 82 mm | 3.228 in |
Mounting hole pattern
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 713 – 803 MHz |
| Polarization | Horizontal | Vertical |
| Total Input Power, maximum | 160 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 713–803 |
| Gain, dBi | 4.9 |
| Beamwidth, Horizontal, degrees | 360 |
| Beamwidth, Vertical, degrees | 56.6 |
| Beam Tilt, degrees | 0 |
| USLS (First Lobe), dB | 12 |
| Isolation, Cross Polarization, dB | 28 |
| VSWR | Return loss, dB | 1.6 | 12.7 |
| PIM, 3rd Order, 2 x 20 W, dBc | -145 |
| Input Power per Port, maximum, watts | 80 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 76.0 N @ 150 km/h (17.1 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 251 mm | 9.882 in |
| Depth, packed | 237 mm | 9.331 in |
| Length, packed | 1105 mm | 43.504 in |
| Weight, gross | 7.8 kg | 17.196 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
General specifications
| Antenna Type | Omni |
| Band | Single band |
| Grounding Type | RF connector body grounded to mounting interface |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Brass | Copper |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 2 |
Dimensions
| Length | 978 mm | 38.504 in |
| Net Weight, without mounting kit | 5 kg | 11.023 lb |
| Outer Diameter | 82 mm | 3.228 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 713 – 803 MHz |
| Polarization | Horizontal | Vertical |
| Total Input Power, maximum | 160 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 713–803 |
| Gain, dBi | 4.9 |
| Beamwidth, Horizontal, degrees | 360 |
| Beamwidth, Vertical, degrees | 56.6 |
| Beam Tilt, degrees | 0 |
| USLS (First Lobe), dB | 12 |
| Isolation, Cross Polarization, dB | 28 |
| VSWR | Return loss, dB | 1.6 | 12.7 |
| PIM, 3rd Order, 2 x 20 W, dBc | -145 |
| Input Power per Port, maximum, watts | 80 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 76.0 N @ 150 km/h (17.1 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 251 mm | 9.882 in |
| Depth, packed | 237 mm | 9.331 in |
| Length, packed | 1105 mm | 43.504 in |
| Weight, gross | 7.8 kg | 17.196 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
