  5. RYVV-65A-R4
Warning Icon
This product was discontinued on: March 31, 2023

For other alternatives, please contact us for more information.

1 Replacement products available
  • RZVV-65A-R4
    8-port sector antenna, 2x 694–960, 2x 1427-2690 and 4x 1695–2690 MHz, 65° HPBW, 4x RET

RYVV-65A-R4

8-port sector antenna, 2x 694–960, 2x 1427-1518 and 4x 1695–2690 MHz, 65° HPBW, 4x RET

Finish making your selections or clear them to view relevant specifications.
Features and benefits
  • All Internal RET actuators are connected in “Cascaded SRET” configuration
  • Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector
  • Includes 2-Ports which support operation over 1427-1518 MHz (including 1400 MHz “L-Band” applications in Europe)

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 6
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 2
RF Connector Quantity, total 8

Remote electrical tilt (ret) information

RET Hardware CommRET v1
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (3) | Low band (1)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 350 mm | 13.78 in
Depth 208 mm | 8.189 in
Length 1499 mm | 59.016 in
Net Weight, without mounting kit 21.2 kg | 46.738 lb

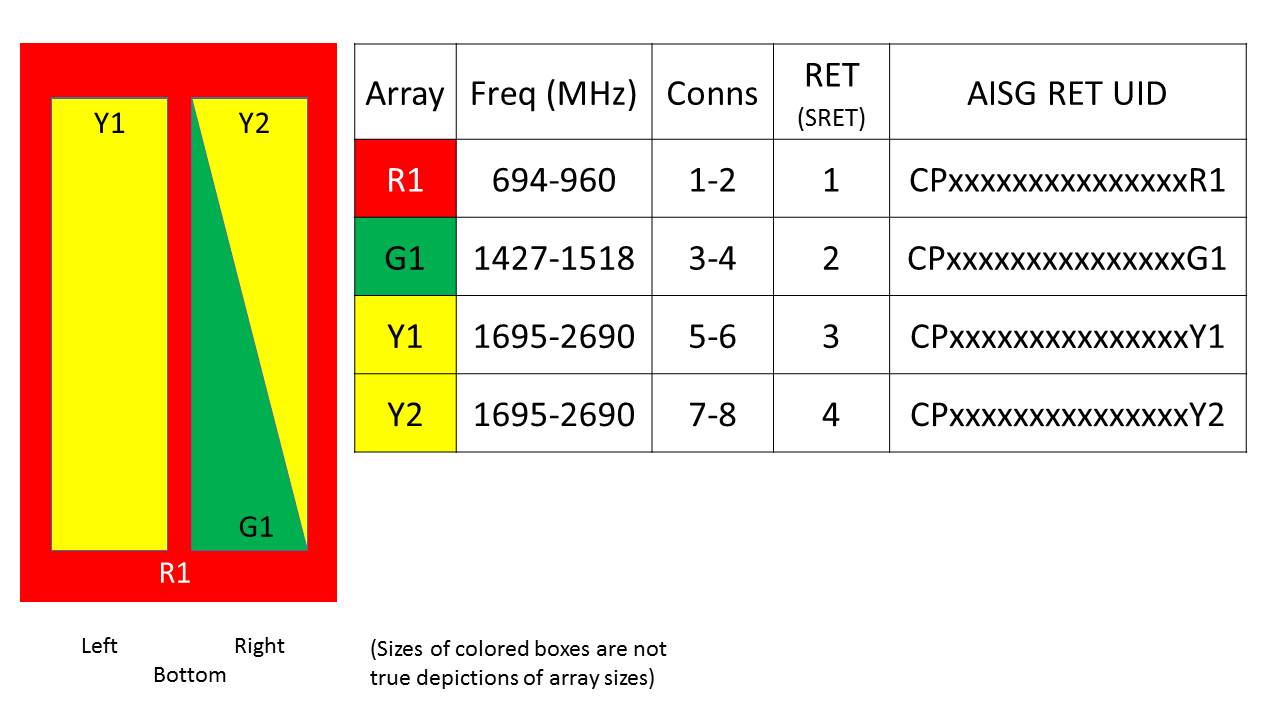

Array layout

Click on image to enlarge.

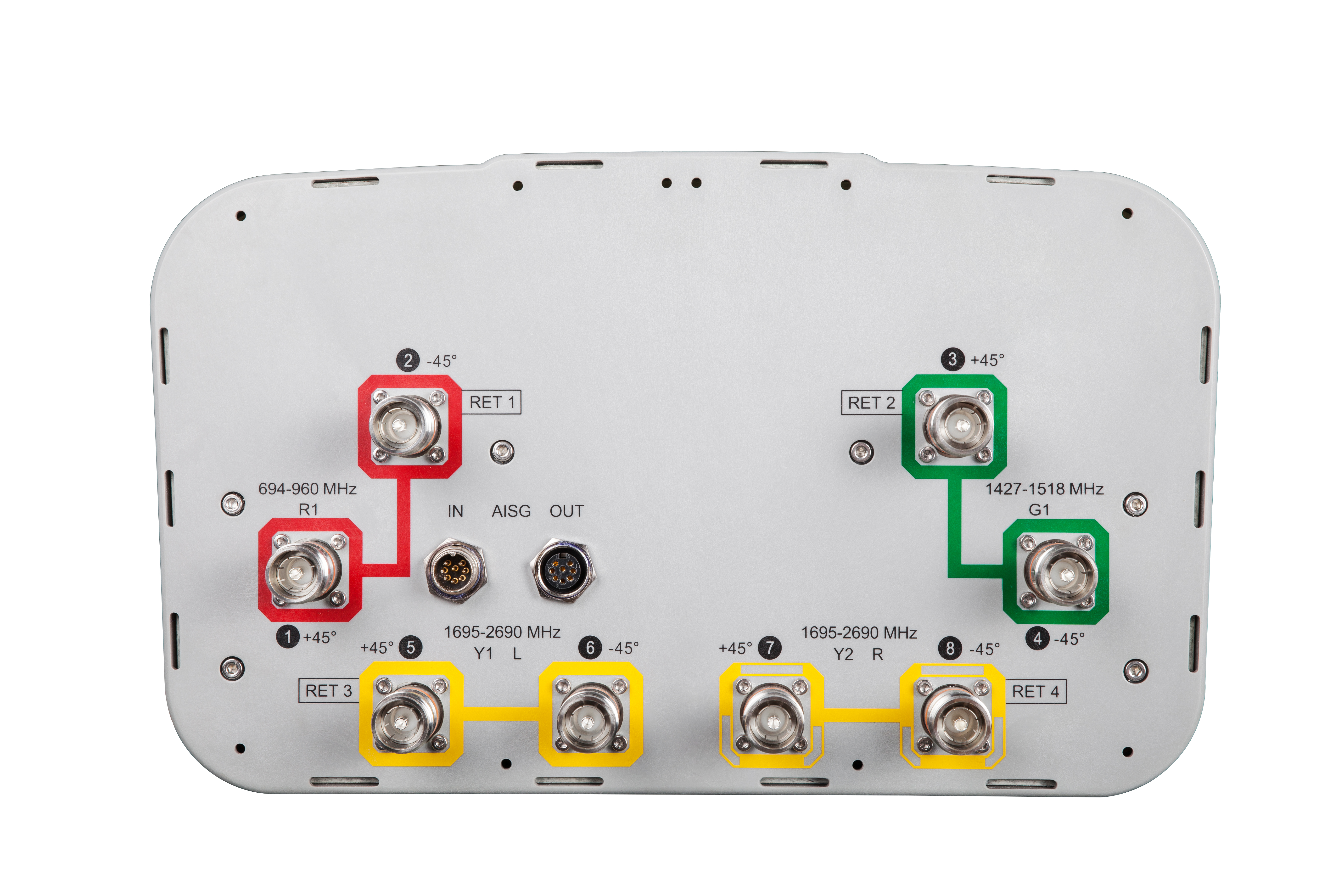

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 1518 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical specifications

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–1920 1920–2180 2300–2500 2500–2690
Gain, dBi 14.2 14.6 14.6 15.7 16.8 17.2 17.4 16.7
Beamwidth, Horizontal, degrees 68 66 65 62 60 60 62 63
Beamwidth, Vertical, degrees 15.7 14.3 13.5 8.8 7.1 6.5 5.7 5.5
Beam Tilt, degrees 2–17 2–17 2–17 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 17 19 17 18 17 19 19 18
Front-to-Back Ratio at 180°, dB 29 31 31 33 35 37 34 29
Isolation, Cross Polarization, dB 28 28 28 28 28 28 28 28
Isolation, Inter-band, dB 30 30 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 250 200 200

Electrical specifications, basta

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–1920 1920–2180 2300–2500 2500–2690
Gain by all Beam Tilts, average, dBi 14.0 14.4 14.3 15.5 16.4 17.0 17.0 16.3
Gain by all Beam Tilts Tolerance, dB ±0.3 ±0.3 ±0.6 ±0.4 ±0.7 ±0.4 ±0.6 ±0.5
Gain by Beam Tilt, average, dBi 2 ° | 14.0
9 ° | 14.1
17 ° | 13.8		 2 ° | 14.4
9 ° | 14.5
17 ° | 14.2		 2 ° | 14.5
9 ° | 14.3
17 ° | 14.0		 2 ° | 15.2
7 ° | 15.5
12 ° | 15.5		 2 ° | 16.1
7 ° | 16.4
12 ° | 16.4		 2 ° | 16.7
7 ° | 17.1
12 ° | 16.9		 2 ° | 16.6
7 ° | 17.2
12 ° | 16.8		 2 ° | 16.0
7 ° | 16.5
12 ° | 16.1
Beamwidth, Horizontal Tolerance, degrees ±1.7 ±1.7 ±1.6 ±4.9 ±3.5 ±2.8 ±5.8 ±6.2
Beamwidth, Vertical Tolerance, degrees ±0.9 ±0.8 ±1 ±0.4 ±0.4 ±0.4 ±0.3 ±0.3
USLS, beampeak to 20° above beampeak, dB 19 19 17 16 15 16 16 14
Front-to-Back Total Power at 180° ± 30°, dB 24 23 23 25 28 28 27 25
CPR at Boresight, dB 16 16 18 13 19 22 20 17
CPR at Sector, dB 10 10 10 9 9 8 8 2

Mechanical specifications

Wind Loading @ Velocity, frontal 239.0 N @ 150 km/h (53.7 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 201.0 N @ 150 km/h (45.2 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 507.0 N @ 150 km/h (114.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 254.0 N @ 150 km/h (57.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 456 mm | 17.953 in
Depth, packed 357 mm | 14.055 in
Length, packed 1643 mm | 64.685 in
Weight, gross 33.9 kg | 74.737 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 6
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 2
RF Connector Quantity, total 8

Remote electrical tilt (ret) information

RET Hardware CommRET v1
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (3) | Low band (1)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 350 mm | 13.78 in
Depth 208 mm | 8.189 in
Length 1499 mm | 59.016 in
Net Weight, without mounting kit 21.2 kg | 46.738 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 1518 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical specifications

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–1920 1920–2180 2300–2500 2500–2690
Gain, dBi 14.2 14.6 14.6 15.7 16.8 17.2 17.4 16.7
Beamwidth, Horizontal, degrees 68 66 65 62 60 60 62 63
Beamwidth, Vertical, degrees 15.7 14.3 13.5 8.8 7.1 6.5 5.7 5.5
Beam Tilt, degrees 2–17 2–17 2–17 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 17 19 17 18 17 19 19 18
Front-to-Back Ratio at 180°, dB 29 31 31 33 35 37 34 29
Isolation, Cross Polarization, dB 28 28 28 28 28 28 28 28
Isolation, Inter-band, dB 30 30 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 250 200 200

Electrical specifications, basta

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–1920 1920–2180 2300–2500 2500–2690
Gain by all Beam Tilts, average, dBi 14.0 14.4 14.3 15.5 16.4 17.0 17.0 16.3
Gain by all Beam Tilts Tolerance, dB ±0.3 ±0.3 ±0.6 ±0.4 ±0.7 ±0.4 ±0.6 ±0.5
Gain by Beam Tilt, average, dBi 2 ° | 14.0; 9 ° | 14.1;17 ° | 13.8 2 ° | 14.4; 9 ° | 14.5;17 ° | 14.2 2 ° | 14.5; 9 ° | 14.3;17 ° | 14.0 2 ° | 15.2; 7 ° | 15.5;12 ° | 15.5 2 ° | 16.1; 7 ° | 16.4;12 ° | 16.4 2 ° | 16.7; 7 ° | 17.1;12 ° | 16.9 2 ° | 16.6; 7 ° | 17.2;12 ° | 16.8 2 ° | 16.0; 7 ° | 16.5;12 ° | 16.1
Beamwidth, Horizontal Tolerance, degrees ±1.7 ±1.7 ±1.6 ±4.9 ±3.5 ±2.8 ±5.8 ±6.2
Beamwidth, Vertical Tolerance, degrees ±0.9 ±0.8 ±1 ±0.4 ±0.4 ±0.4 ±0.3 ±0.3
USLS, beampeak to 20° above beampeak, dB 19 19 17 16 15 16 16 14
Front-to-Back Total Power at 180° ± 30°, dB 24 23 23 25 28 28 27 25
CPR at Boresight, dB 16 16 18 13 19 22 20 17
CPR at Sector, dB 10 10 10 9 9 8 8 2

Mechanical specifications

Wind Loading @ Velocity, frontal 239.0 N @ 150 km/h (53.7 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 201.0 N @ 150 km/h (45.2 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 507.0 N @ 150 km/h (114.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 254.0 N @ 150 km/h (57.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 456 mm | 17.953 in
Depth, packed 357 mm | 14.055 in
Length, packed 1643 mm | 64.685 in
Weight, gross 33.9 kg | 74.737 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
