This product was discontinued on: March 31, 2023

1 Replacement products available

RRV4-65A-R6
12-port sector antenna, 4x 694–960 and 8x 1695–2690 MHz, 65° HPBW, 6x RET

R2V4PX306R-V2

12-port sector antenna, 4x 698–960 and 8x 1710–2690 MHz, 65° HPBW, 6x RET with manual override. Bands cascaded SRET (Antenna 1 and Antenna 2).

Finish making your selections or clear them to view relevant specifications.

Specifications

General specifications

Antenna Type	Sector
Band	Multiband
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	ASA, UV stabilized
Radiator Material	Brass \| Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, high band	8
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	4
RF Connector Quantity, total	12

RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	2 female \| 2 male
Input Voltage	10–30 Vdc
Internal RET	High band (4) \| Low band (2)
Power Consumption, idle state, maximum	2 W
Power Consumption, normal conditions, maximum	13 W
Protocol	3GPP/AISG 2.0 (Single RET)

Width	641 mm \| 25.236 in
Depth	244 mm \| 9.606 in
Length	1607 mm \| 63.268 in
Net Weight, without mounting kit	48.2 kg \| 106.263 lb

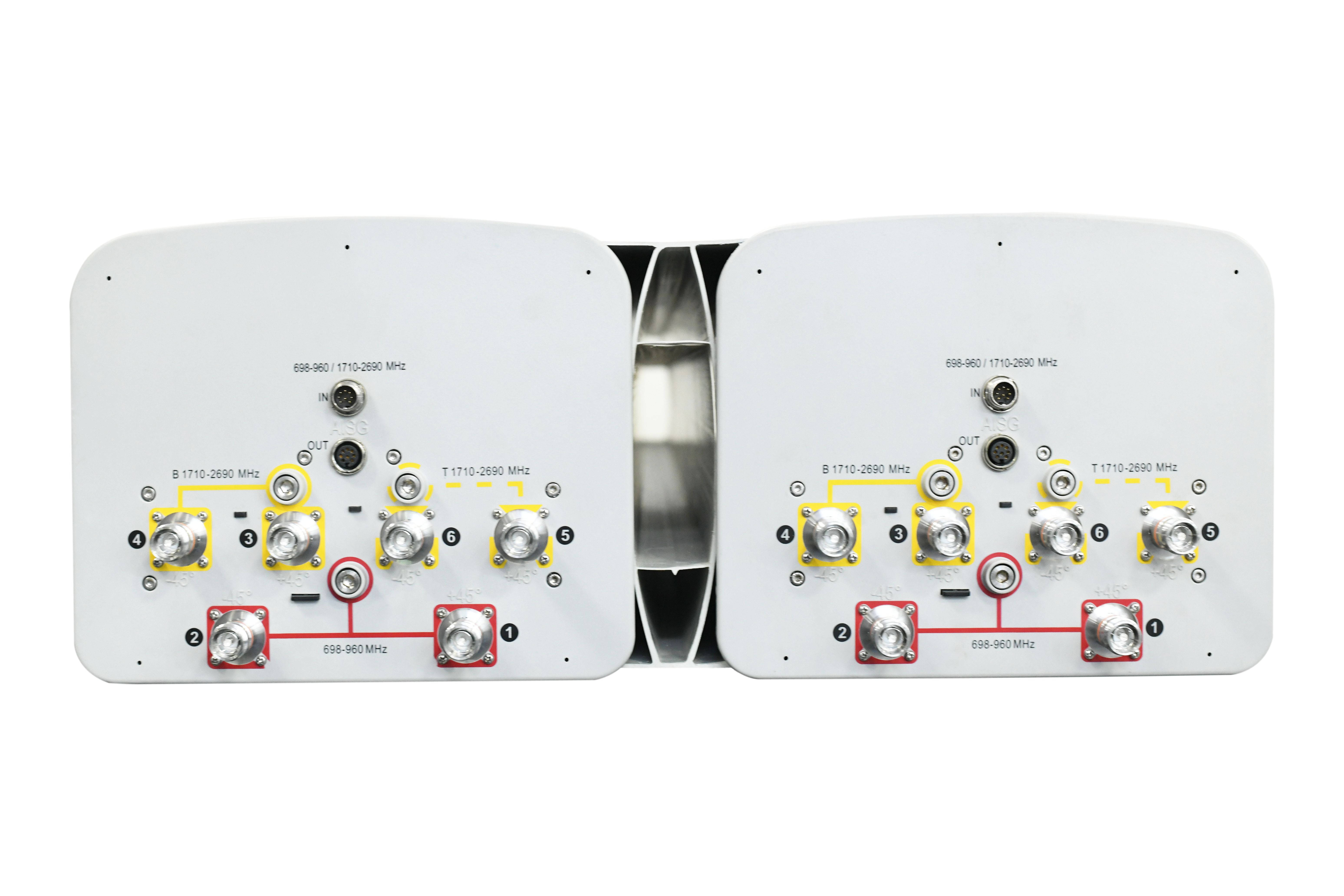

Click on image to enlarge.

Frequency Band, MHz	698–790	790–890	890–960	1710–1920	1920–2170	2300–2690
Gain, dBi	14.2	14.6	15.0	15.4	16.3	16.9
Beamwidth, Horizontal, degrees	65	63	60	62	57	58
Beamwidth, Vertical, degrees	16.3	14.5	13.3	13.7	12.1	9.9
Beam Tilt, degrees	0–10	0–10	0–10	0–10	0–10	0–10
USLS (First Lobe), dB	18	18	18	18	18	18
Front-to-Back Ratio at 180°, dB	34	32	30	32	35	37
CPR at Boresight, dB	23	16	15	22	21	14
Isolation, Cross Polarization, dB	25	25	25	25	25	25
Isolation, Inter-band, dB	30	30	30	30	30	30
VSWR \| Return loss, dB	1.43 \| 15.0	1.43 \| 15.0	1.43 \| 15.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150	-150	-150	-150
Input Power per Port, maximum, watts	300	300	300	250	250	250

Mechanical Tilt Range	0°–12°
Wind Loading @ Velocity, frontal	1,296.0 N @ 150 km/h (291.4 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	274.0 N @ 150 km/h (61.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	1,367.0 N @ 150 km/h (307.3 lbf @ 150 km/h)
Wind Speed, maximum	250 km/h (155 mph)

Agency	Classification
CE	Compliant with the relevant CE product directives
CHINA-ROHS	Below maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
UK-ROHS	Compliant
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance
