NNVVSSP-360S-FM
14-port quasi-omni antenna, 4x 698–896, 4x 1695–2690, 4x 3400-3800 and 2x 5150-5925 MHz, 360° horizontal beamwidth. Fixed and manual tilt.
Specifications
General specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | ASA, UV stabilized |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 10 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 14 |
Dimensions
| Length | 730 mm | 28.74 in |
| Net Weight, without mounting kit | 12.1 kg | 26.676 lb |
| Outer Diameter | 305 mm | 12.008 in |

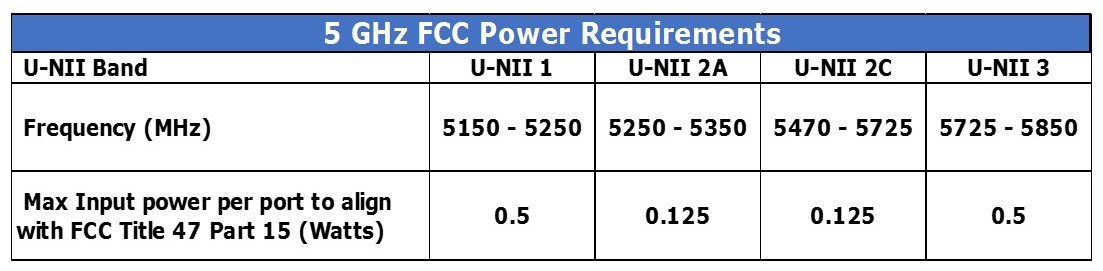

5 ghz port power table
| Click on image to enlarge. |

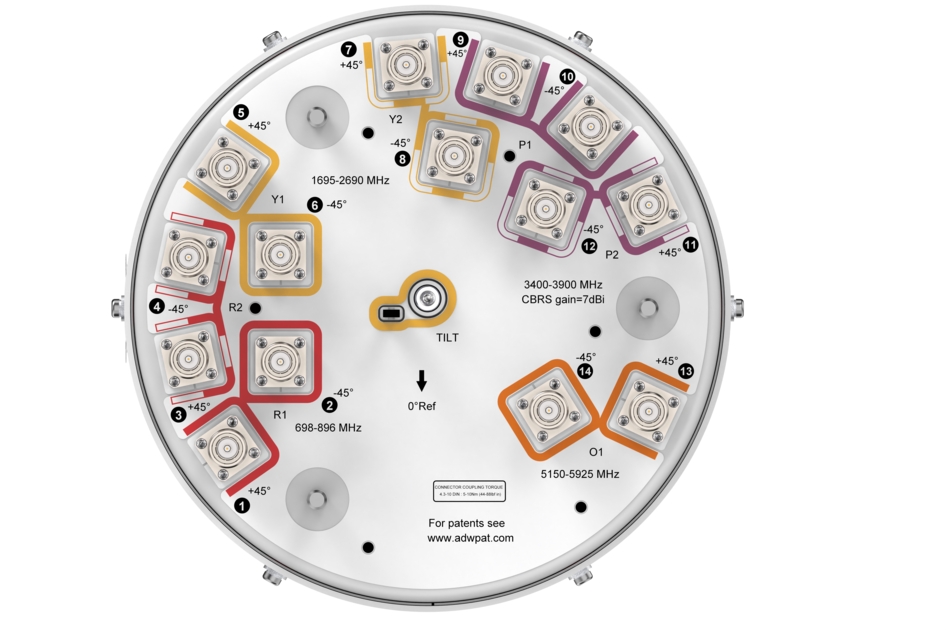

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2690 MHz | 3400 – 3800 MHz | 5150 – 5925 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1920 | 1920–2180 | 2300–2690 | 3400–3800 | 5150–5925 |
| Gain, dBi | 5.1 | 5.1 | 7.1 | 7.8 | 8.3 | 6.7 | 4.0 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 62.3 | 55.1 | 19.2 | 16.9 | 14.3 | 38.2 | 20.9 |
| Beam Tilt, degrees | 0 | 0 | 5–15 | 5–15 | 5–15 | 0 | 0 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -150 | ||
| Input Power per Port at 50°C, maximum, watts | 75 | 75 | 75 | 75 | 75 | 35 | 5 |
Electrical specifications, basta
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1920 | 1920–2180 | 2300–2690 | 3400–3800 | 5150–5925 |
| Gain by all Beam Tilts, average, dBi | 4.6 | 4.6 | 6.3 | 7.1 | 7.6 | 6.3 | 3.2 |
| Gain by all Beam Tilts Tolerance, dB | ±0.7 | ±0.7 | ±1.1 | ±1 | ±0.8 | ±0.7 | ±0.9 |
| Gain by Beam Tilt, average, dBi | 5 ° | 8.410 ° | 8.5 15 ° | 8.4 | 5 ° | 8.910 ° | 9.3 15 ° | 9.3 | 5 ° | 9.210 ° | 9.5 15 ° | 9.5 | ||||
| Beamwidth, Vertical Tolerance, degrees | ±12.9 | ±12.3 | ±2.4 | ±1.6 | ±1.6 | ±5.5 | ±5.3 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 122.0 N @ 150 km/h (27.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 122.0 N @ 150 km/h (27.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 122.0 N @ 150 km/h (27.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 418 mm | 16.457 in |
| Depth, packed | 404 mm | 15.906 in |
| Length, packed | 1000 mm | 39.37 in |
| Weight, gross | 16.7 kg | 36.817 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | ASA, UV stabilized |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 10 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 14 |
Dimensions
| Length | 730 mm | 28.74 in |
| Net Weight, without mounting kit | 12.1 kg | 26.676 lb |
| Outer Diameter | 305 mm | 12.008 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2690 MHz | 3400 – 3800 MHz | 5150 – 5925 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1920 | 1920–2180 | 2300–2690 | 3400–3800 | 5150–5925 |
| Gain, dBi | 5.1 | 5.1 | 7.1 | 7.8 | 8.3 | 6.7 | 4.0 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 62.3 | 55.1 | 19.2 | 16.9 | 14.3 | 38.2 | 20.9 |
| Beam Tilt, degrees | 0 | 0 | 5–15 | 5–15 | 5–15 | 0 | 0 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -150 | ||
| Input Power per Port at 50°C, maximum, watts | 75 | 75 | 75 | 75 | 75 | 35 | 5 |
Electrical specifications, basta
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1920 | 1920–2180 | 2300–2690 | 3400–3800 | 5150–5925 |
| Gain by all Beam Tilts, average, dBi | 4.6 | 4.6 | 6.3 | 7.1 | 7.6 | 6.3 | 3.2 |
| Gain by all Beam Tilts Tolerance, dB | ±0.7 | ±0.7 | ±1.1 | ±1 | ±0.8 | ±0.7 | ±0.9 |
| Gain by Beam Tilt, average, dBi | 5 ° | 8.4;10 ° | 8.5; 15 ° | 8.4 | 5 ° | 8.9;10 ° | 9.3; 15 ° | 9.3 | 5 ° | 9.2;10 ° | 9.5; 15 ° | 9.5 | ||||
| Beamwidth, Vertical Tolerance, degrees | ±12.9 | ±12.3 | ±2.4 | ±1.6 | ±1.6 | ±5.5 | ±5.3 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 122.0 N @ 150 km/h (27.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 122.0 N @ 150 km/h (27.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 122.0 N @ 150 km/h (27.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 418 mm | 16.457 in |
| Depth, packed | 404 mm | 15.906 in |
| Length, packed | 1000 mm | 39.37 in |
| Weight, gross | 16.7 kg | 36.817 lb |

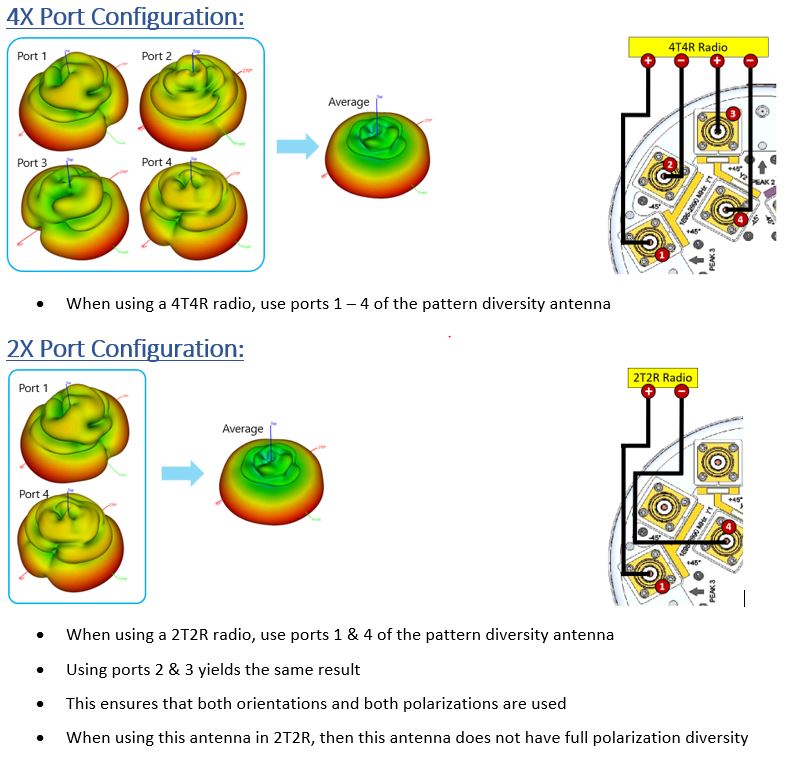

| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Documentation & downloads
Assembly drawing
Product information
Product specification
Assembly drawing
Product compliance documentation
Product information
Product specification
Related products & accessories
Related products
Base station antennas
-
![]()
MC-MNT-TOP Small Cell mounting kit with shroud. Capability of mounting round antenna types on top of a pole. For installations of 12 inch canister small cell antennas on top of poles with diameter from 86 to 168 mm (3.4” to 6.6”) -
![]()
MC-MNT-TOP-2 Small Cell mounting kit with shroud. Capability of mounting round antenna types on the top of a pole. For installations of 12 inch canister small cell antennas on top of poles with diameter from 160 to 216mm (6.3” to 8.5”) -
![]()
MC-MNT-TS1 Small Cell mounting kit. Capability of mounting round antenna types on top of a pole, on the side of a pole and on the side of a building.
Fiber, power, RF connectivity & accessories
-
![]()

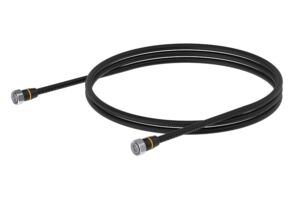

LS2-HMHM-2-D D-CLASS LSF2-50 SureFlex® Jumper with interface types 4.3-10 Male and 4.3-10 Male, 2 ft -
![]()
