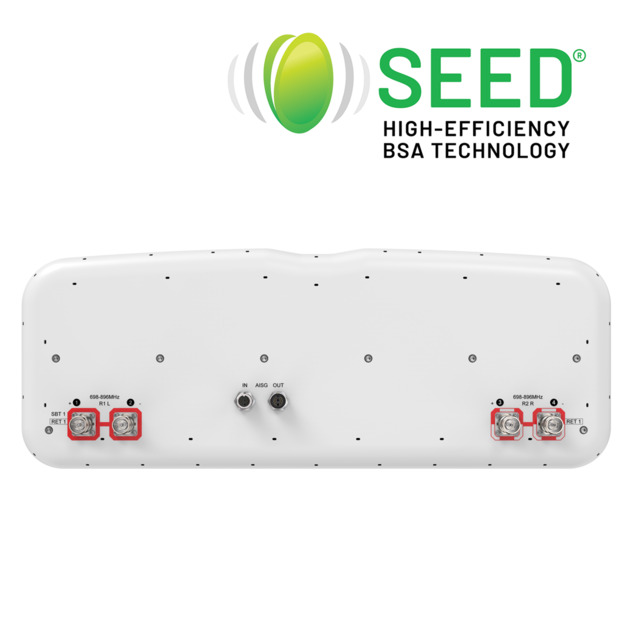

NN-65A-HG-R1B-V1
4-port Next Generation PerforMax™ Superior Coverage and Capacity sector antenna, 4x 698–896 MHz, 65° HPBW, 4 ft, 1x RET
Features and benefits
- Ideal 4T4R low band antenna for use with an FD mMIMO antenna
- Antenna optimized for higher gain with superior radiation efficiency
- Powered by Andrew's SEED® technology (Sustainable Energy Efficient Design)
- Superior patterns for enhanced interference mitigation resulting in improved SINR, higher throughput, and more capacity
- Best in class PIM immunity
- Internal SBTs allow remote RET control from the radio over the RF jumper cable
Specifications
General specifications
| Antenna Type | Sector with internal RET and bias tee |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 |
| Internal RET | Low band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 640 mm | 25.197 in |
| Depth | 235 mm | 9.252 in |
| Length | 1224 mm | 48.189 in |
| Net Weight, without mounting kit | 28 kg | 61.729 lb |

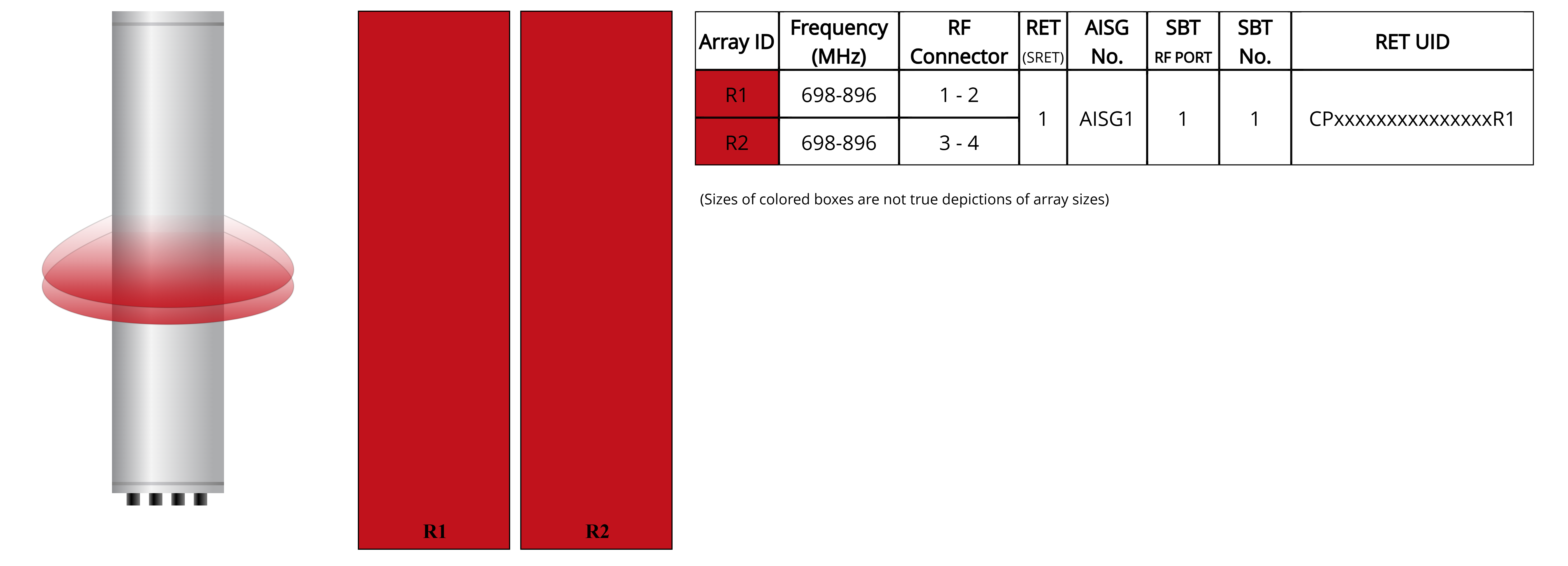

Array layout
| Click on image to enlarge. |

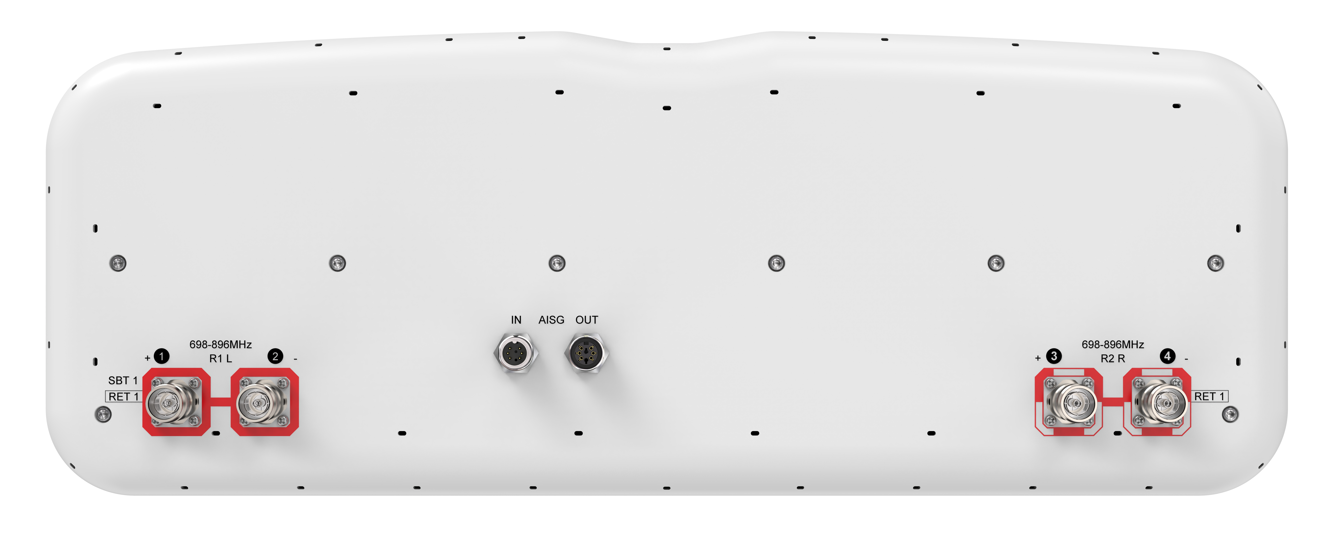

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 600 W @ 50 °C |
Electrical specifications
| R1,R2 | R1,R2 | |
| Frequency Band, MHz | 698–806 | 806–896 |
| RF Port | 1-4 | 1-4 |
| Gain, Maximum, dBi | 14.400 | 14.600 |
| Gain, dBi | 14.1 | 14.3 |
| Beamwidth, Horizontal, degrees | 65 | 62 |
| Beamwidth, Vertical, degrees | 18.5 | 16.6 |
| Beam Tilt, degrees | 2–16 | 2–16 |
| USLS (First Lobe), dB | 15 | 15 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 26 | 28 |
| CPR at Boresight, dB | 25 | 23 |
| Isolation, Cross Polarization, dB | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 473.0 N @ 150 km/h (106.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 128.0 N @ 150 km/h (28.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 603.0 N @ 150 km/h (135.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 295.0 N @ 150 km/h (66.3 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 752 mm | 29.606 in |
| Depth, packed | 377 mm | 14.843 in |
| Length, packed | 1379 mm | 54.291 in |
| Weight, gross | 41 kg | 90.389 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Sector with internal RET and bias tee |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 |
| Internal RET | Low band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 640 mm | 25.197 in |
| Depth | 235 mm | 9.252 in |
| Length | 1224 mm | 48.189 in |
| Net Weight, without mounting kit | 28 kg | 61.729 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 600 W @ 50 °C |
Electrical specifications
| R1,R2 | R1,R2 | |
| Frequency Band, MHz | 698–806 | 806–896 |
| RF Port | 1-4 | 1-4 |
| Gain, Maximum, dBi | 14.400 | 14.600 |
| Gain, dBi | 14.1 | 14.3 |
| Beamwidth, Horizontal, degrees | 65 | 62 |
| Beamwidth, Vertical, degrees | 18.5 | 16.6 |
| Beam Tilt, degrees | 2–16 | 2–16 |
| USLS (First Lobe), dB | 15 | 15 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 26 | 28 |
| CPR at Boresight, dB | 25 | 23 |
| Isolation, Cross Polarization, dB | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 473.0 N @ 150 km/h (106.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 128.0 N @ 150 km/h (28.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 603.0 N @ 150 km/h (135.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 295.0 N @ 150 km/h (66.3 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 752 mm | 29.606 in |
| Depth, packed | 377 mm | 14.843 in |
| Length, packed | 1379 mm | 54.291 in |
| Weight, gross | 41 kg | 90.389 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
