  5. NHHSS-45C-R2BT10
Warning Icon
This product was discontinued on: March 30, 2023

For other alternatives, please contact us for more information.

1 Replacement products available
  • NHHSS-45C-R2BT4
    10-port sector antenna, 2x 698–896, 4x 1695–2200 MHz and 4x 3100-4200, 45° HPBW, 2x RETs and 2x SBTs. Both high bands share the same electrical tilt.

NHHSS-45C-R2BT10

10-port sector antenna, 2x 698–896, 4x 1695–2200 MHz and 4x 3100-4200, 45° HPBW, 2x RETs and 2x SBTs. Both high bands share the same electrical tilt.

Finish making your selections or clear them to view relevant specifications.
Features and benefits
  • Perfect antenna to add 3.5GHz CBRS to macro sites
  • Low band and mid band performance mirrors the performance of existing NHH hex port antennas
  • Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable
  • Separate RS-485 RET input/output for low and high band
  • Interleaved dipole technology providing for attractive, low wind load mechanical package
  • One LB RET and one HB RET. Both high bands are controlled by one RET to ensure same tilt level for 4x MIMO

General specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 10

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET Low band (1) | Mid band (1)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0

Dimensions

Width 457 mm | 17.992 in
Depth 178 mm | 7.008 in
Length 2437 mm | 95.945 in
Net Weight, antenna only 41.5 kg | 91.492 lb

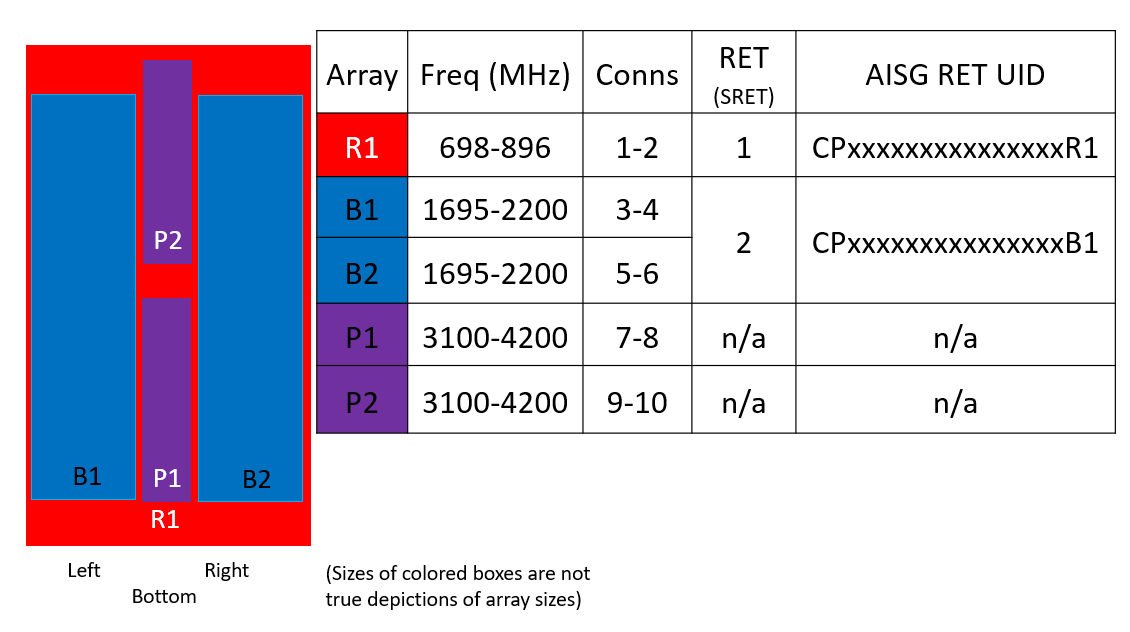

Array layout

Click on image to enlarge.

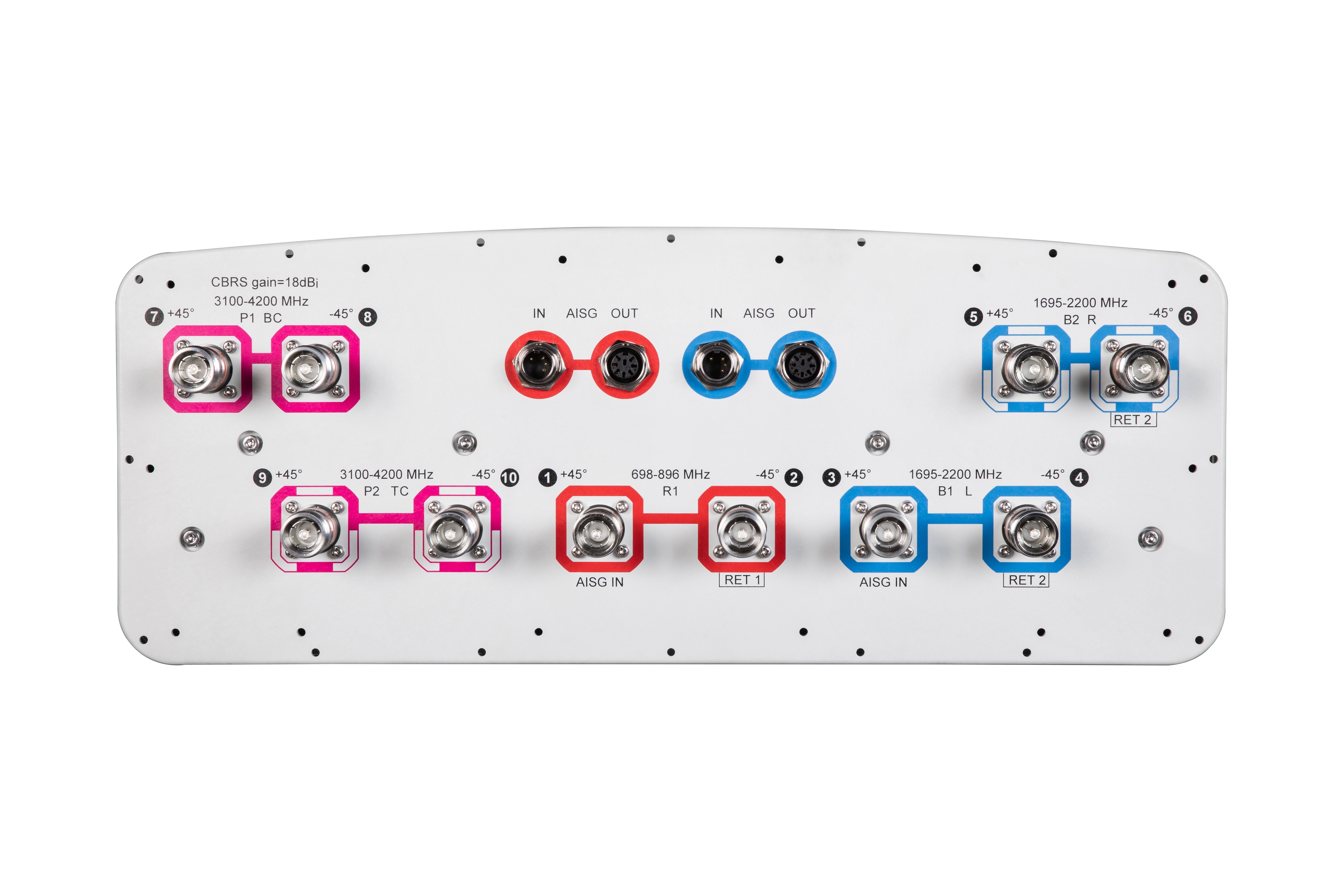

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2200 MHz | 3100 – 4200 MHz
Polarization ±45°
Total Input Power, maximum 1,000 W @ 50 °C

Electrical specifications

R1 R1 B1,B2 B1,B2 B1,B2 P1,P2 P1,P2 P1,P2
Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3100–3550 3550–3700 3700–4200
RF Port 1,2 1,2 3,4,5,6 3,4,5,6 3,4,5,6 7,8,9,10 7,8,9,10 7,8,9,10
Gain, dBi 18.0 18.6 19.3 19.7 20.3 16.8 17.1 16.6
Beamwidth, Horizontal, degrees 46 41 45 43 41 49 43 41
Beamwidth, Vertical, degrees 9.3 8.2 5.7 5.4 5.1 9.8 8.7 8.9
Beam Tilt, degrees 0–10 0–10 0–8 0–8 0–8 10 10 10
USLS (First Lobe), dB 18 22 15 16 16 16 16 13
Front-to-Back Ratio at 180°, dB 32 34 33 34 36 32 31 28
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 30 30 28 28 28 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -145 -145 -145
Input Power per Port at 50°C, maximum, watts 250 250 250 250 250 100 100 100

Electrical specifications, basta

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3100–3550 3550–3700 3700–4200
Gain by all Beam Tilts, average, dBi 17.6 18.4 18.9 19.5 19.8 16.5 16.8 16.2
Gain by all Beam Tilts Tolerance, dB ±0.8 ±0.3 ±0.8 ±0.4 ±0.5 ±0.4 ±0.4 ±0.8
Beamwidth, Horizontal Tolerance, degrees ±2 ±2 ±3 ±2 ±2 ±5 ±4 ±5
Beamwidth, Vertical Tolerance, degrees ±0.6 ±0.3 ±0.3 ±0.2 ±0.4 ±1 ±0.5 ±1.5
USLS, beampeak to 20° above beampeak, dB 16 15 15 15 15 15 15 13
Front-to-Back Total Power at 180° ± 30°, dB 24 25 24 26 27 26 25 19
CPR at Boresight, dB 20 21 19 19 17 15 16 14
CPR at Sector, dB 13 10 3 3 4 8 8 5

Mechanical specifications

Wind Loading @ Velocity, frontal 1,485.0 N @ 150 km/h (333.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 315.0 N @ 150 km/h (70.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,485.0 N @ 150 km/h (333.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 1,304.0 N @ 150 km/h (293.2 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 526 mm | 20.709 in
Depth, packed 283 mm | 11.142 in
Length, packed 2604 mm | 102.520 in
Weight, gross 60.5 kg | 133.380 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

General specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 10

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET Low band (1) | Mid band (1)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0

Dimensions

Width 457 mm | 17.992 in
Depth 178 mm | 7.008 in
Length 2437 mm | 95.945 in
Net Weight, antenna only 41.5 kg | 91.492 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2200 MHz | 3100 – 4200 MHz
Polarization ±45°
Total Input Power, maximum 1,000 W @ 50 °C

Electrical specifications

R1 R1 B1,B2 B1,B2 B1,B2 P1,P2 P1,P2 P1,P2
Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3100–3550 3550–3700 3700–4200
RF Port 1,2 1,2 3,4,5,6 3,4,5,6 3,4,5,6 7,8,9,10 7,8,9,10 7,8,9,10
Gain, dBi 18.0 18.6 19.3 19.7 20.3 16.8 17.1 16.6
Beamwidth, Horizontal, degrees 46 41 45 43 41 49 43 41
Beamwidth, Vertical, degrees 9.3 8.2 5.7 5.4 5.1 9.8 8.7 8.9
Beam Tilt, degrees 0–10 0–10 0–8 0–8 0–8 10 10 10
USLS (First Lobe), dB 18 22 15 16 16 16 16 13
Front-to-Back Ratio at 180°, dB 32 34 33 34 36 32 31 28
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 30 30 28 28 28 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -145 -145 -145
Input Power per Port at 50°C, maximum, watts 250 250 250 250 250 100 100 100

Electrical specifications, basta

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3100–3550 3550–3700 3700–4200
Gain by all Beam Tilts, average, dBi 17.6 18.4 18.9 19.5 19.8 16.5 16.8 16.2
Gain by all Beam Tilts Tolerance, dB ±0.8 ±0.3 ±0.8 ±0.4 ±0.5 ±0.4 ±0.4 ±0.8
Beamwidth, Horizontal Tolerance, degrees ±2 ±2 ±3 ±2 ±2 ±5 ±4 ±5
Beamwidth, Vertical Tolerance, degrees ±0.6 ±0.3 ±0.3 ±0.2 ±0.4 ±1 ±0.5 ±1.5
USLS, beampeak to 20° above beampeak, dB 16 15 15 15 15 15 15 13
Front-to-Back Total Power at 180° ± 30°, dB 24 25 24 26 27 26 25 19
CPR at Boresight, dB 20 21 19 19 17 15 16 14
CPR at Sector, dB 13 10 3 3 4 8 8 5

Mechanical specifications

Wind Loading @ Velocity, frontal 1,485.0 N @ 150 km/h (333.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 315.0 N @ 150 km/h (70.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,485.0 N @ 150 km/h (333.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 1,304.0 N @ 150 km/h (293.2 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 526 mm | 20.709 in
Depth, packed 283 mm | 11.142 in
Length, packed 2604 mm | 102.520 in
Weight, gross 60.5 kg | 133.380 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

Assembly drawing

Line drawing
