NHH-85C-R2B
6-port sector antenna, 2x 698–896 and 4x 1695–2360 MHz, 85° HPBW, 2x RET. Both high bands share the same electrical tilt.
Features and benefits
- Interleaved dipole technology providing for attractive, low wind load mechanical package
- Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable
- Separate RS-485 RET input/output for low and high band
- One RET for low band and one RET for both high bands to ensure same tilt level for 4x Rx or 4x MIMO
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 6 |
Remote electrical tilt (ret) information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 3 |
| Internal RET | High band (1) | Low band (1) |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 13 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 301 mm | 11.85 in |
| Depth | 180 mm | 7.087 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, without mounting kit | 23.1 kg | 50.927 lb |

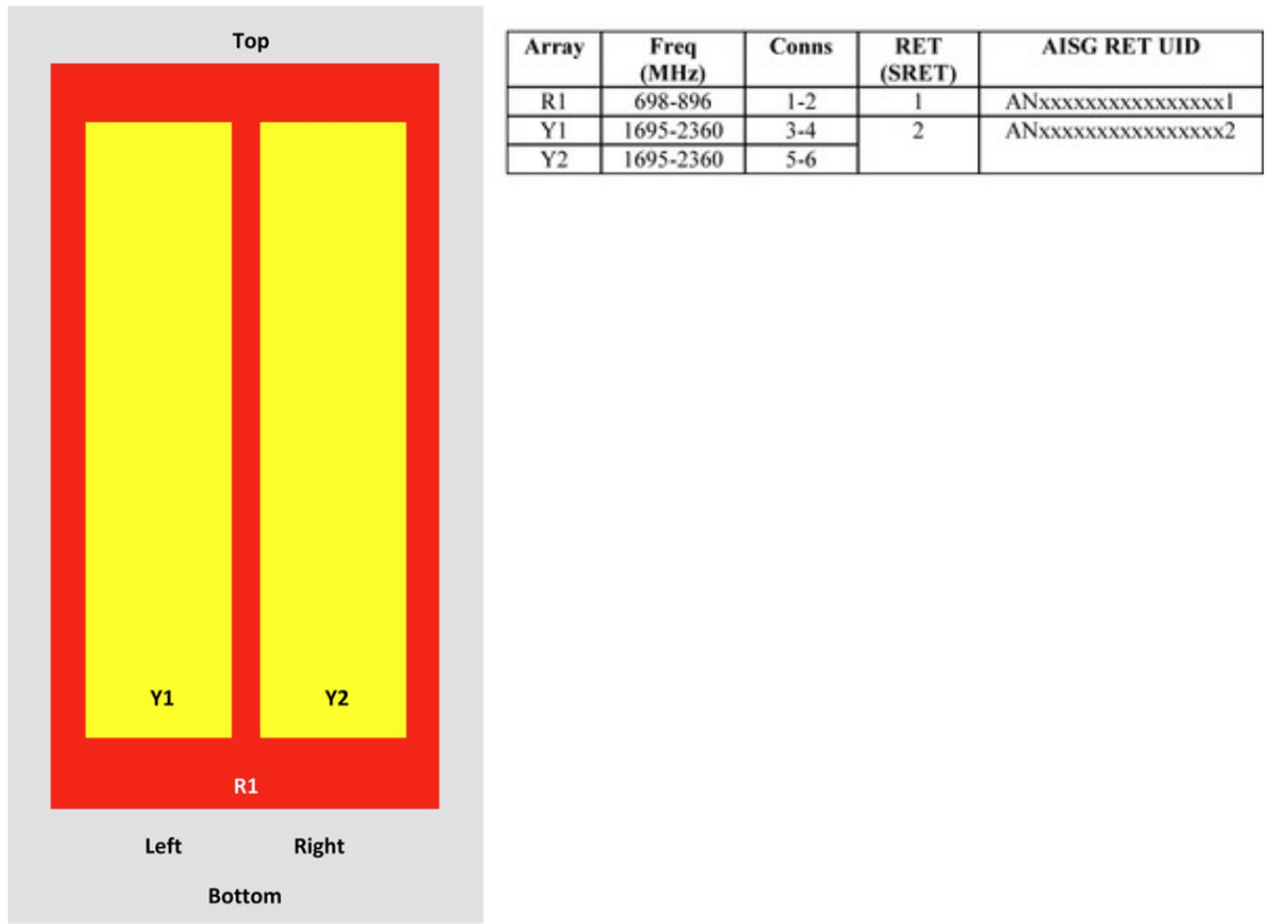

Array layout
| Click on image to enlarge. |

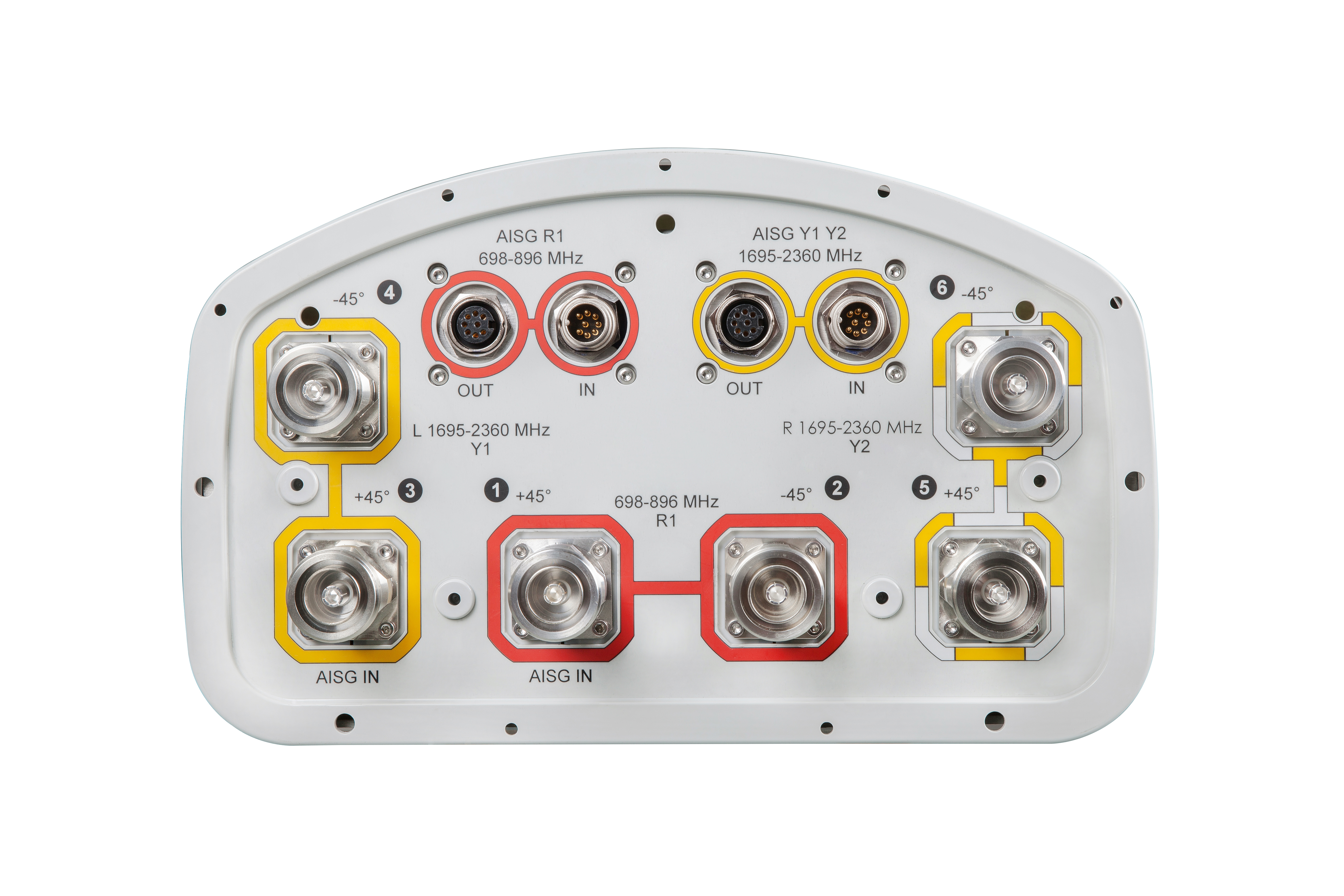

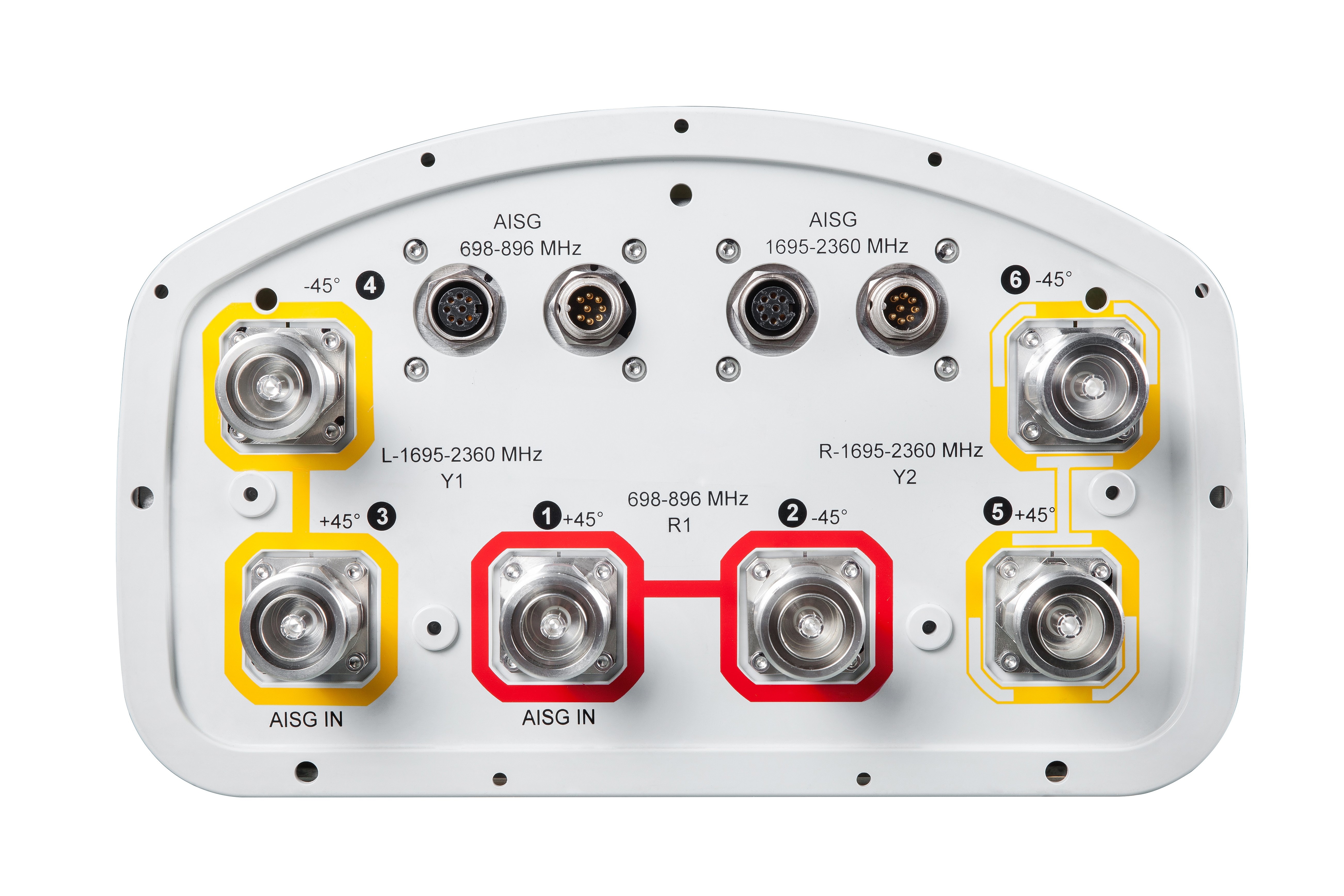

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2360 |
| Gain, dBi | 15.5 | 15.6 | 17.1 | 17.5 | 17.9 | 17.9 |
| Beamwidth, Horizontal, degrees | 82 | 83 | 82 | 78 | 78 | 80 |
| Beamwidth, Vertical, degrees | 8.9 | 8.1 | 5.6 | 5.3 | 5 | 4.7 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–8 | 0–8 | 0–8 | 0–8 |
| USLS (First Lobe), dB | 17 | 17 | 15 | 18 | 19 | 18 |
| Front-to-Back Ratio at 180°, dB | 30 | 30 | 34 | 30 | 30 | 28 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 30 | 30 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 | 200 |
Electrical specifications, basta
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2360 |
| Gain by all Beam Tilts, average, dBi | 15.4 | 15.4 | 16.6 | 17.3 | 17.6 | 17.7 |
| Gain by all Beam Tilts Tolerance, dB | ±0.2 | ±0.3 | ±0.6 | ±0.3 | ±0.4 | ±0.4 |
| Gain by Beam Tilt, average, dBi | 0 ° | 15.2 5 ° | 15.4 10 ° | 15.4 |
0 ° | 15.1 5 ° | 15.5 10 ° | 15.6 |
0 ° | 16.6 4 ° | 16.6 8 ° | 16.4 |
0 ° | 17.3 4 ° | 17.3 8 ° | 17.2 |
0 ° | 17.6 4 ° | 17.7 8 ° | 17.5 |
0 ° | 17.6 4 ° | 17.8 8 ° | 17.4 |
| Beamwidth, Horizontal Tolerance, degrees | ±1.7 | ±1.5 | ±4.5 | ±2.4 | ±3.2 | ±2 |
| Beamwidth, Vertical Tolerance, degrees | ±0.4 | ±0.4 | ±0.2 | ±0.2 | ±0.3 | ±0.3 |
| USLS, beampeak to 20° above beampeak, dB | 16 | 15 | 14 | 15 | 16 | 17 |
| Front-to-Back Total Power at 180° ± 30°, dB | 24 | 24 | 26 | 26 | 26 | 25 |
| CPR at Boresight, dB | 19 | 20 | 19 | 19 | 19 | 21 |
| CPR at Sector, dB | 13 | 15 | 12 | 12 | 11 | 7 |
Mechanical specifications
| Effective Projective Area (EPA), frontal | 0.37 m² | 3.983 ft² |
| Effective Projective Area (EPA), lateral | 0.31 m² | 3.337 ft² |
| Mechanical Tilt Range | 0°–11° |
| Wind Loading @ Velocity, frontal | 393.0 N @ 150 km/h (88.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 330.0 N @ 150 km/h (74.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 757.0 N @ 150 km/h (170.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 398.0 N @ 150 km/h (89.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 380 mm | 14.961 in |
| Depth, packed | 295 mm | 11.614 in |
| Length, packed | 2571 mm | 101.221 in |
| Weight, gross | 30.4 kg | 67.020 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 6 |
Remote electrical tilt (ret) information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 3 |
| Internal RET | High band (1) | Low band (1) |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 13 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 301 mm | 11.85 in |
| Depth | 180 mm | 7.087 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, without mounting kit | 23.1 kg | 50.927 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2360 |
| Gain, dBi | 15.5 | 15.6 | 17.1 | 17.5 | 17.9 | 17.9 |
| Beamwidth, Horizontal, degrees | 82 | 83 | 82 | 78 | 78 | 80 |
| Beamwidth, Vertical, degrees | 8.9 | 8.1 | 5.6 | 5.3 | 5 | 4.7 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–8 | 0–8 | 0–8 | 0–8 |
| USLS (First Lobe), dB | 17 | 17 | 15 | 18 | 19 | 18 |
| Front-to-Back Ratio at 180°, dB | 30 | 30 | 34 | 30 | 30 | 28 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 30 | 30 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 | 200 |
Electrical specifications, basta
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2360 |
| Gain by all Beam Tilts, average, dBi | 15.4 | 15.4 | 16.6 | 17.3 | 17.6 | 17.7 |
| Gain by all Beam Tilts Tolerance, dB | ±0.2 | ±0.3 | ±0.6 | ±0.3 | ±0.4 | ±0.4 |
| Gain by Beam Tilt, average, dBi | 0 ° | 15.2; 5 ° | 15.4; 10 ° | 15.4 | 0 ° | 15.1; 5 ° | 15.5; 10 ° | 15.6 | 0 ° | 16.6; 4 ° | 16.6; 8 ° | 16.4 | 0 ° | 17.3; 4 ° | 17.3; 8 ° | 17.2 | 0 ° | 17.6; 4 ° | 17.7; 8 ° | 17.5 | 0 ° | 17.6; 4 ° | 17.8; 8 ° | 17.4 |
| Beamwidth, Horizontal Tolerance, degrees | ±1.7 | ±1.5 | ±4.5 | ±2.4 | ±3.2 | ±2 |
| Beamwidth, Vertical Tolerance, degrees | ±0.4 | ±0.4 | ±0.2 | ±0.2 | ±0.3 | ±0.3 |
| USLS, beampeak to 20° above beampeak, dB | 16 | 15 | 14 | 15 | 16 | 17 |
| Front-to-Back Total Power at 180° ± 30°, dB | 24 | 24 | 26 | 26 | 26 | 25 |
| CPR at Boresight, dB | 19 | 20 | 19 | 19 | 19 | 21 |
| CPR at Sector, dB | 13 | 15 | 12 | 12 | 11 | 7 |
Mechanical specifications
| Effective Projective Area (EPA), frontal | 0.37 m² | 3.983 ft² |
| Effective Projective Area (EPA), lateral | 0.31 m² | 3.337 ft² |
| Mechanical Tilt Range | 0°–11° |
| Wind Loading @ Velocity, frontal | 393.0 N @ 150 km/h (88.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 330.0 N @ 150 km/h (74.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 757.0 N @ 150 km/h (170.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 398.0 N @ 150 km/h (89.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 380 mm | 14.961 in |
| Depth, packed | 295 mm | 11.614 in |
| Length, packed | 2571 mm | 101.221 in |
| Weight, gross | 30.4 kg | 67.020 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
