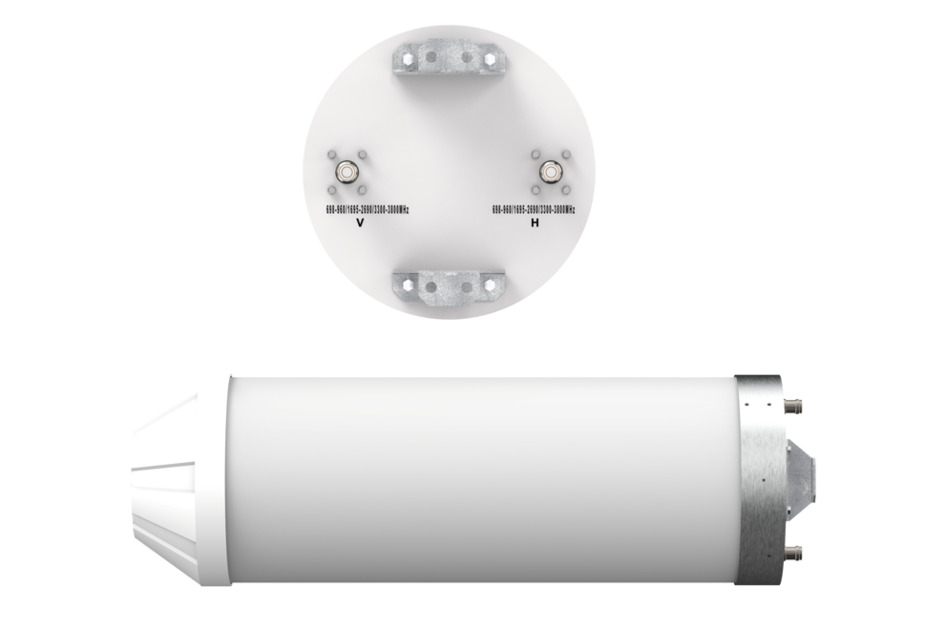

LP-HA-0L0
Log Periodic Outdoor Antenna, 0.8m, 690-3800MHz
Features and benefits
- 2 ports Log Periodic Antenna 690-3800MHz
Specifications
General specifications
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Rear |
| RF Connector Quantity, total | 2 |
Dimensions
| Length | 785 mm | 30.906 in |
| Net Weight, without mounting kit | 5 kg | 11.023 lb |
| Outer Diameter | 300 mm | 11.811 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 690 – 960 MHz | 1695 – 2690 MHz | 3300 – 3800 MHz |
| Polarization | Horizontal | Vertical |
Electrical specifications
| Frequency Band, MHz | 690–960 | 1695–2170 | 2170–2690 | 3300–3800 |
| RF Port | 1,2 | 1,2 | 1,2 | 1,2 |
| Gain, dBi | 9.5 | 10.0 | 10.0 | 9.5 |
| Beamwidth, Horizontal, degrees | 75 | 65 | 65 | 50 |
| Beamwidth, Vertical, degrees | 55 | 45 | 45 | 40 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 15 | 20 | 20 | 20 |
| Isolation, Cross Polarization, dB | 20 | 20 | 20 | 20 |
| VSWR | Return loss, dB | 1.8 | 10.8 | 1.6 | 12.7 | 1.6 | 12.7 | 1.6 | 12.7 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 62.0 N @ 150 km/h (13.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 175.0 N @ 150 km/h (39.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 102.0 N @ 150 km/h (22.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 350 mm | 13.780 in |
| Depth, packed | 350 mm | 13.780 in |
| Length, packed | 1000 mm | 39.370 in |
| Weight, gross | 9.5 kg | 20.944 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
General specifications
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Rear |
| RF Connector Quantity, total | 2 |
Dimensions
| Length | 785 mm | 30.906 in |
| Net Weight, without mounting kit | 5 kg | 11.023 lb |
| Outer Diameter | 300 mm | 11.811 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 690 – 960 MHz | 1695 – 2690 MHz | 3300 – 3800 MHz |
| Polarization | Horizontal | Vertical |
Electrical specifications
| Frequency Band, MHz | 690–960 | 1695–2170 | 2170–2690 | 3300–3800 |
| RF Port | 1,2 | 1,2 | 1,2 | 1,2 |
| Gain, dBi | 9.5 | 10.0 | 10.0 | 9.5 |
| Beamwidth, Horizontal, degrees | 75 | 65 | 65 | 50 |
| Beamwidth, Vertical, degrees | 55 | 45 | 45 | 40 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 15 | 20 | 20 | 20 |
| Isolation, Cross Polarization, dB | 20 | 20 | 20 | 20 |
| VSWR | Return loss, dB | 1.8 | 10.8 | 1.6 | 12.7 | 1.6 | 12.7 | 1.6 | 12.7 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 62.0 N @ 150 km/h (13.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 175.0 N @ 150 km/h (39.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 102.0 N @ 150 km/h (22.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 350 mm | 13.780 in |
| Depth, packed | 350 mm | 13.780 in |
| Length, packed | 1000 mm | 39.370 in |
| Weight, gross | 9.5 kg | 20.944 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
