LNX-8514DS-A1M

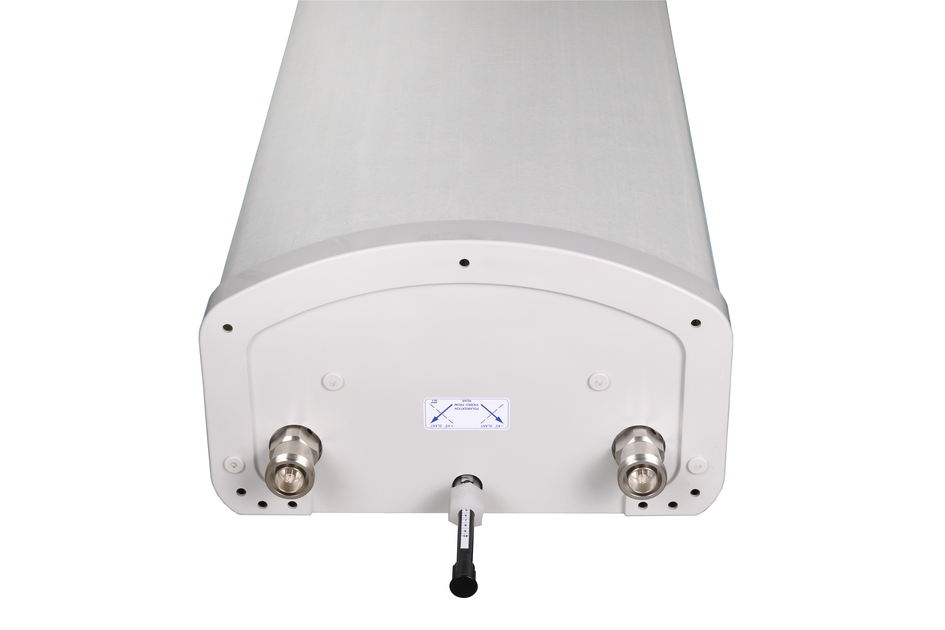

2-port sector antenna, 698–896 MHz, 85° HPBW, ATM200

Finish making your selections or clear them to view relevant specifications.

Features and benefits

Great solution to maximize network coverage and capacity
Excellent front-to-back ratio, USLS, VSWR, and PIM specifications to enhance network quality
Fully compatible with ANDREW remote electrical tilt system for greater OpEx savings
Vertical beam optimized for capacity efficiency
The RF connectors are designed for IP67 rating and the radome for IP56 rating

Specifications

General specifications

Antenna Type	Sector
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	Fiberglass, UV resistant
Radiator Material	Aluminum
RF Connector Interface	7-16 DIN Female
RF Connector Location	Bottom
RF Connector Quantity, high band	0
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	2
RF Connector Quantity, total	2

Width	301 mm \| 11.85 in
Depth	181 mm \| 7.126 in
Length	2449 mm \| 96.417 in
Net Weight, without mounting kit	23.1 kg \| 50.927 lb

Frequency Band, MHz	698–806	806–896
Gain, dBi	16.1	16.8
Beamwidth, Horizontal, degrees	85	84
Beamwidth, Vertical, degrees	8.6	7.8
Beam Tilt, degrees	0–8	0–8
USLS (First Lobe), dB	17	17
Front-to-Back Ratio at 180°, dB	27	27
CPR at Boresight, dB	18	18
CPR at Sector, dB	12	11
Isolation, Cross Polarization, dB	30	30
VSWR \| Return loss, dB	1.4 \| 15.6	1.4 \| 15.6
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153
Input Power per Port, maximum, watts	400	400

Wind Loading @ Velocity, frontal	879.0 N @ 150 km/h (197.6 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	273.0 N @ 150 km/h (61.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	1,033.0 N @ 150 km/h (232.2 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted

Antenna Type	Sector
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	Fiberglass, UV resistant
Radiator Material	Aluminum
RF Connector Interface	7-16 DIN Female
RF Connector Location	Bottom
RF Connector Quantity, high band	0
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	2
RF Connector Quantity, total	2

Width	301 mm \| 11.85 in
Depth	181 mm \| 7.126 in
Length	2449 mm \| 96.417 in
Net Weight, without mounting kit	23.1 kg \| 50.927 lb

Frequency Band, MHz	698–806	806–896
Gain, dBi	16.1	16.8
Beamwidth, Horizontal, degrees	85	84
Beamwidth, Vertical, degrees	8.6	7.8
Beam Tilt, degrees	0–8	0–8
USLS (First Lobe), dB	17	17
Front-to-Back Ratio at 180°, dB	27	27
CPR at Boresight, dB	18	18
CPR at Sector, dB	12	11
Isolation, Cross Polarization, dB	30	30
VSWR \| Return loss, dB	1.4 \| 15.6	1.4 \| 15.6
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153
Input Power per Port, maximum, watts	400	400

Wind Loading @ Velocity, frontal	879.0 N @ 150 km/h (197.6 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	273.0 N @ 150 km/h (61.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	1,033.0 N @ 150 km/h (232.2 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
