JAVV-65C-R3B

8-port sector antenna, 2x 698–803, 2x 824-894 and 4x 1695–2690 MHz, 65° HPBW, 3x RET and low bands have diplexers. Internal SBT's on first LB(Port 1) and first HB(Port 5)

Finish making your selections or clear them to view relevant specifications.
Features and benefits
  • Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable
  • One RET for 700MHz, one RET for 850MHz, and one RET for both high bands to ensure same tilt level for 4x Rx or 4x MIMO
  • Internal filter on low band and interleaved dipole technology providing for attractive, low wind load mechanical package
  • Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios (Supports_r)

General specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 4
RF Connector Quantity, total 8

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal Bias Tee Port 1 | Port 5
Internal RET High band (1) | Low band (2)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 350 mm | 13.78 in
Depth 208 mm | 8.189 in
Length 2438 mm | 95.984 in
Net Weight, without mounting kit 35.9 kg | 79.146 lb

Array layout

Click on image to enlarge.

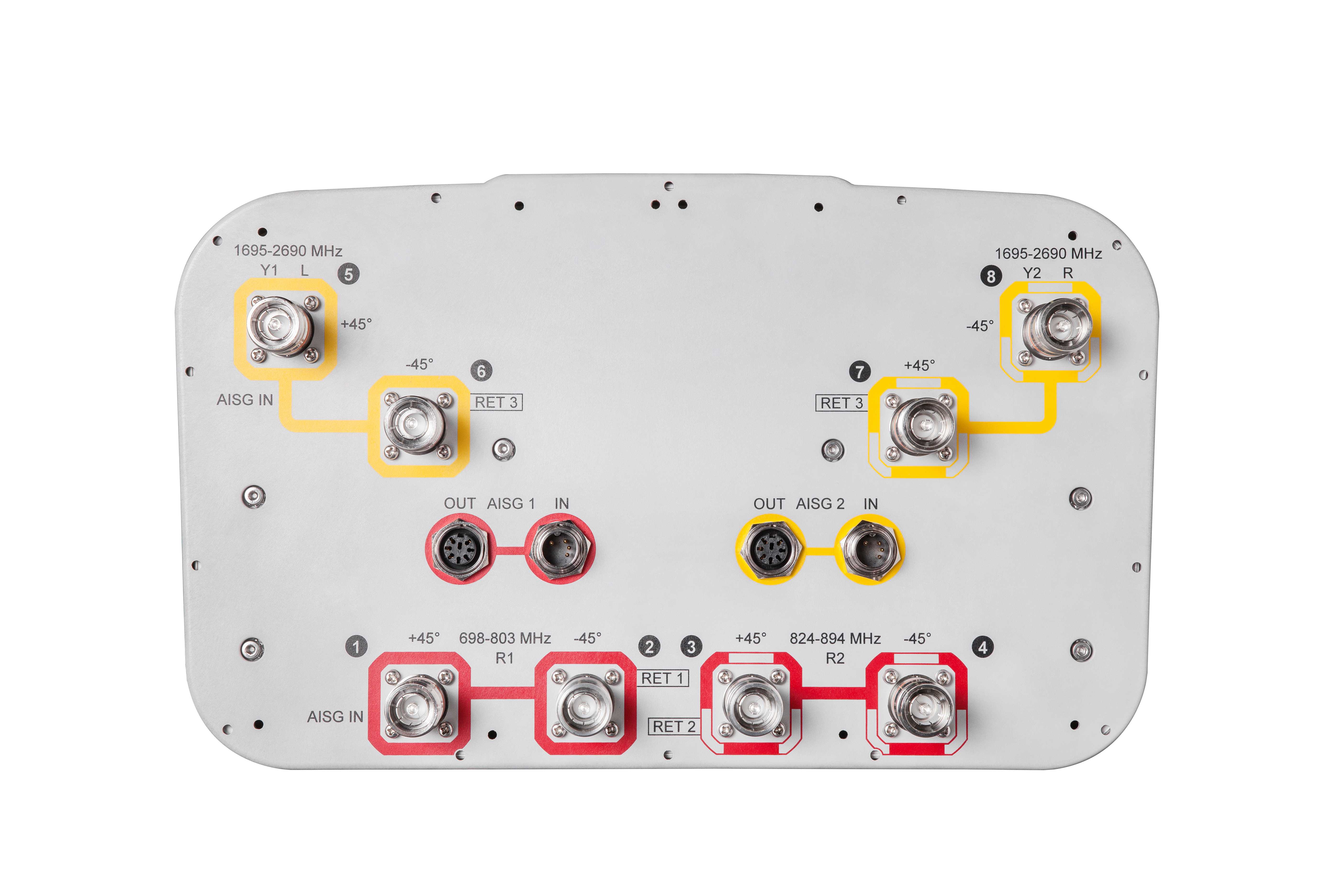

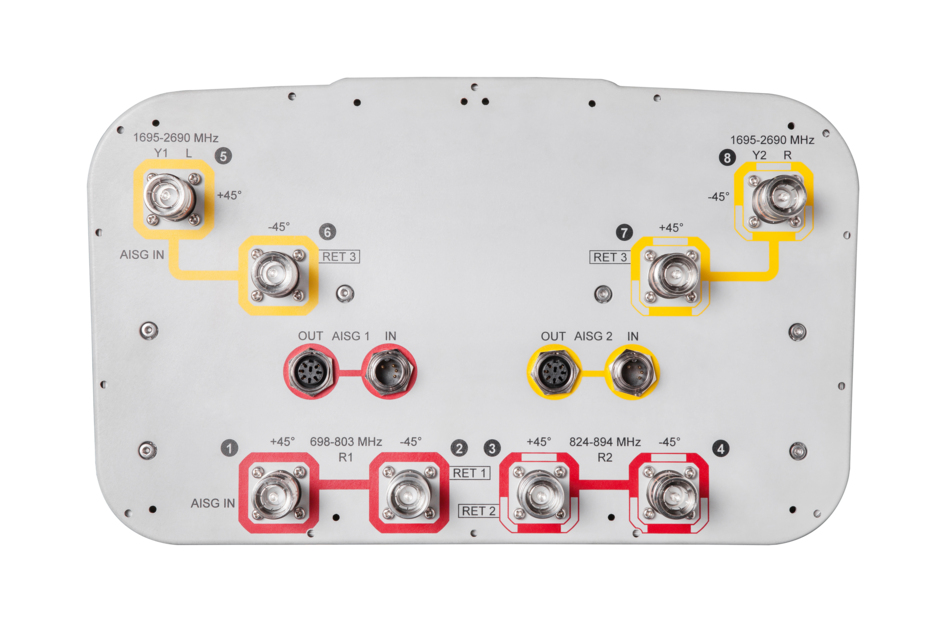

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 803 MHz | 824 – 894 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical specifications

Frequency Band, MHz 698–803 824–894 1695–1880 1850–1990 1920–2180 2300–2690
Gain, dBi 15.5 16.2 17.2 17.6 17.7 18.0
Beamwidth, Horizontal, degrees 68 65 63 63 65 67
Beamwidth, Vertical, degrees 10 8.5 7.2 6.8 6.3 5.2
Beam Tilt, degrees 1–12 1–12 0–10 0–10 0–10 0–10
USLS (First Lobe), dB 23 20 24 24 23 24
Front-to-Back Ratio at 180°, dB 30 32 36 38 37 37
CPR at Boresight, dB 18 19 22 22 22 22
Isolation, Cross Polarization, dB 26 26 26 26 26 26
Isolation, Inter-band, dB 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 200 200 125 125 125 125

Mechanical specifications

Effective Projective Area (EPA), frontal 0.4 m² | 4.306 ft²
Effective Projective Area (EPA), lateral 0.34 m² | 3.66 ft²
Mechanical Tilt Range 0°–12°
Wind Loading @ Velocity, frontal 425.0 N @ 150 km/h (95.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 361.0 N @ 150 km/h (81.2 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 900.0 N @ 150 km/h (202.3 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 451.0 N @ 150 km/h (101.4 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 456 mm | 17.953 in
Depth, packed 357 mm | 14.055 in
Length, packed 2585 mm | 101.772 in
Weight, gross 49.5 kg | 109.129 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

General specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 4
RF Connector Quantity, total 8

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal Bias Tee Port 1 | Port 5
Internal RET High band (1) | Low band (2)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 350 mm | 13.78 in
Depth 208 mm | 8.189 in
Length 2438 mm | 95.984 in
Net Weight, without mounting kit 35.9 kg | 79.146 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 803 MHz | 824 – 894 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical specifications

Frequency Band, MHz 698–803 824–894 1695–1880 1850–1990 1920–2180 2300–2690
Gain, dBi 15.5 16.2 17.2 17.6 17.7 18.0
Beamwidth, Horizontal, degrees 68 65 63 63 65 67
Beamwidth, Vertical, degrees 10 8.5 7.2 6.8 6.3 5.2
Beam Tilt, degrees 1–12 1–12 0–10 0–10 0–10 0–10
USLS (First Lobe), dB 23 20 24 24 23 24
Front-to-Back Ratio at 180°, dB 30 32 36 38 37 37
CPR at Boresight, dB 18 19 22 22 22 22
Isolation, Cross Polarization, dB 26 26 26 26 26 26
Isolation, Inter-band, dB 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 200 200 125 125 125 125

Mechanical specifications

Effective Projective Area (EPA), frontal 0.4 m² | 4.306 ft²
Effective Projective Area (EPA), lateral 0.34 m² | 3.66 ft²
Mechanical Tilt Range 0°–12°
Wind Loading @ Velocity, frontal 425.0 N @ 150 km/h (95.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 361.0 N @ 150 km/h (81.2 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 900.0 N @ 150 km/h (202.3 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 451.0 N @ 150 km/h (101.4 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 456 mm | 17.953 in
Depth, packed 357 mm | 14.055 in
Length, packed 2585 mm | 101.772 in
Weight, gross 49.5 kg | 109.129 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
