HWXXX-6516DS-VTM | HWXXX-6516DS-A3M
6-port sector antenna, 6x 1710–2690 MHz, 65° HPBW, RET compatible
Features and benefits
- Provides a future-ready antenna solution with flexibility to reassign antenna, for example GSM 1800 service to 2.6GHz LTE at a later date
- Excellent solution for site sharing and maximizing capacity
- Employs state-of-the-art ultra wideband technology providing excellent RF performance in all bands
Specifications
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 6 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 6 |
Remote electrical tilt (ret) information
| Model with Factory Installed AISG 2.0 Actuator | HWXXX-6516DS-A3M |
Dimensions
| Width | 504 mm | 19.843 in |
| Depth | 118 mm | 4.646 in |
| Length | 1390 mm | 54.724 in |
| Net Weight, without mounting kit | 19.5 kg | 42.99 lb |

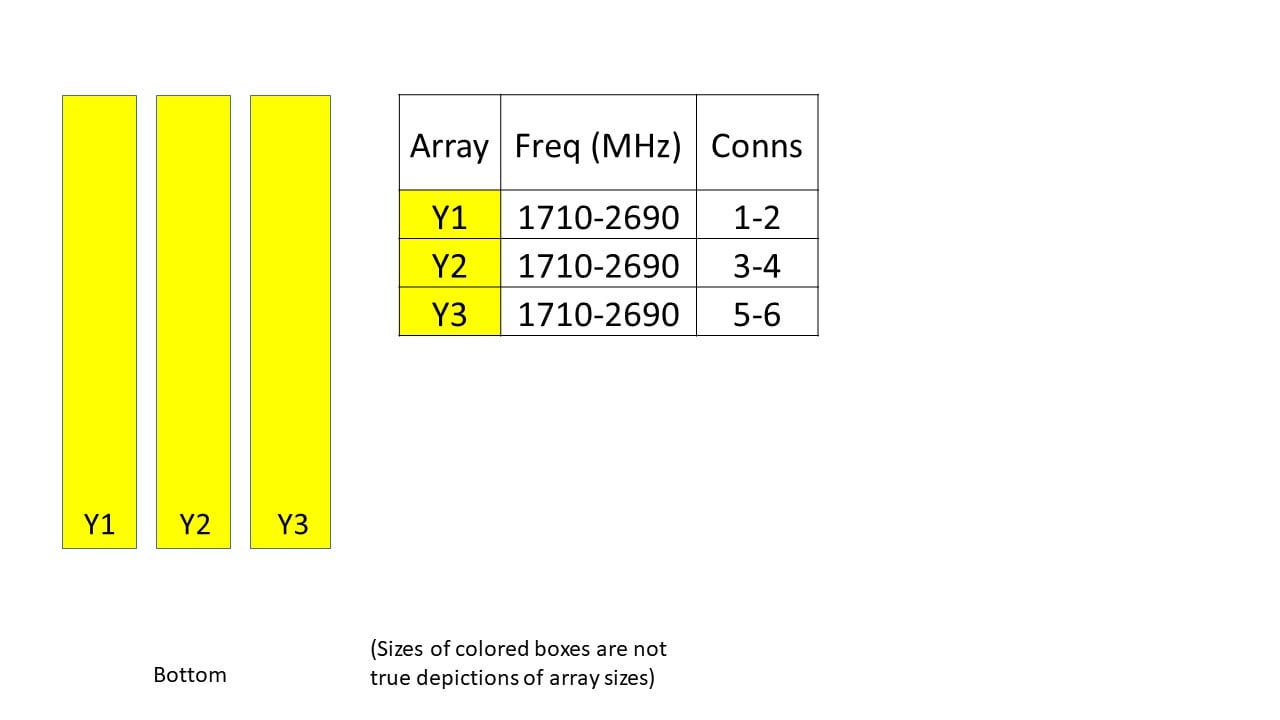

Array layout
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1710 – 2690 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 1710–1880 | 1850–1990 | 1920–2180 | 2300–2500 | 2500–2690 |
| Gain, dBi | 17.6 | 17.7 | 17.9 | 18.4 | 18.3 |
| Beamwidth, Horizontal, degrees | 62 | 63 | 64 | 62 | 61 |
| Beamwidth, Vertical, degrees | 7.3 | 6.8 | 6.4 | 5.3 | 5 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 15 | 17 | 17 | 13 | 14 |
| Front-to-Back Ratio at 180°, dB | 27 | 27 | 27 | 27 | 27 |
| CPR at Boresight, dB | 23 | 21 | 19 | 19 | 19 |
| Isolation, Cross Polarization, dB | 30 | 30 | 30 | 30 | 30 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 350 | 350 | 350 | 300 | 300 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 715.0 N @ 150 km/h (160.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 77.0 N @ 150 km/h (17.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 908.0 N @ 150 km/h (204.1 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 613 mm | 24.134 in |
| Depth, packed | 226 mm | 8.898 in |
| Length, packed | 1525 mm | 60.039 in |
| Weight, gross | 31.1 kg | 68.564 lb |
Regulatory compliance/certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 6 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 6 |
Remote electrical tilt (ret) information
| Model with Factory Installed AISG 2.0 Actuator | HWXXX-6516DS-A3M |
Dimensions
| Width | 504 mm | 19.843 in |
| Depth | 118 mm | 4.646 in |
| Length | 1390 mm | 54.724 in |
| Net Weight, without mounting kit | 19.5 kg | 42.99 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1710 – 2690 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 1710–1880 | 1850–1990 | 1920–2180 | 2300–2500 | 2500–2690 |
| Gain, dBi | 17.6 | 17.7 | 17.9 | 18.4 | 18.3 |
| Beamwidth, Horizontal, degrees | 62 | 63 | 64 | 62 | 61 |
| Beamwidth, Vertical, degrees | 7.3 | 6.8 | 6.4 | 5.3 | 5 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 15 | 17 | 17 | 13 | 14 |
| Front-to-Back Ratio at 180°, dB | 27 | 27 | 27 | 27 | 27 |
| CPR at Boresight, dB | 23 | 21 | 19 | 19 | 19 |
| Isolation, Cross Polarization, dB | 30 | 30 | 30 | 30 | 30 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 350 | 350 | 350 | 300 | 300 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 715.0 N @ 150 km/h (160.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 77.0 N @ 150 km/h (17.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 908.0 N @ 150 km/h (204.1 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 613 mm | 24.134 in |
| Depth, packed | 226 mm | 8.898 in |
| Length, packed | 1525 mm | 60.039 in |
| Weight, gross | 31.1 kg | 68.564 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
