HBXX-3319DS-VTM | HBXX-3319DS-A2M
4-port sector antenna, 4x 1710–2180 MHz, 33° HPBW, RET compatible
Specifications
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| Model with Factory Installed AISG 2.0 Actuator | HBXX-3319DS-A2M |
Dimensions
| Width | 564 mm | 22.205 in |
| Depth | 125 mm | 4.921 in |
| Length | 1448 mm | 57.008 in |
| Net Weight, without mounting kit | 17.3 kg | 38.14 lb |

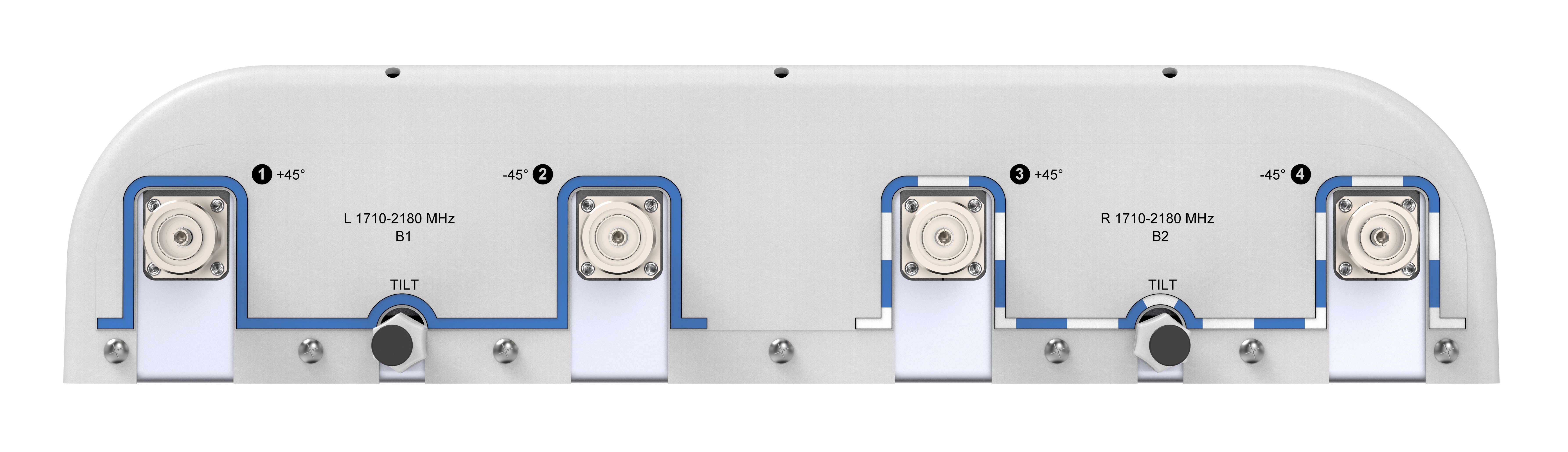

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1710 – 2180 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 1710–1880 | 1850–1990 | 1920–2180 |
| Gain, dBi | 20.3 | 20.3 | 20.7 |
| Beamwidth, Horizontal, degrees | 36 | 35 | 34 |
| Beamwidth, Vertical, degrees | 6.5 | 6.2 | 5.9 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 15 | 16 | 16 |
| Front-to-Back Ratio at 180°, dB | 41 | 42 | 42 |
| Isolation, Cross Polarization, dB | 30 | 30 | 30 |
| Isolation, Inter-band, dB | 28 | 30 | 30 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 250 |
Electrical specifications, basta
| Frequency Band, MHz | 1710–1880 | 1850–1990 | 1920–2180 |
| Gain by all Beam Tilts, average, dBi | 20.0 | 20.0 | 20.3 |
| Gain by all Beam Tilts Tolerance, dB | ±0.5 | ±0.5 | ±0.8 |
| Gain by Beam Tilt, average, dBi | 0 ° | 20.1 5 ° | 20.1 10 ° | 19.7 | 0 ° | 20.0 5 ° | 20.1 10 ° | 19.7 | 0 ° | 20.4 5 ° | 20.5 10 ° | 19.9 |
| Beamwidth, Horizontal Tolerance, degrees | ±2.8 | ±1.6 | ±2.4 |
| Beamwidth, Vertical Tolerance, degrees | ±0.3 | ±0.3 | ±0.4 |
| USLS, beampeak to 20° above beampeak, dB | 14 | 15 | 15 |
| Front-to-Back Total Power at 180° ± 30°, dB | 36 | 38 | 37 |
| CPR at Boresight, dB | 25 | 24 | 24 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 1,019.0 N @ 150 km/h (229.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 176.0 N @ 150 km/h (39.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,089.0 N @ 150 km/h (244.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 201 km/h (125 mph) |
Packaging and weights
| Width, packed | 758 mm | 29.843 in |
| Depth, packed | 281 mm | 11.063 in |
| Length, packed | 1934 mm | 76.142 in |
| Weight, gross | 30.8 kg | 67.902 lb |
Regulatory compliance/certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| Model with Factory Installed AISG 2.0 Actuator | HBXX-3319DS-A2M |
Dimensions
| Width | 564 mm | 22.205 in |
| Depth | 125 mm | 4.921 in |
| Length | 1448 mm | 57.008 in |
| Net Weight, without mounting kit | 17.3 kg | 38.14 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1710 – 2180 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 1710–1880 | 1850–1990 | 1920–2180 |
| Gain, dBi | 20.3 | 20.3 | 20.7 |
| Beamwidth, Horizontal, degrees | 36 | 35 | 34 |
| Beamwidth, Vertical, degrees | 6.5 | 6.2 | 5.9 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 15 | 16 | 16 |
| Front-to-Back Ratio at 180°, dB | 41 | 42 | 42 |
| Isolation, Cross Polarization, dB | 30 | 30 | 30 |
| Isolation, Inter-band, dB | 28 | 30 | 30 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 250 |
Electrical specifications, basta
| Frequency Band, MHz | 1710–1880 | 1850–1990 | 1920–2180 |
| Gain by all Beam Tilts, average, dBi | 20.0 | 20.0 | 20.3 |
| Gain by all Beam Tilts Tolerance, dB | ±0.5 | ±0.5 | ±0.8 |
| Gain by Beam Tilt, average, dBi | 0 ° | 20.1; 5 ° | 20.1; 10 ° | 19.7 | 0 ° | 20.0; 5 ° | 20.1; 10 ° | 19.7 | 0 ° | 20.4; 5 ° | 20.5; 10 ° | 19.9 |
| Beamwidth, Horizontal Tolerance, degrees | ±2.8 | ±1.6 | ±2.4 |
| Beamwidth, Vertical Tolerance, degrees | ±0.3 | ±0.3 | ±0.4 |
| USLS, beampeak to 20° above beampeak, dB | 14 | 15 | 15 |
| Front-to-Back Total Power at 180° ± 30°, dB | 36 | 38 | 37 |
| CPR at Boresight, dB | 25 | 24 | 24 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 1,019.0 N @ 150 km/h (229.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 176.0 N @ 150 km/h (39.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,089.0 N @ 150 km/h (244.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 201 km/h (125 mph) |
Packaging and weights
| Width, packed | 758 mm | 29.843 in |
| Depth, packed | 281 mm | 11.063 in |
| Length, packed | 1934 mm | 76.142 in |
| Weight, gross | 30.8 kg | 67.902 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
