HBX-6516DS-VTM | HBX-6516DS-A1M
2-port sector antenna, 2x 1710–2180 MHz, 65° HPBW, RET compatible
Features and benefits
- Superior azimuth tracking and pattern symmetry to minimize any sector overlap
- Rugged, reliable design with excellent passive intermodulation suppression
Specifications
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | PVC, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 2 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 2 |
Remote electrical tilt (ret) information
| Model with Factory Installed AISG 2.0 Actuator | HBX-6516DS-A1M |
Dimensions
| Width | 166 mm | 6.535 in |
| Depth | 83 mm | 3.268 in |
| Length | 1306 mm | 51.417 in |
| Net Weight, without mounting kit | 4.7 kg | 10.362 lb |

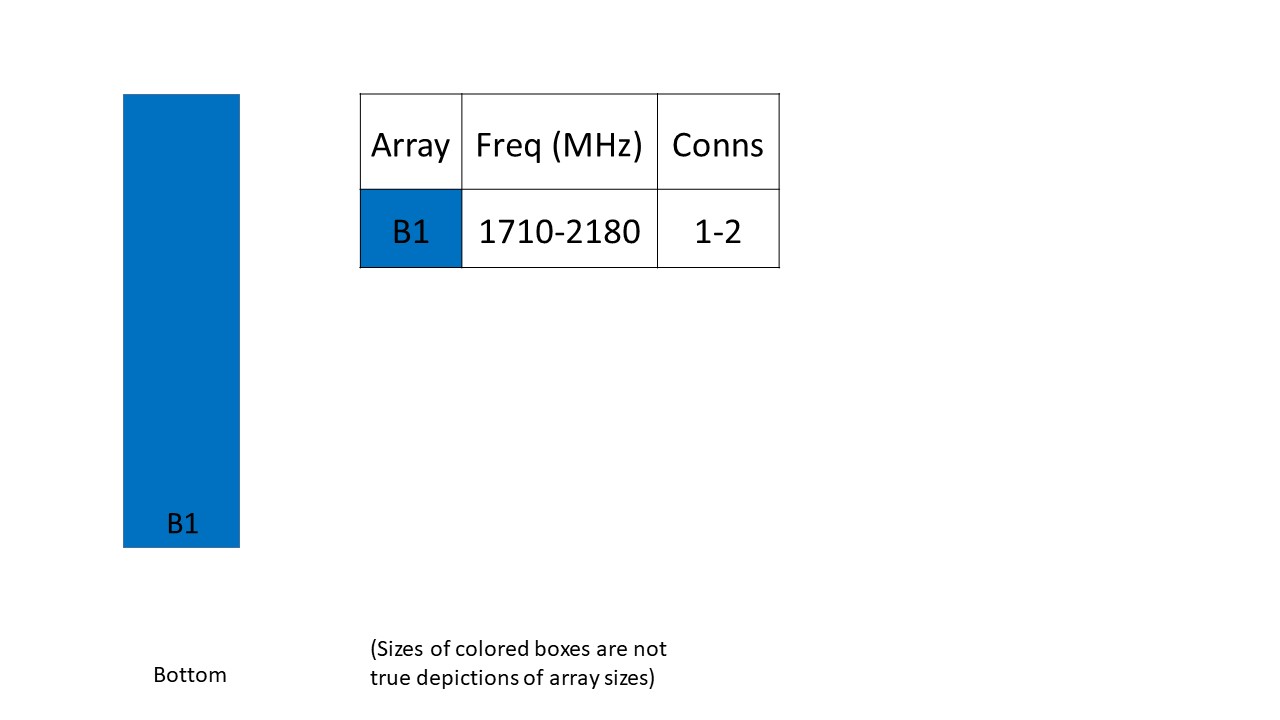

Array layout
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1710 – 2180 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 1710–1880 | 1850–1990 | 1920–2180 |
| Gain, dBi | 17.4 | 17.6 | 17.8 |
| Beamwidth, Horizontal, degrees | 66 | 64 | 66 |
| Beamwidth, Vertical, degrees | 7.4 | 6.9 | 6.4 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 19 | 19 | 19 |
| Front-to-Back Ratio at 180°, dB | 35 | 35 | 35 |
| CPR at Boresight, dB | 17 | 19 | 20 |
| Isolation, Cross Polarization, dB | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.4 | 15.6 | 1.4 | 15.6 | 1.4 | 15.6 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 350 | 350 | 350 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 257.0 N @ 150 km/h (57.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 67.0 N @ 150 km/h (15.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 310.0 N @ 150 km/h (69.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 277 mm | 10.906 in |
| Depth, packed | 188 mm | 7.402 in |
| Length, packed | 1442 mm | 56.772 in |
| Weight, gross | 11.5 kg | 25.353 lb |
Regulatory compliance/certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | PVC, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 2 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 2 |
Remote electrical tilt (ret) information
| Model with Factory Installed AISG 2.0 Actuator | HBX-6516DS-A1M |
Dimensions
| Width | 166 mm | 6.535 in |
| Depth | 83 mm | 3.268 in |
| Length | 1306 mm | 51.417 in |
| Net Weight, without mounting kit | 4.7 kg | 10.362 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1710 – 2180 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 1710–1880 | 1850–1990 | 1920–2180 |
| Gain, dBi | 17.4 | 17.6 | 17.8 |
| Beamwidth, Horizontal, degrees | 66 | 64 | 66 |
| Beamwidth, Vertical, degrees | 7.4 | 6.9 | 6.4 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 19 | 19 | 19 |
| Front-to-Back Ratio at 180°, dB | 35 | 35 | 35 |
| CPR at Boresight, dB | 17 | 19 | 20 |
| Isolation, Cross Polarization, dB | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.4 | 15.6 | 1.4 | 15.6 | 1.4 | 15.6 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 350 | 350 | 350 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 257.0 N @ 150 km/h (57.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 67.0 N @ 150 km/h (15.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 310.0 N @ 150 km/h (69.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 277 mm | 10.906 in |
| Depth, packed | 188 mm | 7.402 in |
| Length, packed | 1442 mm | 56.772 in |
| Weight, gross | 11.5 kg | 25.353 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
