  5. HBX-3319DS-VTM | HBX-3319DS-A1M
Warning Icon
This product was discontinued on: November 30, 2023

For other alternatives, please contact us for more information.

0 Replacement products available

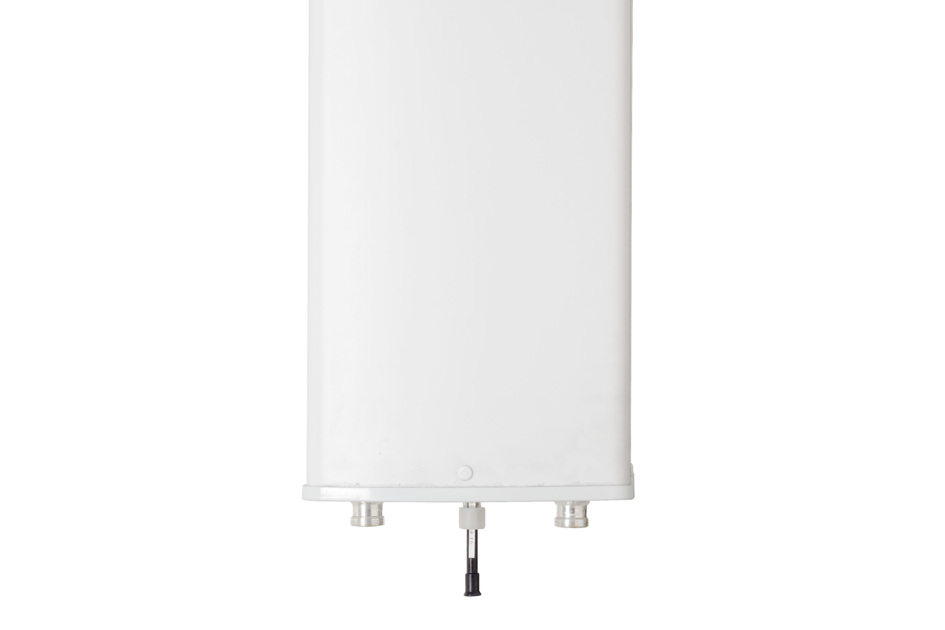

HBX-3319DS-VTM | HBX-3319DS-A1M

2-port sector antenna, 2x 1710–2180 MHz, 33° HPBW, RET compatible

Finish making your selections or clear them to view relevant specifications.
Features and benefits
  • Exceptional horizontal roll-off and front-to-back ratio for superior capacity efficiency
  • Extended elevation tilt for maximum flexibility in urban core areas
  • Rugged, reliable design with excellent passive intermodulation suppression

General specifications

Antenna Type Sector
Band Single band
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material PVC, UV resistant
Radiator Material Low loss circuit board
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 2
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 0
RF Connector Quantity, total 2

Remote electrical tilt (ret) information

Model with Factory Installed AISG 2.0 Actuator HBX-3319DS-A1M

Dimensions

Width 269 mm | 10.591 in
Depth 132 mm | 5.197 in
Length 1463 mm | 57.598 in
Net Weight, without mounting kit 12.7 kg | 27.999 lb

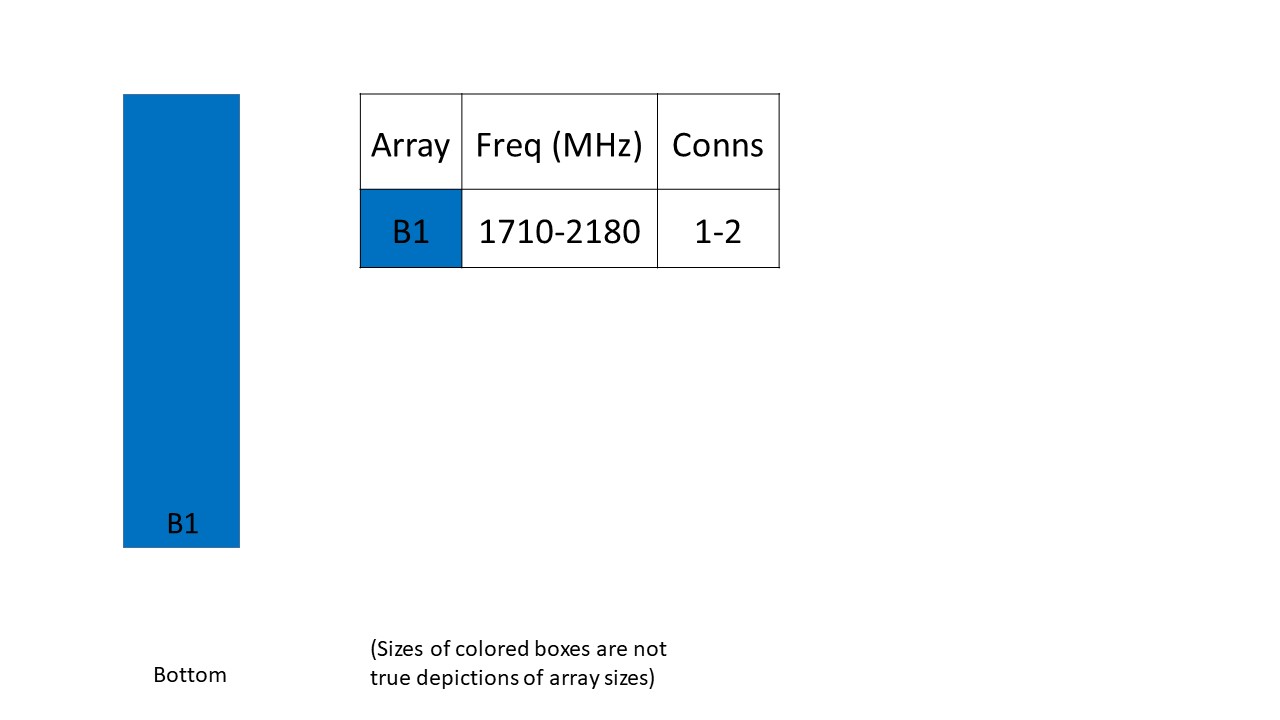

Array layout

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 1710 – 2180 MHz
Polarization ±45°

Electrical specifications

Frequency Band, MHz 1710–1880 1850–1990 1920–2180
Gain, dBi 20.5 20.7 21.0
Beamwidth, Horizontal, degrees 35 34 32
Beamwidth, Vertical, degrees 7 6.6 6.2
Beam Tilt, degrees 0–9 0–9 0–9
USLS (First Lobe), dB 18 18 18
Front-to-Back Ratio at 180°, dB 40 40 40
CPR at Boresight, dB 19 19 17
Isolation, Cross Polarization, dB 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153
Input Power per Port, maximum, watts 300 300 300

Mechanical specifications

Wind Loading @ Velocity, frontal 406.0 N @ 150 km/h (91.3 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 103.0 N @ 150 km/h (23.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 506.0 N @ 150 km/h (113.8 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 376 mm | 14.803 in
Depth, packed 267 mm | 10.512 in
Length, packed 1776 mm | 69.921 in
Weight, gross 22.2 kg | 48.943 lb

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

General specifications

Antenna Type Sector
Band Single band
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material PVC, UV resistant
Radiator Material Low loss circuit board
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 2
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 0
RF Connector Quantity, total 2

Remote electrical tilt (ret) information

Model with Factory Installed AISG 2.0 Actuator HBX-3319DS-A1M

Dimensions

Width 269 mm | 10.591 in
Depth 132 mm | 5.197 in
Length 1463 mm | 57.598 in
Net Weight, without mounting kit 12.7 kg | 27.999 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 1710 – 2180 MHz
Polarization ±45°

Electrical specifications

Frequency Band, MHz 1710–1880 1850–1990 1920–2180
Gain, dBi 20.5 20.7 21.0
Beamwidth, Horizontal, degrees 35 34 32
Beamwidth, Vertical, degrees 7 6.6 6.2
Beam Tilt, degrees 0–9 0–9 0–9
USLS (First Lobe), dB 18 18 18
Front-to-Back Ratio at 180°, dB 40 40 40
CPR at Boresight, dB 19 19 17
Isolation, Cross Polarization, dB 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153
Input Power per Port, maximum, watts 300 300 300

Mechanical specifications

Wind Loading @ Velocity, frontal 406.0 N @ 150 km/h (91.3 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 103.0 N @ 150 km/h (23.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 506.0 N @ 150 km/h (113.8 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 376 mm | 14.803 in
Depth, packed 267 mm | 10.512 in
Length, packed 1776 mm | 69.921 in
Weight, gross 22.2 kg | 48.943 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Assembly drawing

HBX-3319DS-VTM Line Drawing
