FFHH-65A-R3
8-port sector antenna, 4x 617-806 and 4x 1695–2360 MHz, 65° HPBW, 3x RET, 600 MHz-Ready Antenna Technology
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (2) | Low band (1) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 10 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 640 mm | 25.197 in |
| Depth | 235 mm | 9.252 in |
| Length | 1224 mm | 48.189 in |
| Net Weight, without mounting kit | 33 kg | 72.752 lb |

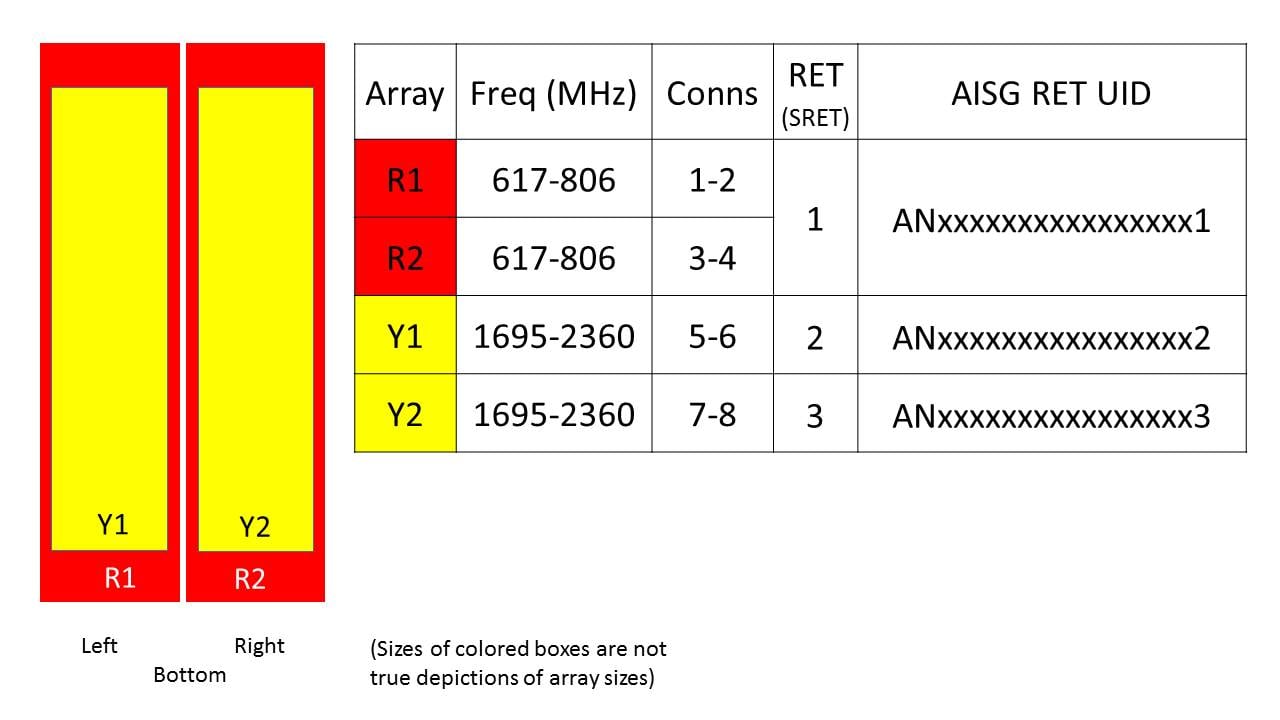

Array layout
| Click on image to enlarge. |

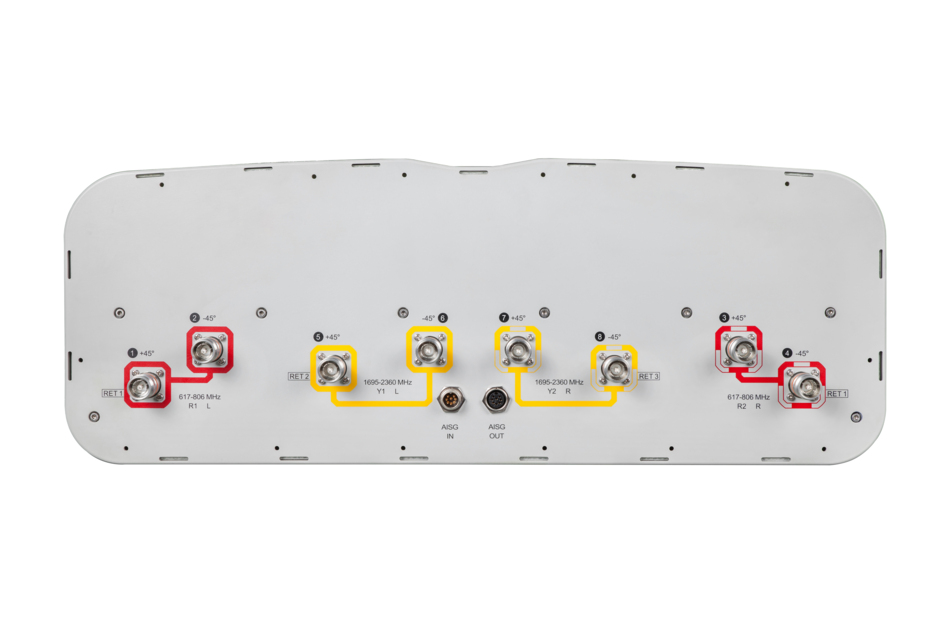

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 806 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 617–698 | 698–806 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2360 |
| Gain, dBi | 12.9 | 13.4 | 16.6 | 17.1 | 17.9 | 18.4 |
| Beamwidth, Horizontal, degrees | 65 | 61 | 67 | 63 | 60 | 52 |
| Beamwidth, Vertical, degrees | 20.7 | 19.1 | 8 | 7.5 | 7 | 6.2 |
| Beam Tilt, degrees | 5–22 | 5–22 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 15 | 14 | 16 | 17 | 18 | 18 |
| Front-to-Back Ratio at 180°, dB | 29 | 30 | 38 | 36 | 37 | 39 |
| CPR at Boresight, dB | 18 | 18 | 17 | 18 | 18 | 19 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 505.0 N @ 150 km/h (113.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 156.0 N @ 150 km/h (35.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 688.0 N @ 150 km/h (154.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 520.0 N @ 150 km/h (116.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 752 mm | 29.606 in |
| Depth, packed | 387 mm | 15.236 in |
| Length, packed | 1379 mm | 54.291 in |
| Weight, gross | 49.5 kg | 109.129 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (2) | Low band (1) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 10 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 640 mm | 25.197 in |
| Depth | 235 mm | 9.252 in |
| Length | 1224 mm | 48.189 in |
| Net Weight, without mounting kit | 33 kg | 72.752 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 806 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 617–698 | 698–806 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2360 |
| Gain, dBi | 12.9 | 13.4 | 16.6 | 17.1 | 17.9 | 18.4 |
| Beamwidth, Horizontal, degrees | 65 | 61 | 67 | 63 | 60 | 52 |
| Beamwidth, Vertical, degrees | 20.7 | 19.1 | 8 | 7.5 | 7 | 6.2 |
| Beam Tilt, degrees | 5–22 | 5–22 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 15 | 14 | 16 | 17 | 18 | 18 |
| Front-to-Back Ratio at 180°, dB | 29 | 30 | 38 | 36 | 37 | 39 |
| CPR at Boresight, dB | 18 | 18 | 17 | 18 | 18 | 19 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 505.0 N @ 150 km/h (113.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 156.0 N @ 150 km/h (35.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 688.0 N @ 150 km/h (154.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 520.0 N @ 150 km/h (116.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 752 mm | 29.606 in |
| Depth, packed | 387 mm | 15.236 in |
| Length, packed | 1379 mm | 54.291 in |
| Weight, gross | 49.5 kg | 109.129 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
