This product was discontinued on: March 30, 2024

For other alternatives, please contact us for more information.

0 Replacement products available

EGZHHTT-65A-R6

14-port sector antenna, 2x 694-862 (R1), 2x 880-960 (R2), 2x 1427-2690 (Y2), 4x 1695-2180 (B1-B2), 4x 2490-2690 (Y1 & Y3) MHz, 65° HPBW, 6x RET. Y1 & Y3 share a common RET

Finish making your selections or clear them to view relevant specifications.
Features and benefits
  • All Internal RET actuators are connected in “Cascaded SRET” configuration
  • Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios (Supports_r)
  • Retractable tilt indicator rods

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Isolation, Intersystem, dB for 1427-1518 MHz, spec 1427-1496 MHz is better than 28dB and 1496-1518 MHz is better than 27dB | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 10
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 4
RF Connector Quantity, total 14

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (4) | Low band (2)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 395 mm | 15.551 in
Depth 228 mm | 8.976 in
Length 1500 mm | 59.055 in
Net Weight, without mounting kit 30 kg | 66.139 lb

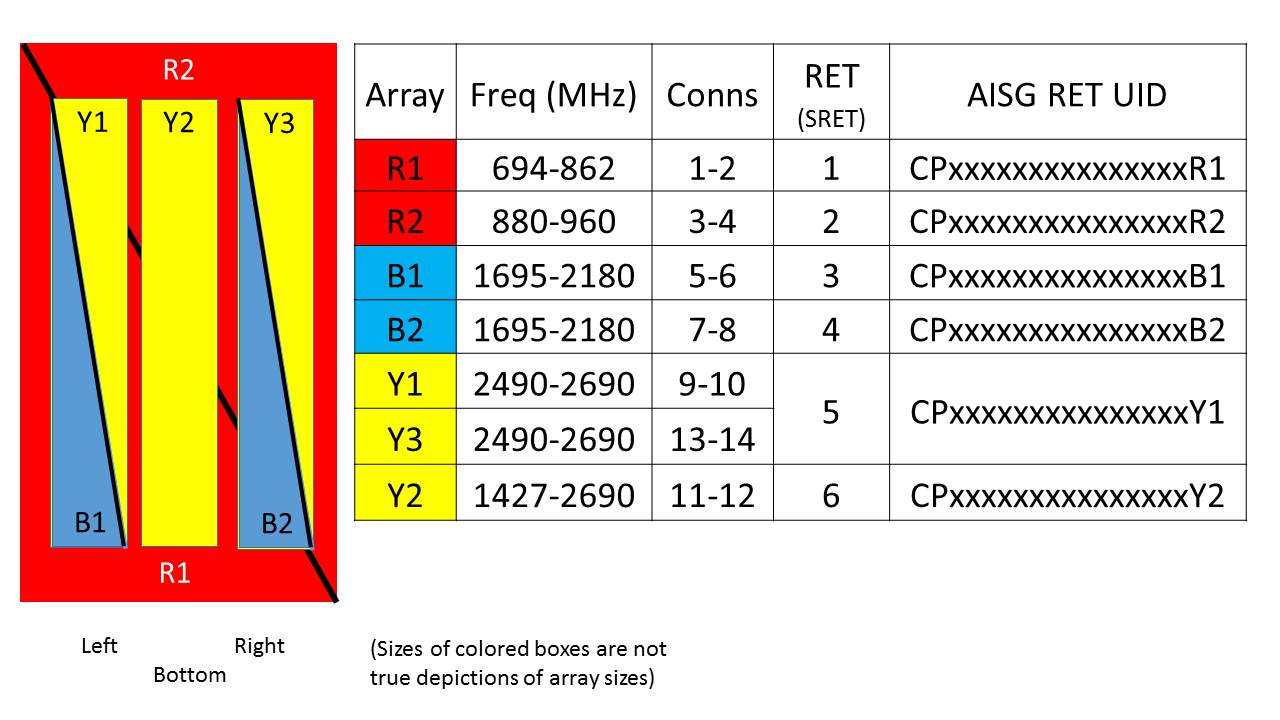

Array layout

Click on image to enlarge.

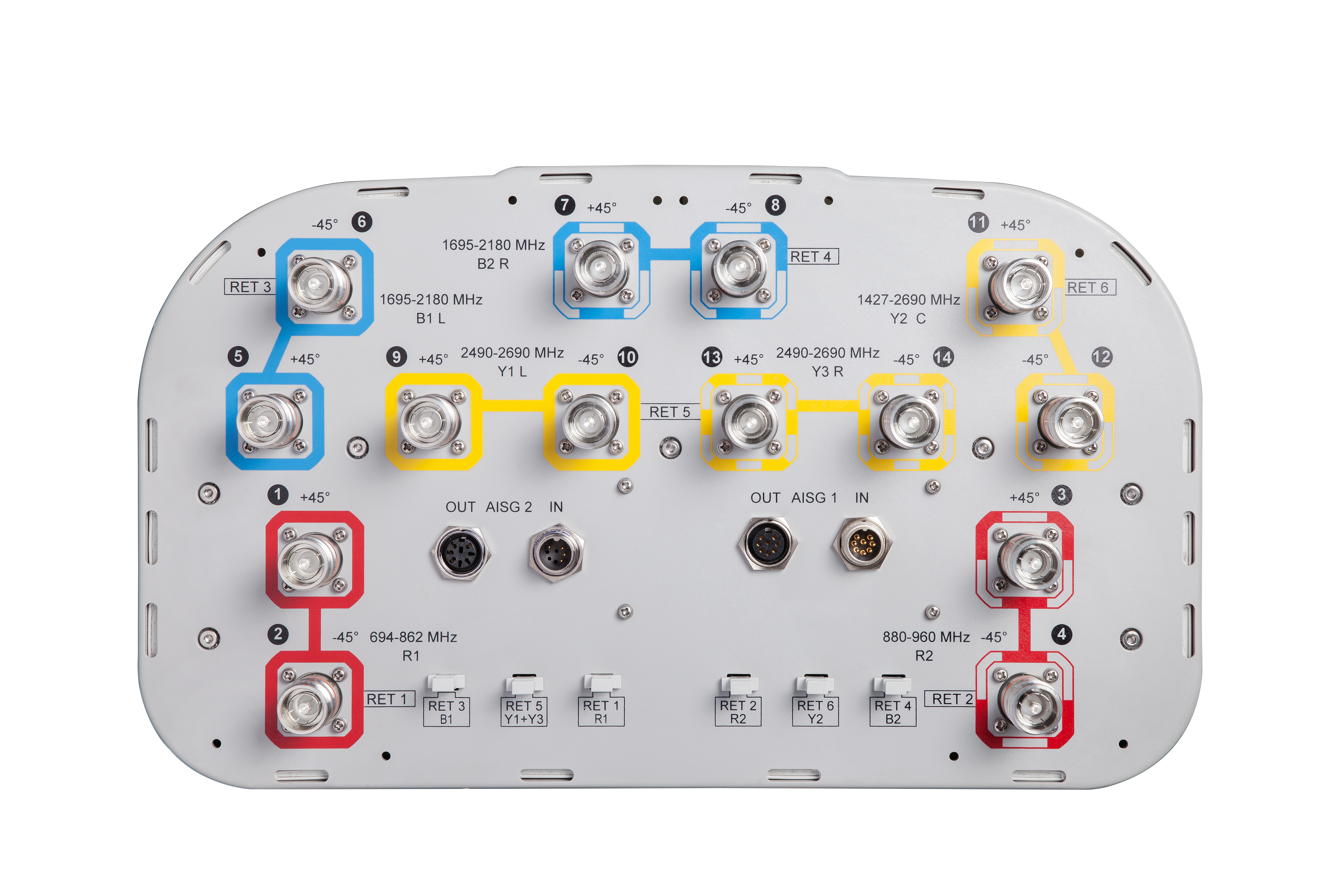

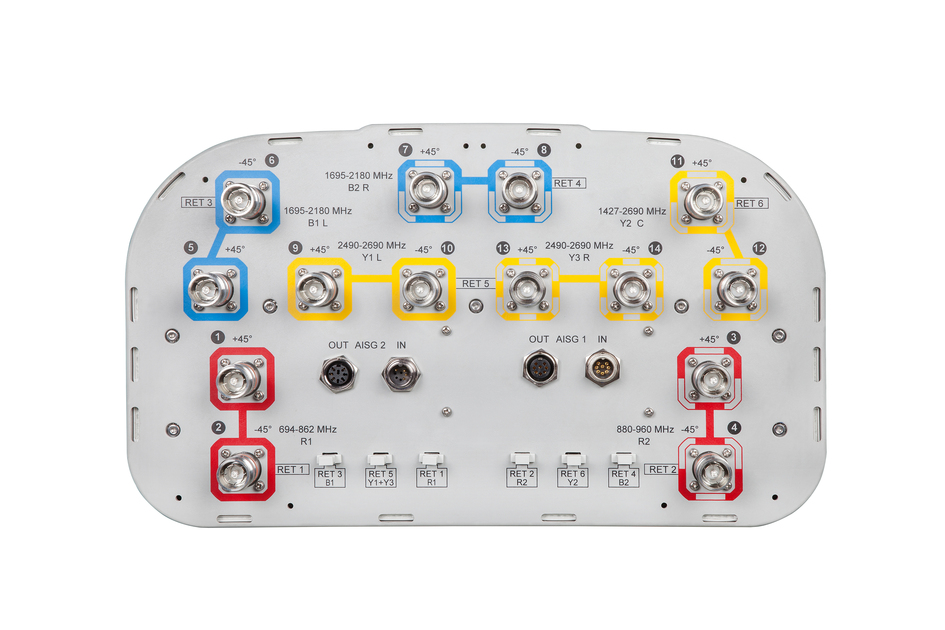

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 862 MHz | 880 – 960 MHz | 1427 – 2690 MHz | 1695 – 2180 MHz | 2490 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical specifications

R1 R2 B1&B2 B1&B2 Y1&Y3 Y2 Y2 Y2
Frequency Band, MHz 694–862 880–960 1695–1880 1920–2180 2490–2690 1427–1518 1695–2180 2490–2690
Gain, dBi 13.7 13.8 16.6 17.4 17.2 15.2 17.3 17.2
Beamwidth, Horizontal, degrees 66 64 69 64 61 71 63 59
Beamwidth, Vertical, degrees 16.2 13.8 6.9 6.2 5.1 9.3 7.4 5.5
Beam Tilt, degrees 2–17 2–17 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 21 19 17 19 17 16 15 15
Front-to-Back Ratio at 180°, dB 32 32 30 32 29 29 36 29
CPR at Boresight, dB 17 15 17 18 18 12 20 25
Isolation, Cross Polarization, dB 28 28 28 28 28 28 28 28
Isolation, Inter-band, dB 28 28 28 28 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 250 250 150 250 200 200

Mechanical specifications

Mechanical Tilt Range 0°–18°
Wind Loading @ Velocity, frontal 289.0 N @ 150 km/h (65.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 209.0 N @ 150 km/h (47.0 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 495.0 N @ 150 km/h (111.3 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 297.0 N @ 150 km/h (66.8 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 505 mm | 19.882 in
Depth, packed 386 mm | 15.197 in
Length, packed 1643 mm | 64.685 in
Weight, gross 45 kg | 99.208 lb

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Isolation, Intersystem, dB for 1427-1518 MHz, spec 1427-1496 MHz is better than 28dB and 1496-1518 MHz is better than 27dB | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 10
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 4
RF Connector Quantity, total 14

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (4) | Low band (2)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 395 mm | 15.551 in
Depth 228 mm | 8.976 in
Length 1500 mm | 59.055 in
Net Weight, without mounting kit 30 kg | 66.139 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 862 MHz | 880 – 960 MHz | 1427 – 2690 MHz | 1695 – 2180 MHz | 2490 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical specifications

R1 R2 B1&B2 B1&B2 Y1&Y3 Y2 Y2 Y2
Frequency Band, MHz 694–862 880–960 1695–1880 1920–2180 2490–2690 1427–1518 1695–2180 2490–2690
Gain, dBi 13.7 13.8 16.6 17.4 17.2 15.2 17.3 17.2
Beamwidth, Horizontal, degrees 66 64 69 64 61 71 63 59
Beamwidth, Vertical, degrees 16.2 13.8 6.9 6.2 5.1 9.3 7.4 5.5
Beam Tilt, degrees 2–17 2–17 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 21 19 17 19 17 16 15 15
Front-to-Back Ratio at 180°, dB 32 32 30 32 29 29 36 29
CPR at Boresight, dB 17 15 17 18 18 12 20 25
Isolation, Cross Polarization, dB 28 28 28 28 28 28 28 28
Isolation, Inter-band, dB 28 28 28 28 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 250 250 150 250 200 200

Mechanical specifications

Mechanical Tilt Range 0°–18°
Wind Loading @ Velocity, frontal 289.0 N @ 150 km/h (65.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 209.0 N @ 150 km/h (47.0 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 495.0 N @ 150 km/h (111.3 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 297.0 N @ 150 km/h (66.8 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 505 mm | 19.882 in
Depth, packed 386 mm | 15.197 in
Length, packed 1643 mm | 64.685 in
Weight, gross 45 kg | 99.208 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
