EGVV65B-FL-C3-4XR
8-port sector antenna, 2x 694–862, 2x 880–960 and 4x 1695–2690 MHz, 65° HPBW, 4x RET. Low band arrays are diplexed at the element level.
Features and benefits
- All Internal RET actuators are connected in “Cascaded SRET” configuration
- Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (2) | Low band (2) |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 13 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 350 mm | 13.78 in |
| Depth | 208 mm | 8.189 in |
| Length | 1850 mm | 72.835 in |
| Net Weight, without mounting kit | 30.5 kg | 67.241 lb |

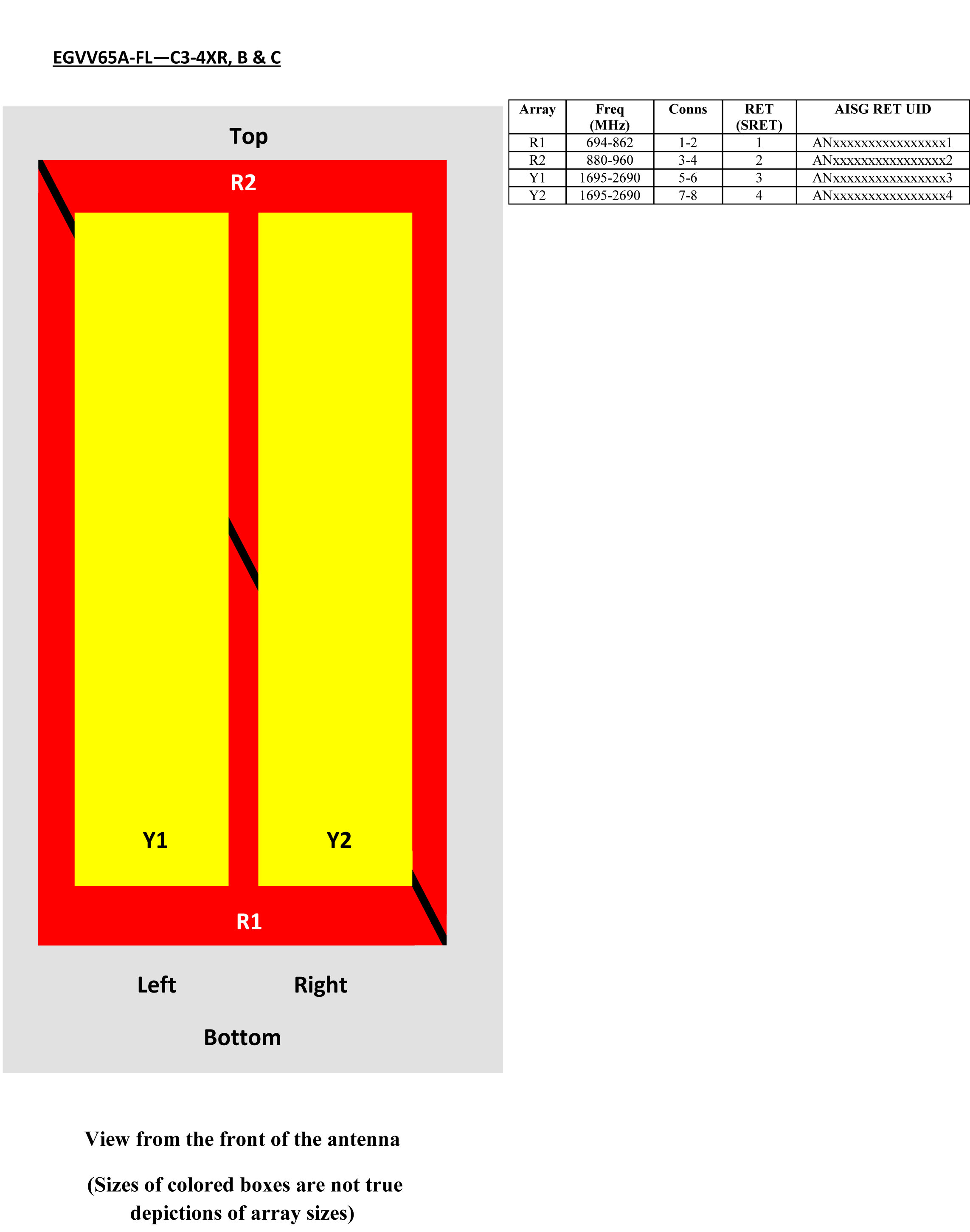

Array layout
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 862 MHz | 880 – 960 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 800 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 694–862 | 880–960 | 1695–1920 | 1920–2180 | 2300–2500 | 2500–2690 |
| Gain, dBi | 15.2 | 15.5 | 18.2 | 18.9 | 18.8 | 18.8 |
| Beamwidth, Horizontal, degrees | 67 | 62 | 60 | 61 | 60 | 59 |
| Beamwidth, Vertical, degrees | 11.8 | 9.8 | 5.6 | 5 | 4.4 | 4.3 |
| Beam Tilt, degrees | 2–14 | 2–14 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 16 | 19 | 19 | 20 | 18 | 19 |
| Front-to-Back Ratio at 180°, dB | 29 | 29 | 31 | 36 | 36 | 37 |
| CPR at Boresight, dB | 20 | 19 | 19 | 20 | 21 | 18 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 30 | 30 | 30 | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 200 | 200 | 250 | 250 | 250 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 306.0 N @ 150 km/h (68.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 258.0 N @ 150 km/h (58.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 647.0 N @ 150 km/h (145.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 324.0 N @ 150 km/h (72.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 460 mm | 18.11 in |
| Depth, packed | 350 mm | 13.78 in |
| Length, packed | 2000 mm | 78.74 in |
| Weight, gross | 44 kg | 97.003 lb |
Regulatory compliance/certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (2) | Low band (2) |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 13 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 350 mm | 13.78 in |
| Depth | 208 mm | 8.189 in |
| Length | 1850 mm | 72.835 in |
| Net Weight, without mounting kit | 30.5 kg | 67.241 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 862 MHz | 880 – 960 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 800 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 694–862 | 880–960 | 1695–1920 | 1920–2180 | 2300–2500 | 2500–2690 |
| Gain, dBi | 15.2 | 15.5 | 18.2 | 18.9 | 18.8 | 18.8 |
| Beamwidth, Horizontal, degrees | 67 | 62 | 60 | 61 | 60 | 59 |
| Beamwidth, Vertical, degrees | 11.8 | 9.8 | 5.6 | 5 | 4.4 | 4.3 |
| Beam Tilt, degrees | 2–14 | 2–14 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 16 | 19 | 19 | 20 | 18 | 19 |
| Front-to-Back Ratio at 180°, dB | 29 | 29 | 31 | 36 | 36 | 37 |
| CPR at Boresight, dB | 20 | 19 | 19 | 20 | 21 | 18 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 30 | 30 | 30 | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 200 | 200 | 250 | 250 | 250 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 306.0 N @ 150 km/h (68.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 258.0 N @ 150 km/h (58.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 647.0 N @ 150 km/h (145.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 324.0 N @ 150 km/h (72.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 460 mm | 18.11 in |
| Depth, packed | 350 mm | 13.78 in |
| Length, packed | 2000 mm | 78.74 in |
| Weight, gross | 44 kg | 97.003 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
