EGRZZHHTTV4-65D-R8
26-port sector antenna, 2x 694-862 (R1), 2x 880-960 (R2), 2x 694-960 (R3), 4x 1427-2690 (Y3/Y5), 4x 1695-1880 (B1-B2), 4x 2300-2690 (Y1&Y7) & 8x 1695-2690 (Y2/Y4/Y6/Y8) MHz, 65° HPBW, 8x RET.
Features and benefits
- All Internal RET actuators are connected in “Cascaded SRET” configuration
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 20 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 6 |
| RF Connector Quantity, total | 26 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v1 | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (5) | Low band (3) |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 9 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 2688 mm | 105.827 in |
| Net Weight, without mounting kit | 67.6 kg | 149.032 lb |

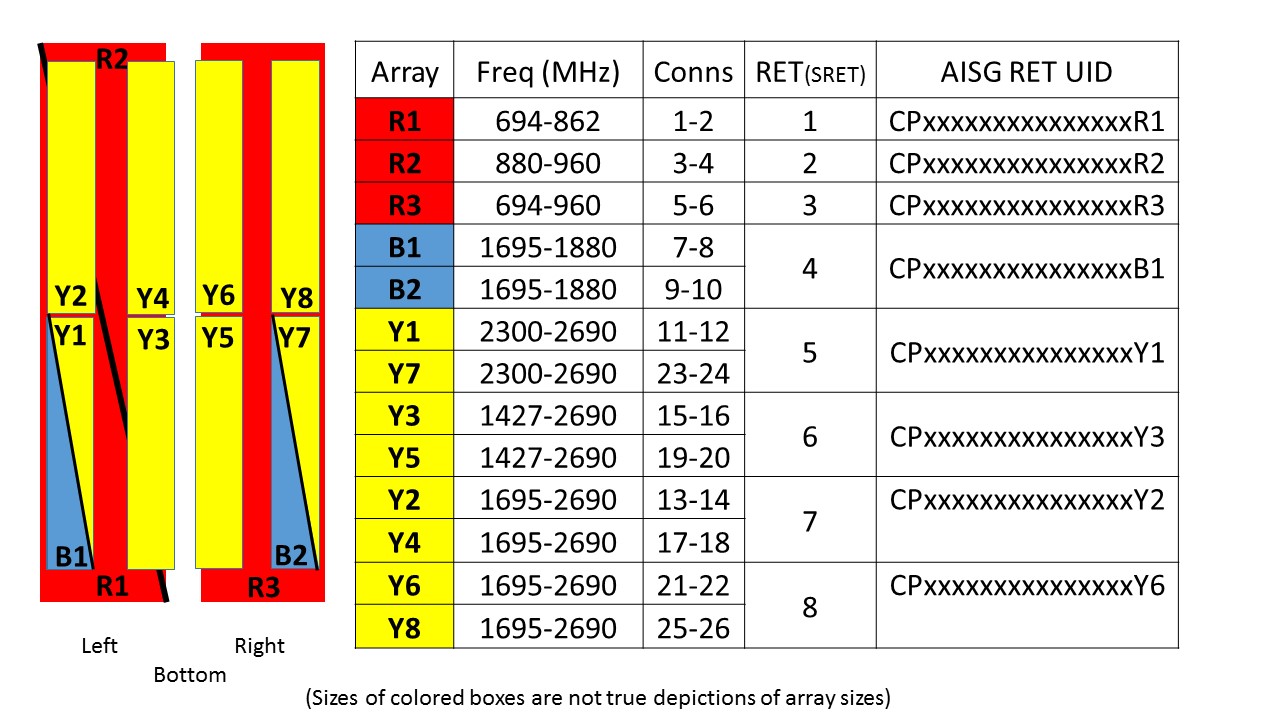

Array layout
| Click on image to enlarge. |

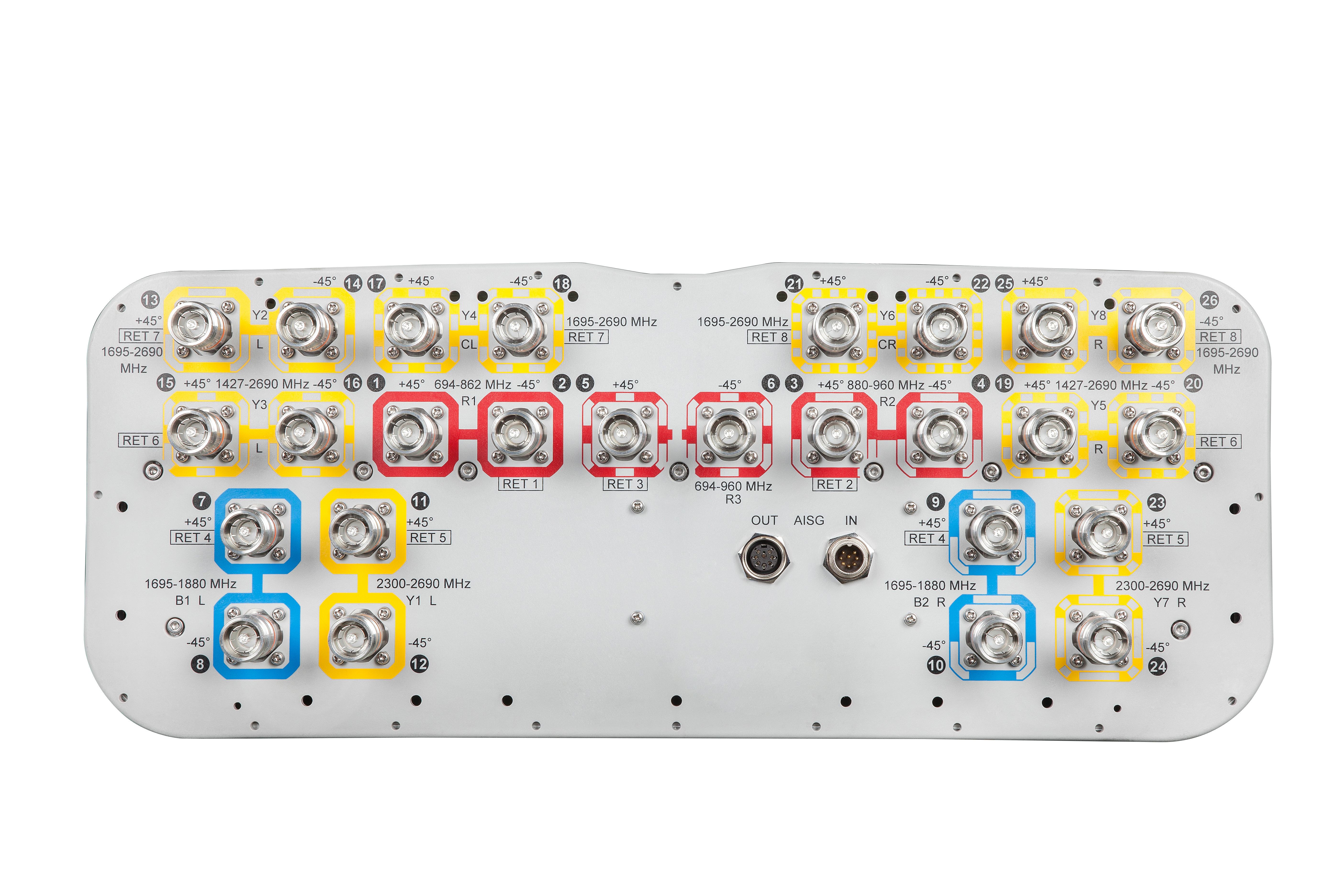

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 862 MHz | 694 – 960 MHz | 880 – 960 MHz | 1427 – 2690 MHz | 1695 – 1880 MHz | 1695 – 2690 MHz | 2300 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| R1 | R2 | R3 | B1-B2 | Y1&Y7 | Y1&Y7 | Y2-Y6/Y8 (inactive) | Y2-Y6/Y8 (inactive) | Y3/Y5 | |
| Frequency Band, MHz | 694–862 | 880–960 | 694–960 | 1695–1880 | 2300–2400 | 2490–2690 | 1695–2180 | 2490–2690 | 1427–1518 |
| Gain, dBi | 15.4 | 15.7 | 16.2 | 15.7 | 17.4 | 17.6 | 17.0 | 17.9 | 15.4 |
| Beamwidth, Horizontal, degrees | 68 | 64 | 67 | 69 | 58 | 55 | 64 | 57 | 65 |
| Beamwidth, Vertical, degrees | 8.5 | 7.3 | 8.1 | 7.3 | 5.8 | 5.3 | 7.1 | 5.3 | 9.5 |
| Beam Tilt, degrees | 2–14 | 2–14 | 2–14 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 18 | 21 | 18 | 17 | 17 | 19 | 17 | 21 | 20 |
| Front-to-Back Ratio at 180°, dB | 31 | 27 | 28 | 32 | 29 | 29 | 33 | 32 | 35 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 200 | 200 | 200 | 200 | 200 | 150 | 200 | 200 | 200 |
Electrical specifications, basta
| Frequency Band, MHz | 694–862 | 880–960 | 694–960 | 1695–1880 | 2300–2400 | 2490–2690 | 1695–2180 | 2490–2690 | 1427–1518 |
| Gain by all Beam Tilts, average, dBi | 15.1 | 15.3 | 15.8 | 15.3 | 17.0 | 17.4 | 16.1 | 17.4 | 15.1 |
| Gain by all Beam Tilts Tolerance, dB | ±0.4 | ±0.4 | ±0.6 | ±0.5 | ±0.4 | ±0.4 | ±1.1 | ±0.7 | ±0.4 |
| Gain by Beam Tilt, average, dBi | 2 ° | 15.0 8 ° | 15.214 ° | 14.9 | 2 ° | 15.2 8 ° | 15.514 ° | 15.0 | 2 ° | 15.7 8 ° | 15.914 ° | 15.5 | 2 ° | 15.2 7 ° | 15.412 ° | 15.1 | 2 ° | 16.7 7 ° | 17.012 ° | 17.1 | 2 ° | 17.0 7 ° | 17.612 ° | 17.3 | 2 ° | 16.0 7 ° | 16.212 ° | 16.0 | 2 ° | 17.1 7 ° | 17.612 ° | 17.2 | 2 ° | 14.9 7 ° | 15.112 ° | 15.3 |
| Beamwidth, Horizontal Tolerance, degrees | ±6.7 | ±4.0 | ±6.2 | ±6.1 | ±3.1 | ±6.4 | ±8.2 | ±6 | ±8.5 |
| Beamwidth, Vertical Tolerance, degrees | ±0.8 | ±0.4 | ±1.1 | ±0.7 | ±0.3 | ±0.3 | ±1 | ±0.3 | ±0.6 |
| USLS, beampeak to 20° above beampeak, dB | 14 | 14 | 16 | 14 | 14 | 14 | 16 | 16 | 17 |
| Front-to-Back Total Power at 180° ± 30°, dB | 21 | 22 | 22 | 25 | 23 | 24 | 26 | 26 | 25 |
| CPR at Boresight, dB | 19 | 17 | 18 | 16 | 18 | 20 | 18 | 19 | 17 |
| CPR at Sector, dB | 8 | 12 | 11 | 8 | 6 | 5 | 6 | 3 | 3 |
Mechanical specifications
| Mechanical Tilt Range | 2°–12° |
| Wind Loading @ Velocity, frontal | 1,070.0 N @ 150 km/h (240.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 375.0 N @ 150 km/h (84.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,385.0 N @ 150 km/h (311.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 880.0 N @ 150 km/h (197.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 565 mm | 22.244 in |
| Depth, packed | 309 mm | 12.165 in |
| Length, packed | 2935 mm | 115.551 in |
| Weight, gross | 88.6 kg | 195.329 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 20 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 6 |
| RF Connector Quantity, total | 26 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v1 | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (5) | Low band (3) |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 9 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 2688 mm | 105.827 in |
| Net Weight, without mounting kit | 67.6 kg | 149.032 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 862 MHz | 694 – 960 MHz | 880 – 960 MHz | 1427 – 2690 MHz | 1695 – 1880 MHz | 1695 – 2690 MHz | 2300 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| R1 | R2 | R3 | B1-B2 | Y1&Y7 | Y1&Y7 | Y2-Y6/Y8 (inactive) | Y2-Y6/Y8 (inactive) | Y3/Y5 | |
| Frequency Band, MHz | 694–862 | 880–960 | 694–960 | 1695–1880 | 2300–2400 | 2490–2690 | 1695–2180 | 2490–2690 | 1427–1518 |
| Gain, dBi | 15.4 | 15.7 | 16.2 | 15.7 | 17.4 | 17.6 | 17.0 | 17.9 | 15.4 |
| Beamwidth, Horizontal, degrees | 68 | 64 | 67 | 69 | 58 | 55 | 64 | 57 | 65 |
| Beamwidth, Vertical, degrees | 8.5 | 7.3 | 8.1 | 7.3 | 5.8 | 5.3 | 7.1 | 5.3 | 9.5 |
| Beam Tilt, degrees | 2–14 | 2–14 | 2–14 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 18 | 21 | 18 | 17 | 17 | 19 | 17 | 21 | 20 |
| Front-to-Back Ratio at 180°, dB | 31 | 27 | 28 | 32 | 29 | 29 | 33 | 32 | 35 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 200 | 200 | 200 | 200 | 200 | 150 | 200 | 200 | 200 |
Electrical specifications, basta
| Frequency Band, MHz | 694–862 | 880–960 | 694–960 | 1695–1880 | 2300–2400 | 2490–2690 | 1695–2180 | 2490–2690 | 1427–1518 |
| Gain by all Beam Tilts, average, dBi | 15.1 | 15.3 | 15.8 | 15.3 | 17.0 | 17.4 | 16.1 | 17.4 | 15.1 |
| Gain by all Beam Tilts Tolerance, dB | ±0.4 | ±0.4 | ±0.6 | ±0.5 | ±0.4 | ±0.4 | ±1.1 | ±0.7 | ±0.4 |
| Gain by Beam Tilt, average, dBi | 2 ° | 15.0; 8 ° | 15.2;14 ° | 14.9 | 2 ° | 15.2; 8 ° | 15.5;14 ° | 15.0 | 2 ° | 15.7; 8 ° | 15.9;14 ° | 15.5 | 2 ° | 15.2; 7 ° | 15.4;12 ° | 15.1 | 2 ° | 16.7; 7 ° | 17.0;12 ° | 17.1 | 2 ° | 17.0; 7 ° | 17.6;12 ° | 17.3 | 2 ° | 16.0; 7 ° | 16.2;12 ° | 16.0 | 2 ° | 17.1; 7 ° | 17.6;12 ° | 17.2 | 2 ° | 14.9; 7 ° | 15.1;12 ° | 15.3 |
| Beamwidth, Horizontal Tolerance, degrees | ±6.7 | ±4.0 | ±6.2 | ±6.1 | ±3.1 | ±6.4 | ±8.2 | ±6 | ±8.5 |
| Beamwidth, Vertical Tolerance, degrees | ±0.8 | ±0.4 | ±1.1 | ±0.7 | ±0.3 | ±0.3 | ±1 | ±0.3 | ±0.6 |
| USLS, beampeak to 20° above beampeak, dB | 14 | 14 | 16 | 14 | 14 | 14 | 16 | 16 | 17 |
| Front-to-Back Total Power at 180° ± 30°, dB | 21 | 22 | 22 | 25 | 23 | 24 | 26 | 26 | 25 |
| CPR at Boresight, dB | 19 | 17 | 18 | 16 | 18 | 20 | 18 | 19 | 17 |
| CPR at Sector, dB | 8 | 12 | 11 | 8 | 6 | 5 | 6 | 3 | 3 |
Mechanical specifications
| Mechanical Tilt Range | 2°–12° |
| Wind Loading @ Velocity, frontal | 1,070.0 N @ 150 km/h (240.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 375.0 N @ 150 km/h (84.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,385.0 N @ 150 km/h (311.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 880.0 N @ 150 km/h (197.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 565 mm | 22.244 in |
| Depth, packed | 309 mm | 12.165 in |
| Length, packed | 2935 mm | 115.551 in |
| Weight, gross | 88.6 kg | 195.329 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
