This product was discontinued on: March 31, 2023

For other alternatives, please contact us for more information.

1 Replacement products available
  • RRVV-65B-R4-V2
    8-port sector antenna, 4x 694–960 and 4x 1695–2690 MHz, 65° HPBW, 4x RET

CCVVPX308.11R-C3

8-port sector antenna, 4x 790–960 and 4x 1695–2690 MHz, 65° HPBW, 4x RET with manual override. Bands cascaded SRET.

Finish making your selections or clear them to view relevant specifications.
Features and benefits
  • Integrated Internal Remote Electrical Tilt (RET), with independent control of electrical tilt with manual override on all arrays
  • All Internal RET actuators are connected in “Cascaded SRET” configuration
  • The RET interface comprises one pair of AISG input/output ports
  • Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector

General specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 4
RF Connector Quantity, total 8

Remote electrical tilt (ret) information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (2) | Low band (2)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2100 mm | 82.677 in
Net Weight, without mounting kit 39 kg | 85.98 lb

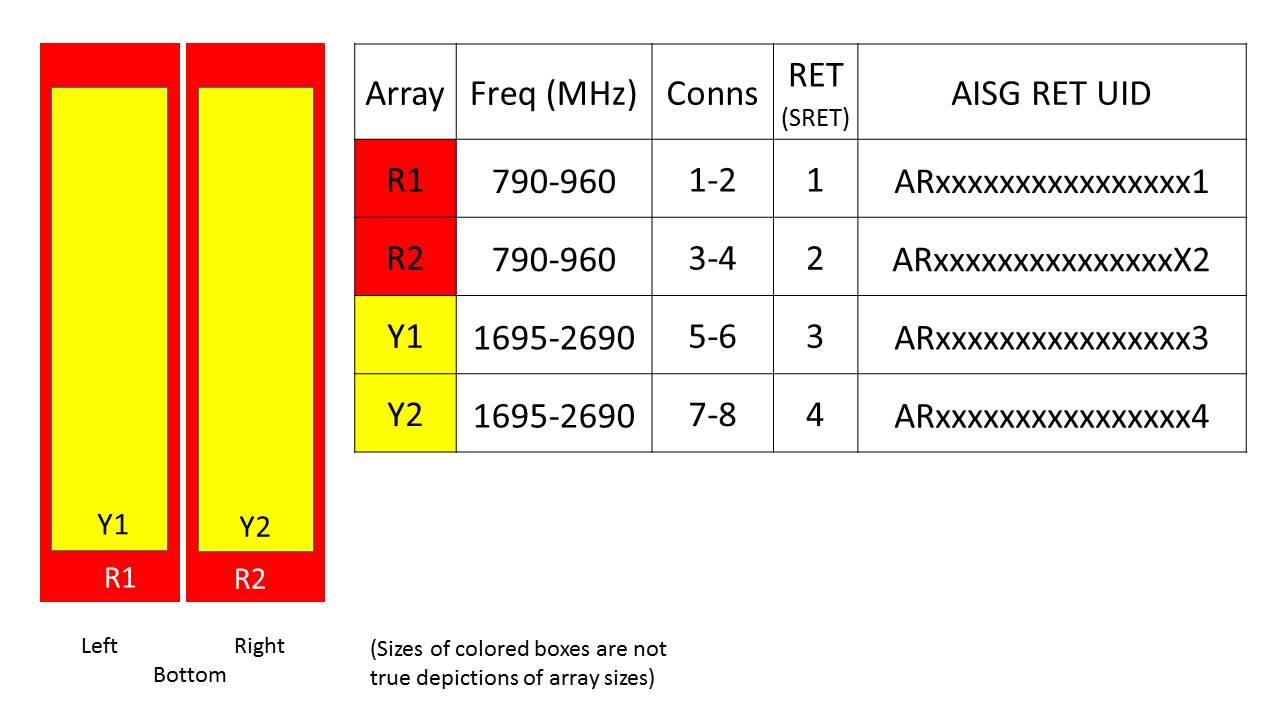

Array layout

Click on image to enlarge.

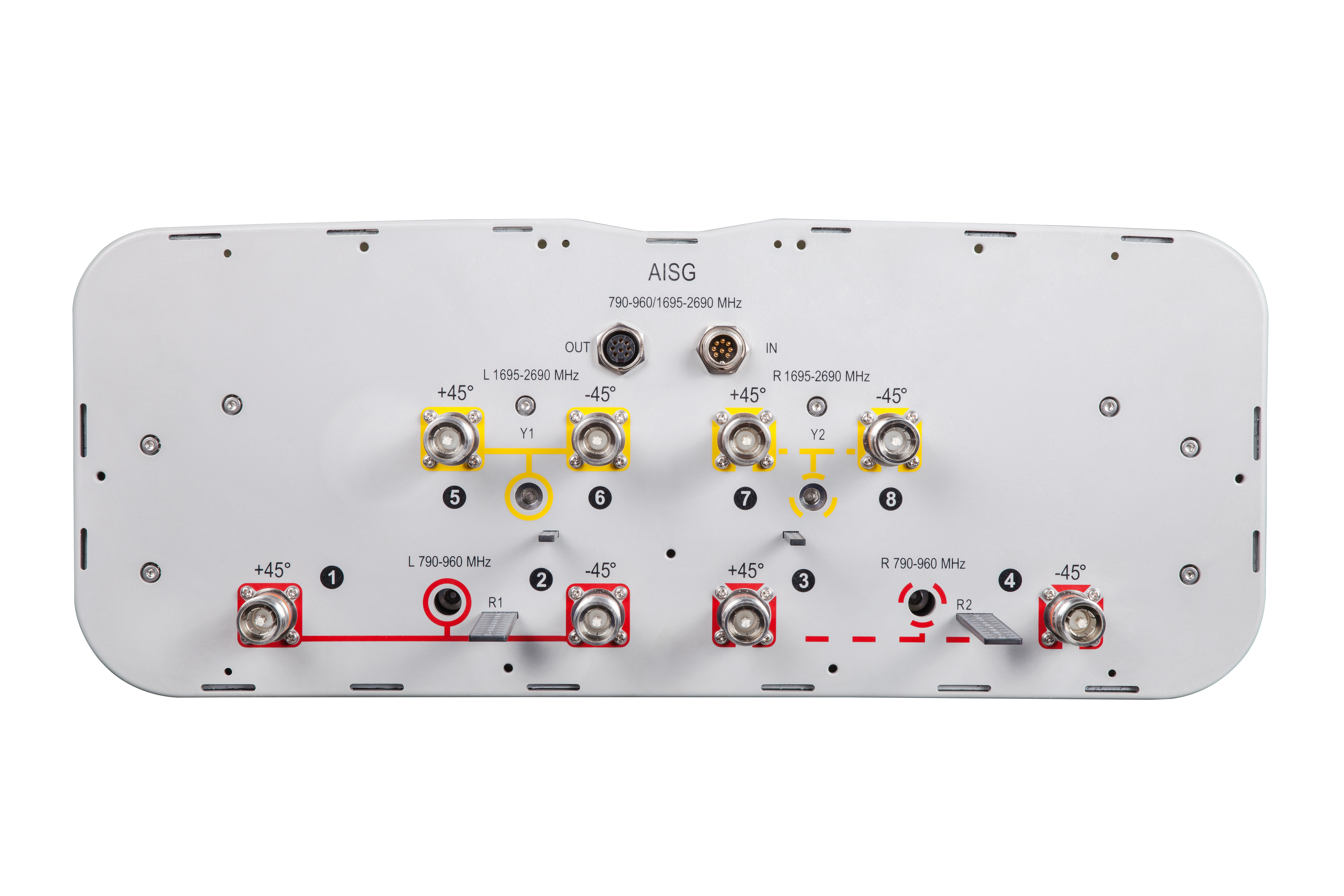

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 790 – 960 MHz | 1695 – 2690 MHz
Polarization ±45°

Electrical specifications

Frequency Band, MHz 790–862 880–960 1695–1880 1850–1990 1920–2180 2300–2500 2500–2690
Gain, dBi 14.9 15.6 16.6 16.8 17.4 18.1 18.2
Beamwidth, Horizontal, degrees 74 63 63 66 68 62 63
Beamwidth, Vertical, degrees 11.3 10.2 7.6 7 6.6 5.6 5.2
Beam Tilt, degrees 0–10 0–10 0–10 0–10 0–10 0–10 0–10
USLS (First Lobe), dB 18 18 18 18 18 18 18
Front-to-Back Ratio at 180°, dB 35 35 34 38 40 39 40
CPR at Boresight, dB 20 18 20 20 18 16 18
Isolation, Cross Polarization, dB 28 28 28 28 28 28 28
Isolation, Inter-band, dB 28 28 28 28 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150
Input Power per Port, maximum, watts 300 300 250 250 250 250 250

Mechanical specifications

Wind Loading @ Velocity, frontal 803.0 N @ 150 km/h (180.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 275.0 N @ 150 km/h (61.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,040.0 N @ 150 km/h (233.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 661.0 N @ 150 km/h (148.6 lbf @ 150 km/h)
Wind Speed, maximum 200 km/h (124 mph)

Packaging and weights

Width, packed 565 mm | 22.244 in
Depth, packed 312 mm | 12.283 in
Length, packed 2286 mm | 90 in
Weight, gross 60 kg | 132.277 lb

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

General specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 4
RF Connector Quantity, total 8

Remote electrical tilt (ret) information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (2) | Low band (2)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2100 mm | 82.677 in
Net Weight, without mounting kit 39 kg | 85.98 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 790 – 960 MHz | 1695 – 2690 MHz
Polarization ±45°

Electrical specifications

Frequency Band, MHz 790–862 880–960 1695–1880 1850–1990 1920–2180 2300–2500 2500–2690
Gain, dBi 14.9 15.6 16.6 16.8 17.4 18.1 18.2
Beamwidth, Horizontal, degrees 74 63 63 66 68 62 63
Beamwidth, Vertical, degrees 11.3 10.2 7.6 7 6.6 5.6 5.2
Beam Tilt, degrees 0–10 0–10 0–10 0–10 0–10 0–10 0–10
USLS (First Lobe), dB 18 18 18 18 18 18 18
Front-to-Back Ratio at 180°, dB 35 35 34 38 40 39 40
CPR at Boresight, dB 20 18 20 20 18 16 18
Isolation, Cross Polarization, dB 28 28 28 28 28 28 28
Isolation, Inter-band, dB 28 28 28 28 28 28 28
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150
Input Power per Port, maximum, watts 300 300 250 250 250 250 250

Mechanical specifications

Wind Loading @ Velocity, frontal 803.0 N @ 150 km/h (180.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 275.0 N @ 150 km/h (61.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,040.0 N @ 150 km/h (233.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 661.0 N @ 150 km/h (148.6 lbf @ 150 km/h)
Wind Speed, maximum 200 km/h (124 mph)

Packaging and weights

Width, packed 565 mm | 22.244 in
Depth, packed 312 mm | 12.283 in
Length, packed 2286 mm | 90 in
Weight, gross 60 kg | 132.277 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
