4P-4M-B2
4-port sector antenna, 4x 1695–2690 MHz, 65° HPBW, 2x RET
Features and benefits
- All Internal RET actuators are connected in “Cascaded SRET” configuration
- Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector
Specifications
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 257 mm | 10.118 in |
| Depth | 87 mm | 3.425 in |
| Length | 1757 mm | 69.173 in |
| Net Weight, antenna only | 12.5 kg | 27.558 lb |

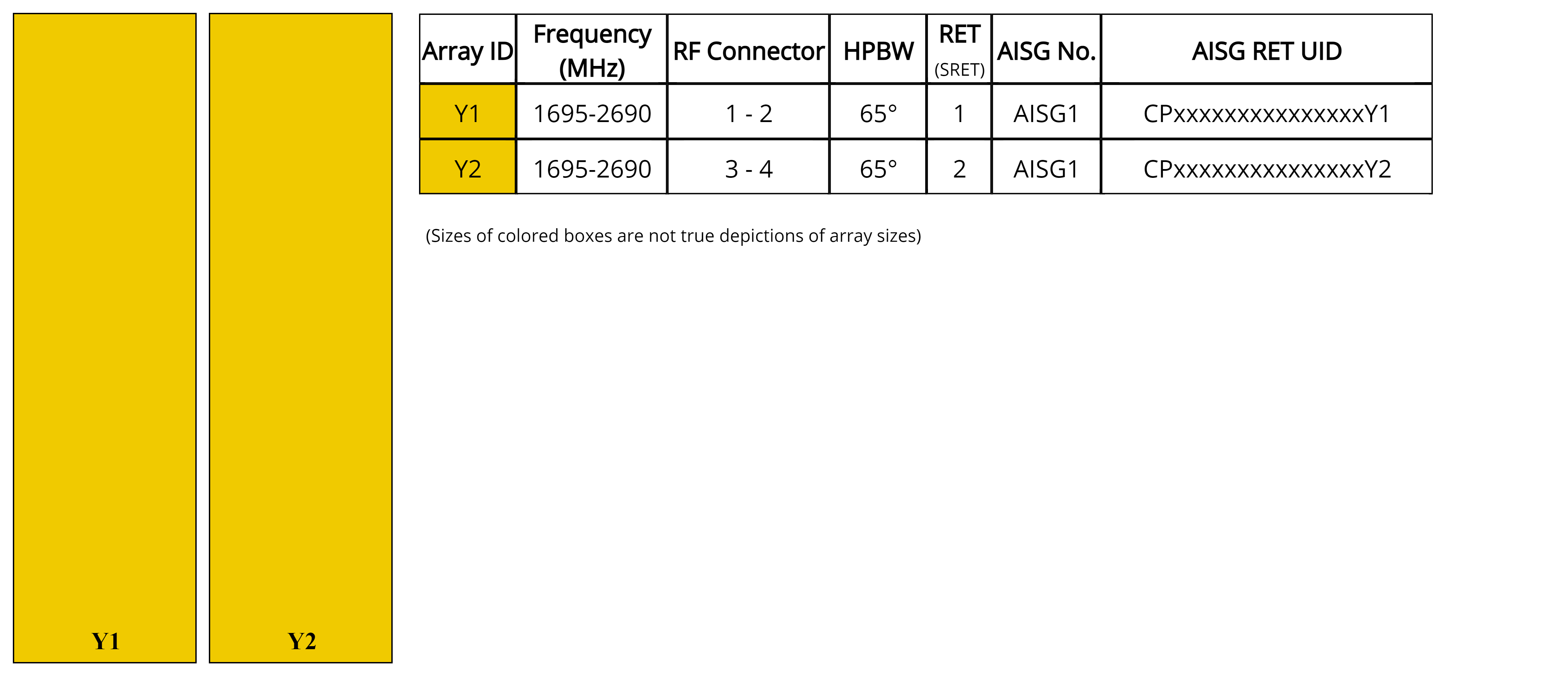

Array layout
| Click on image to enlarge. |

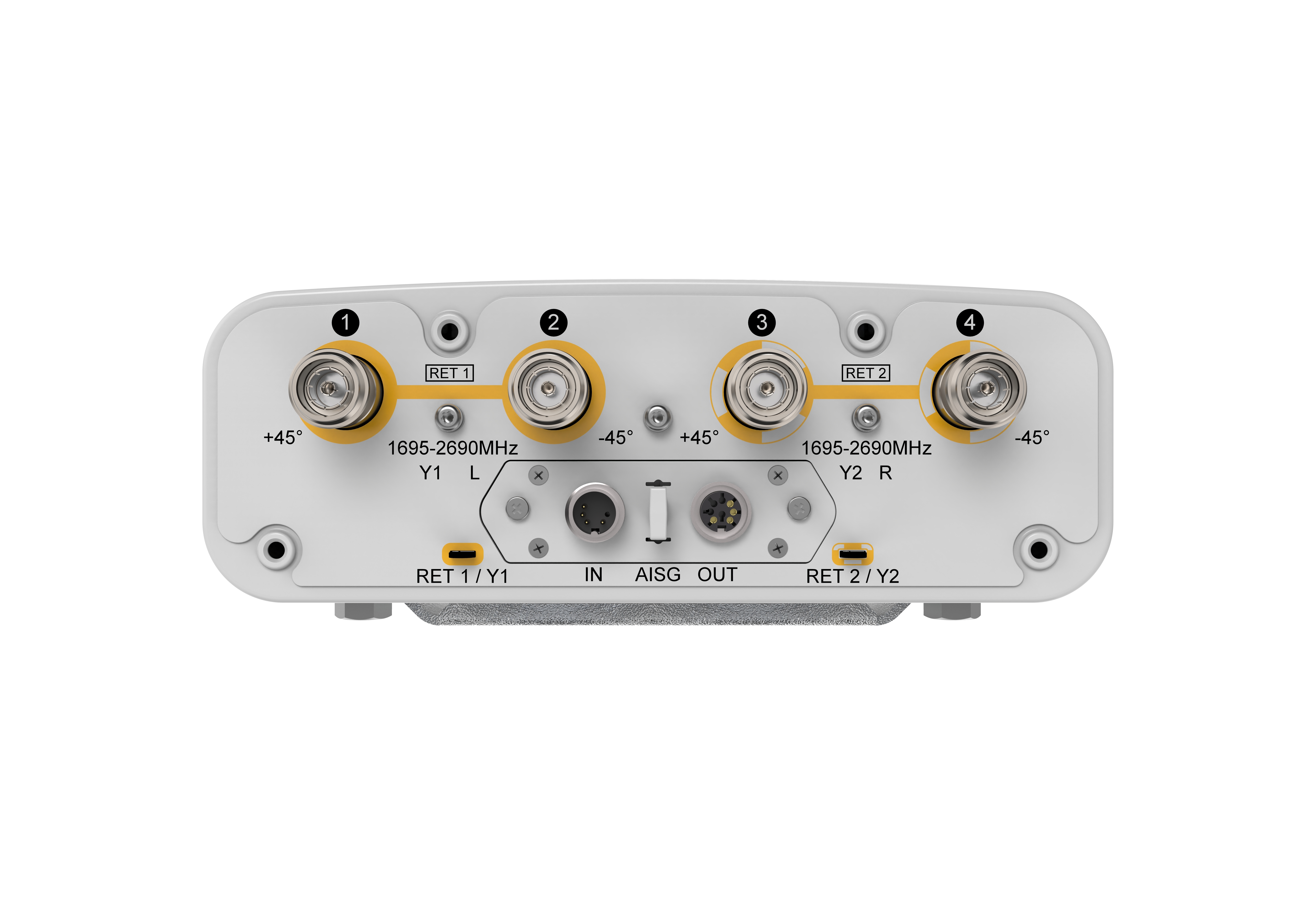

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 500 W |
Electrical specifications
| Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2500 | 2490–2690 |
| RF Port | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 |
| Gain, dBi | 18.2 | 18.6 | 18.9 | 18.8 | 18.8 |
| Beamwidth, Horizontal, degrees | 67 | 64 | 64 | 61 | 57 |
| Beamwidth, Vertical, degrees | 5.7 | 5.4 | 5.1 | 4.3 | 4 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 19 | 21 | 21 | 20 | 18 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 30 | 32 | 32 | 32 | 32 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 | 200 | 200 |
Electrical specifications, basta
| Frequency Band, MHz | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2500 | 2490–2690 |
| Gain by all Beam Tilts, average, dBi | 17.8 | 18.4 | 18.6 | 18.5 | 18.5 |
| Gain by all Beam Tilts Tolerance, dB | ±0.6 | ±0.4 | ±0.4 | ±0.7 | ±0.5 |
| Beamwidth, Horizontal Tolerance, degrees | ±3.9 | ±1.7 | ±2.1 | ±4.5 | ±2.1 |
| Beamwidth, Vertical Tolerance, degrees | ±0.2 | ±0.2 | ±0.4 | ±0.2 | ±0.2 |
| USLS, beampeak to 20° above beampeak, dB | 17 | 18 | 17 | 14 | 14 |
| Front-to-Back Total Power at 180° ± 30°, dB | 24 | 27 | 28 | 28 | 29 |
| CPR at Boresight, dB | 31 | 34 | 34 | 26 | 23 |
| CPR at Sector, dB | 11 | 12 | 13 | 10 | 8 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 368.0 N @ 150 km/h (82.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 95.0 N @ 150 km/h (21.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 315.0 N @ 150 km/h (70.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 352 mm | 13.858 in |
| Depth, packed | 207 mm | 8.150 in |
| Length, packed | 1937 mm | 76.260 in |
| Weight, gross | 20 kg | 44.092 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 257 mm | 10.118 in |
| Depth | 87 mm | 3.425 in |
| Length | 1757 mm | 69.173 in |
| Net Weight, antenna only | 12.5 kg | 27.558 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 500 W |
Electrical specifications
| Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2500 | 2490–2690 |
| RF Port | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 |
| Gain, dBi | 18.2 | 18.6 | 18.9 | 18.8 | 18.8 |
| Beamwidth, Horizontal, degrees | 67 | 64 | 64 | 61 | 57 |
| Beamwidth, Vertical, degrees | 5.7 | 5.4 | 5.1 | 4.3 | 4 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 19 | 21 | 21 | 20 | 18 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 30 | 32 | 32 | 32 | 32 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 | 200 | 200 |
Electrical specifications, basta
| Frequency Band, MHz | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2500 | 2490–2690 |
| Gain by all Beam Tilts, average, dBi | 17.8 | 18.4 | 18.6 | 18.5 | 18.5 |
| Gain by all Beam Tilts Tolerance, dB | ±0.6 | ±0.4 | ±0.4 | ±0.7 | ±0.5 |
| Beamwidth, Horizontal Tolerance, degrees | ±3.9 | ±1.7 | ±2.1 | ±4.5 | ±2.1 |
| Beamwidth, Vertical Tolerance, degrees | ±0.2 | ±0.2 | ±0.4 | ±0.2 | ±0.2 |
| USLS, beampeak to 20° above beampeak, dB | 17 | 18 | 17 | 14 | 14 |
| Front-to-Back Total Power at 180° ± 30°, dB | 24 | 27 | 28 | 28 | 29 |
| CPR at Boresight, dB | 31 | 34 | 34 | 26 | 23 |
| CPR at Sector, dB | 11 | 12 | 13 | 10 | 8 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 368.0 N @ 150 km/h (82.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 95.0 N @ 150 km/h (21.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 315.0 N @ 150 km/h (70.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 352 mm | 13.858 in |
| Depth, packed | 207 mm | 8.150 in |
| Length, packed | 1937 mm | 76.260 in |
| Weight, gross | 20 kg | 44.092 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
