This product was discontinued on: March 31, 2023

1 Replacement products available

2HH-33A-R4

8-port multibeam antenna, 8x 1695–2400 MHz, 4x 38° HPBW, 4x RET with retractable tilt rods

Finish making your selections or clear them to view relevant specifications.

Features and benefits

Enhances network capacity through six sectors site application with only three antenna faces
Maximizes frequency spectrum utilization to increase Average Revenue Per User (ARPU)
Reduces antenna count to minimize Cap-Ex and Op-Ex costs
High gain with excellent sector edge roll-off and azimuth sidelobe suppression
Each antenna downtilt can be independently adjusted for greater flexibility in network optimization
Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios (Supports_r)

Specifications

General specifications

Antenna Type	Multibeam
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	Fiberglass, UV resistant
Radiator Material	Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female

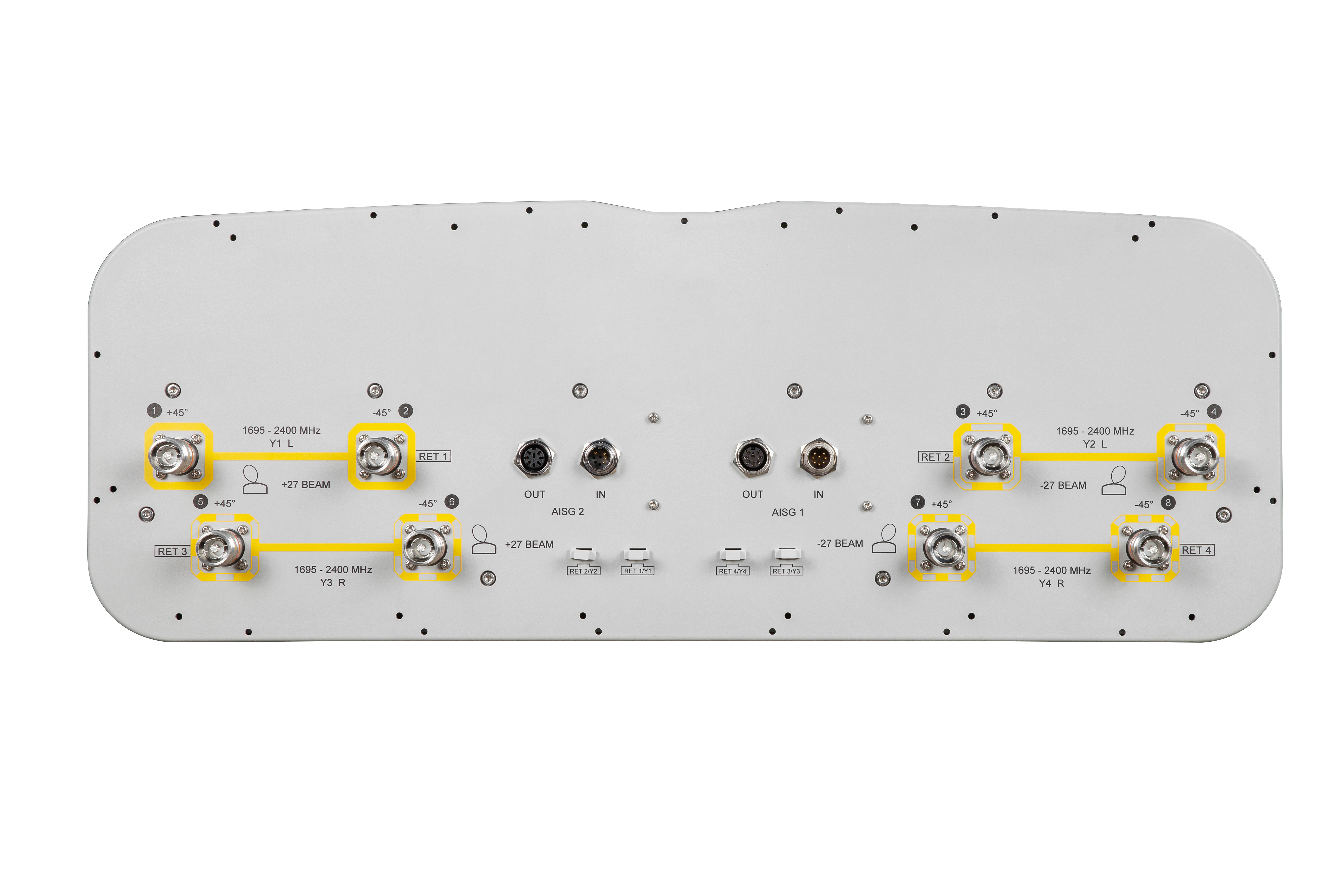

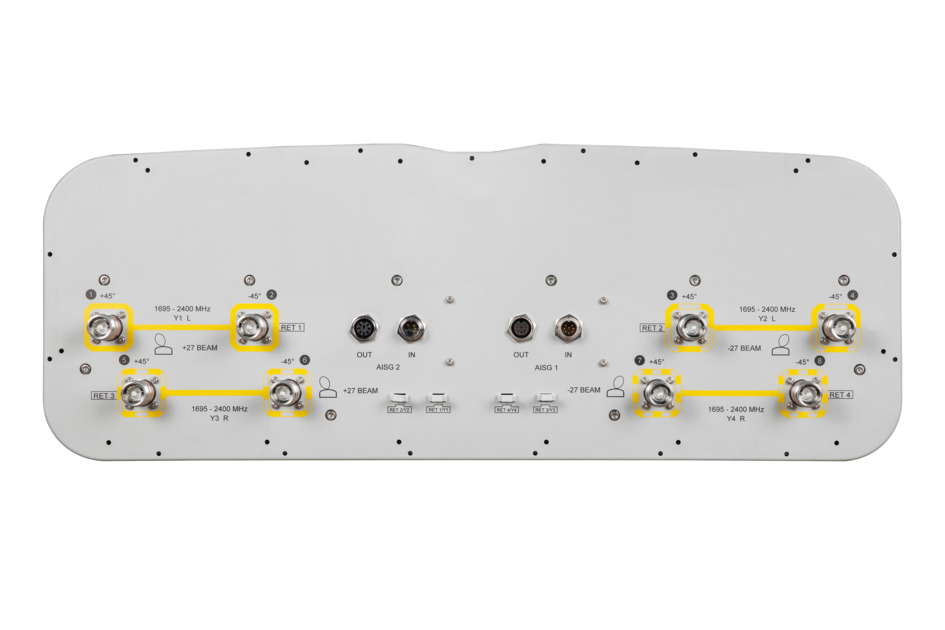

RF Connector Location	Bottom
RF Connector Quantity, high band	8
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	0
RF Connector Quantity, total	8

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	2 female \| 2 male
Input Voltage	10–30 Vdc
Internal RET	High band (4)
Power Consumption, idle state, maximum	1 W
Power Consumption, normal conditions, maximum	8 W
Protocol	3GPP/AISG 2.0 (Single RET)

Width	640 mm \| 25.197 in
Depth	235 mm \| 9.252 in
Length	1350 mm \| 53.15 in
Net Weight, without mounting kit	30.8 kg \| 67.902 lb

Click on image to enlarge.

Click on image to enlarge.

Frequency Band, MHz	1695–1880	1850–1990	1920–2180	2300–2400
Gain, dBi	19.1	19.7	19.9	19.4
Beam Centers, Horizontal, degrees	±27	±27	±27	±27
Beamwidth, Horizontal, degrees	38	36	33	29
Beamwidth, Vertical, degrees	7.4	7	6.6	5.9
Beam Tilt, degrees	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	19	20	19	17
Front-to-Back Ratio at 180°, dB	37	37	35	33
CPR at Boresight, dB	21	22	19	13
Isolation, Cross Polarization, dB	28	28	28	28
Isolation, Inter-band, dB	16	16	16	16
VSWR \| Return loss, dB	1.46 \| 14.5	1.46 \| 14.5	1.46 \| 14.5	1.46 \| 14.5
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150	-150
Input Power per Port at 50°C, maximum, watts	200	200	200	200

Mechanical Tilt Range	0°–24°
Wind Loading @ Velocity, frontal	557.0 N @ 150 km/h (125.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	175.0 N @ 150 km/h (39.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	759.0 N @ 150 km/h (170.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	574.0 N @ 150 km/h (129.0 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
