of 562 results found
View:

Filters

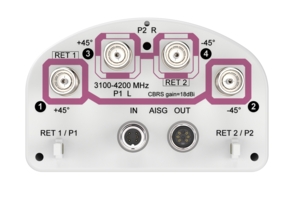

SS-65M-R2 SS-65M-R2
4-port sector antenna, 4x 3100-4200 MHz, 65°HPBW , 2x RET
SS-65M-R2
  • Product type: Sector antenna
  • Operating frequency band range: 3100 – 5000 MHz
  • Horizontal beamwidth: 65°
  • Length size: 0.7 m (2 ft)
  • Width/diameter: ≤ 200 mm
  • Rf connector interface: 4.3-10 Female
  • Rf connector quantity, total: 4
  • Rf connector quantity, high band: 4
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 0
SpecificationsSpecs
SS-65M-R2
  • Product type: Sector antenna
  • Operating frequency band range: 3100 – 5000 MHz
  • Horizontal beamwidth: 65°
  • Length size: 0.7 m (2 ft)
  • Width/diameter: ≤ 200 mm
  • Rf connector interface: 4.3-10 Female
  • Rf connector quantity, total: 4
  • Rf connector quantity, high band: 4
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 0
SS-65T-F SS-65T-F
4-port small cell antenna, 4x 3300–4200 MHz, 65° HPBW, fixed electrical tilt
SS-65T-F
  • Product type: Sector antenna | Small cell antenna
  • Operating frequency band range: 3100 – 5000 MHz
  • Horizontal beamwidth: 65°
  • Length size: <0.7 m (2 ft)
  • Width/diameter: ≤ 200 mm
  • Rf connector interface: NEX10 Female
  • Rf connector quantity, total: 4
  • Rf connector quantity, high band: 4
SpecificationsSpecs
SS-65T-F
  • Product type: Sector antenna | Small cell antenna
  • Operating frequency band range: 3100 – 5000 MHz
  • Horizontal beamwidth: 65°
  • Length size: <0.7 m (2 ft)
  • Width/diameter: ≤ 200 mm
  • Rf connector interface: NEX10 Female
  • Rf connector quantity, total: 4
  • Rf connector quantity, high band: 4
SSPX310R-V2 SSPX310R-V2
4-port sector antenna, 4x 3300–3800 MHz, 65° HPBW, 2x RET with manual override
SSPX310R-V2
  • Product type: Sector antenna
  • Operating frequency band range: 3100 – 5000 MHz
  • Horizontal beamwidth: 65°
  • Length size: 0.7 m (2 ft)
  • Width/diameter: 201 – 305 mm
  • Rf connector interface: 4.3-10 Female
  • Rf connector quantity, total: 4
  • Rf connector quantity, high band: 4
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 0
SpecificationsSpecs
SSPX310R-V2
  • Product type: Sector antenna
  • Operating frequency band range: 3100 – 5000 MHz
  • Horizontal beamwidth: 65°
  • Length size: 0.7 m (2 ft)
  • Width/diameter: 201 – 305 mm
  • Rf connector interface: 4.3-10 Female
  • Rf connector quantity, total: 4
  • Rf connector quantity, high band: 4
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 0
T4-90A-R1-V2 T4-90A-R1-V2
Planar Array Antenna, 2300–2690 MHz, 90° HPBW, 1xIntRET
T4-90A-R1-V2
  • Product type: Beamforming antenna
  • Operating frequency band range: 1427 – 2700 MHz
  • Horizontal beamwidth: 90°
  • Length size: 1.3 m (4 ft)
  • Width/diameter: 201 – 305 mm
  • Rf connector interface: 4.3-10 Female
  • Rf connector quantity, total: 8
  • Rf connector quantity, high band: 8
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 0
SpecificationsSpecs
T4-90A-R1-V2
  • Product type: Beamforming antenna
  • Operating frequency band range: 1427 – 2700 MHz
  • Horizontal beamwidth: 90°
  • Length size: 1.3 m (4 ft)
  • Width/diameter: 201 – 305 mm
  • Rf connector interface: 4.3-10 Female
  • Rf connector quantity, total: 8
  • Rf connector quantity, high band: 8
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 0
T4-90A-R1-V6 T4-90A-R1-V6
Planar Array Antenna, 2300–2690 MHz, 90° HPBW, 1xIntRET
T4-90A-R1-V6
  • Product type: Beamforming antenna
  • Operating frequency band range: 1427 – 2700 MHz
  • Horizontal beamwidth: 90°
  • Length size: 1.3 m (4 ft)
  • Width/diameter: 306 – 353 mm
  • Rf connector interface: 4.3-10 Female
  • Rf connector quantity, total: 8
  • Rf connector quantity, high band: 8
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 0
SpecificationsSpecs
T4-90A-R1-V6
  • Product type: Beamforming antenna
  • Operating frequency band range: 1427 – 2700 MHz
  • Horizontal beamwidth: 90°
  • Length size: 1.3 m (4 ft)
  • Width/diameter: 306 – 353 mm
  • Rf connector interface: 4.3-10 Female
  • Rf connector quantity, total: 8
  • Rf connector quantity, high band: 8
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 0
T4-90B-R1-V4 T4-90B-R1-V4
8-Port Beamforming Antenna, 2300–2690 MHz, 1xRET
T4-90B-R1-V4
  • Product type: Beamforming antenna
  • Operating frequency band range: 1427 – 2700 MHz
  • Horizontal beamwidth: 90°
  • Length size: 2.0 m (6 ft)
  • Width/diameter: 354 – 457 mm
  • Rf connector interface: M-LOC
  • Rf connector quantity, total: 8
  • Rf connector quantity, high band: 8
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 0
SpecificationsSpecs
T4-90B-R1-V4
  • Product type: Beamforming antenna
  • Operating frequency band range: 1427 – 2700 MHz
  • Horizontal beamwidth: 90°
  • Length size: 2.0 m (6 ft)
  • Width/diameter: 354 – 457 mm
  • Rf connector interface: M-LOC
  • Rf connector quantity, total: 8
  • Rf connector quantity, high band: 8
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 0
T4S4-90A-R2 T4S4-90A-R2
16-port Planar Array Antenna, 8x 2300–2690 and 8x 3300-3800 MHz, 90° HPBW, 2x RET
T4S4-90A-R2
  • Product type: Beamforming antenna
  • Operating frequency band range: 1427 – 2700 MHz | 3100 – 5000 MHz
  • Horizontal beamwidth: 90°
  • Length size: 1.3 m (4 ft)
  • Width/diameter: 458 – 498 mm
  • Rf connector interface: 4.3-10 Female
  • Rf connector quantity, total: 16
  • Rf connector quantity, high band: 16
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 0
SpecificationsSpecs
T4S4-90A-R2
  • Product type: Beamforming antenna
  • Operating frequency band range: 1427 – 2700 MHz | 3100 – 5000 MHz
  • Horizontal beamwidth: 90°
  • Length size: 1.3 m (4 ft)
  • Width/diameter: 458 – 498 mm
  • Rf connector interface: 4.3-10 Female
  • Rf connector quantity, total: 16
  • Rf connector quantity, high band: 16
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 0
T4S4-90A-R2-V3 T4S4-90A-R2-V3
16-port Planar Array Antenna, 8x 2300–2690 and 8x 3300-3800MHz, 90° HPBW, 2x RET
T4S4-90A-R2-V3
  • Product type: Beamforming antenna
  • Operating frequency band range: 1427 – 2700 MHz | 3100 – 5000 MHz
  • Horizontal beamwidth: 90°
  • Length size: 1.3 m (4 ft)
  • Width/diameter: 458 – 498 mm
  • Rf connector interface: M-LOC
  • Rf connector quantity, total: 16
  • Rf connector quantity, high band: 16
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 0
SpecificationsSpecs
T4S4-90A-R2-V3
  • Product type: Beamforming antenna
  • Operating frequency band range: 1427 – 2700 MHz | 3100 – 5000 MHz
  • Horizontal beamwidth: 90°
  • Length size: 1.3 m (4 ft)
  • Width/diameter: 458 – 498 mm
  • Rf connector interface: M-LOC
  • Rf connector quantity, total: 16
  • Rf connector quantity, high band: 16
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 0
T4S4-90A-R2-V4 T4S4-90A-R2-V4
16-port Planar Array Antenna, 8x 2300–2690 and 8x 3300-3800MHz, 90° HPBW, 2x RET
T4S4-90A-R2-V4
  • Product type: Beamforming antenna
  • Operating frequency band range: 1427 – 2700 MHz | 3100 – 5000 MHz
  • Horizontal beamwidth: 90°
  • Length size: 1.3 m (4 ft)
  • Width/diameter: 458 – 498 mm
  • Rf connector interface: MQ4 | MQ5
  • Rf connector quantity, total: 16
  • Rf connector quantity, high band: 8
  • Rf connector quantity, mid band: 8
  • Rf connector quantity, low band: 0
SpecificationsSpecs
T4S4-90A-R2-V4
  • Product type: Beamforming antenna
  • Operating frequency band range: 1427 – 2700 MHz | 3100 – 5000 MHz
  • Horizontal beamwidth: 90°
  • Length size: 1.3 m (4 ft)
  • Width/diameter: 458 – 498 mm
  • Rf connector interface: MQ4 | MQ5
  • Rf connector quantity, total: 16
  • Rf connector quantity, high band: 8
  • Rf connector quantity, mid band: 8
  • Rf connector quantity, low band: 0
UNA008R-V2 UNA008R-V2
1-port omni antenna, 694–896 MHz, 360° HPBW, 1x RET with manual override. Ships with F-129-S4 mounting kit.
UNA008R-V2
  • Product type: Omnidirectional antenna
  • Operating frequency band range: 575 – 960 MHz
  • Horizontal beamwidth: 360°
  • Length size: 2.5 m (8 ft)
  • Width/diameter: ≤ 200 mm
  • Rf connector interface: 7-16 DIN Female
  • Rf connector quantity, total: 1
  • Rf connector quantity, high band: 0
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 1
SpecificationsSpecs
UNA008R-V2
  • Product type: Omnidirectional antenna
  • Operating frequency band range: 575 – 960 MHz
  • Horizontal beamwidth: 360°
  • Length size: 2.5 m (8 ft)
  • Width/diameter: ≤ 200 mm
  • Rf connector interface: 7-16 DIN Female
  • Rf connector quantity, total: 1
  • Rf connector quantity, high band: 0
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 1
UNA010F-0-V2 UNA010F-0-V2
1-port omni antenna, 694–896 MHz, 360° HPBW, fixed tilt
UNA010F-0-V2
  • Product type: Omnidirectional antenna
  • Operating frequency band range: 575 – 960 MHz
  • Horizontal beamwidth: 360°
  • Length size: 2.5 m (8 ft) | 3.0 m (10 ft)+
  • Width/diameter: ≤ 200 mm
  • Rf connector interface: 7-16 DIN Female
  • Rf connector quantity, total: 1
  • Rf connector quantity, high band: 0
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 1
SpecificationsSpecs
UNA010F-0-V2
  • Product type: Omnidirectional antenna
  • Operating frequency band range: 575 – 960 MHz
  • Horizontal beamwidth: 360°
  • Length size: 2.5 m (8 ft) | 3.0 m (10 ft)+
  • Width/diameter: ≤ 200 mm
  • Rf connector interface: 7-16 DIN Female
  • Rf connector quantity, total: 1
  • Rf connector quantity, high band: 0
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 1
UNA010FI-0-V2 UNA010FI-0-V2
1-port inverted omni antenna, 694–896 MHz, 360° HPBW, fixed tilt
UNA010FI-0-V2
  • Product type: Omnidirectional antenna
  • Operating frequency band range: 575 – 960 MHz
  • Horizontal beamwidth: 360°
  • Length size: 2.5 m (8 ft) | 3.0 m (10 ft)+
  • Width/diameter: ≤ 200 mm
  • Rf connector interface: 7-16 DIN Female
  • Rf connector quantity, total: 1
  • Rf connector quantity, high band: 0
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 1
SpecificationsSpecs
UNA010FI-0-V2
  • Product type: Omnidirectional antenna
  • Operating frequency band range: 575 – 960 MHz
  • Horizontal beamwidth: 360°
  • Length size: 2.5 m (8 ft) | 3.0 m (10 ft)+
  • Width/diameter: ≤ 200 mm
  • Rf connector interface: 7-16 DIN Female
  • Rf connector quantity, total: 1
  • Rf connector quantity, high band: 0
  • Rf connector quantity, mid band: 0
  • Rf connector quantity, low band: 1
Compare
